Stainless Steel Push To Connect Fittings: Complete line of all metal push to connect fittings Download Catalog
Click product picture that is of interest to you to get more information.

Collet Style   Gripper Style   Custom-Made Fittings

  Stainless Steel Bulkhead Connector

Stainless Branch Tee Push In Fitting

 Stainless Steel Female Connector Stainless Steel Male Connector STAINLESS STEEL PUSH IN FITTING Stainless Steel Run Tee Push In Fitting
BULKHEAD CONNECTOR BRANCH TEE CONNECTOR SWIVEL FEMALE CONNECTOR MALE CONNECTOR ELBOW CONNECTOR SWIVEL RUN TEE CONNECTOR SWIVEL
Tube OD Pipe Size Part No. Unit Price  Part No.  Unit Price  Part No.  Unit Price  Part No.  Unit Price  Part No.  Unit Price  Part No. Unit Price

1/8

 10-32UNF BCS 1/8 10-32W $23.82 BTS 1/8 10-32W $24.69 FCS 1/8 10-32W $10.25 MCS 1/8 10-32W $8.79 MES 1/8 10-32W $17.48 RTS 1/8 10-32W $24.69

1/8

 NPT1/8 BCS 1/8 N1/8W $23.82 BTS 1/8 N1/8W $24.69 FCS 1/8 N1/8W $10.25 MCS 1/8 N1/8W $8.79 MES 1/8 N1/8W $17.48 RTS 1/8 N1/8W $24.69

1/8

 NPT1/4 BCS 1/8 N1/4W $26.36 BTS 1/8 N1/4W $25.94 FCS 1/8 N1/4W $14.39 MCS 1/8 N1/4W $9.22 MES 1/8 N1/4W $21.00 RTS 1/8 N1/4W $25.94

5/32

 10-32UNF BCS 5/32 10-32W $23.82 BTS 5/32 10-32W $24.69 FCS 5/32 10-32W $10.25 MCS 5/32 10-32W $8.79 MES 5/32 10-32W $17.47 RTS 5/32 10-32W $24.69

5/32

 NPT1/8 BCS 5/32 N1/8W $23.82 BTS 5/32 N1/8W $24.69 FCS 5/32 N1/8W $10.25 MCS 5/32 N1/8W $8.79 MES 5/32 N1/8W $17.47 RTS 5/32 N1/8W $24.69

5/32

 NPT1/4 BCS 5/32 N1/4W $26.36 BTS 5/32 N1/4W $27.22 FCS 5/32 N1/4W $13.69 MCS 5/32 N1/4W $8.79 MES 5/32 N1/4W $17.47 RTS 5/32 N1/4W $27.22

1/4

 10-32UNF BCS 1/4 10-32W $27.03 BTS 1/4 10-32W $24.69 FCS 1/4 10-32W $10.25 MCS 1/4 10-32W $8.79 MES 1/4 10-32W $18.60 RTS 1/4 10-32W $24.69

1/4

 NPT1/8 BCS 1/4 N1/8W $27.03 BTS 1/4 N1/8W $24.69 FCS 1/4 N1/8W $10.25 MCS 1/4 N1/8W $8.79 MES 1/4 N1/8W $18.61 RTS 1/4 N1/8W $24.69

1/4

 NPT1/4 BCS 1/4 N1/4W $27.03 BTS 1/4 N1/4W $28.38 FCS 1/4 N1/4W $10.25 MCS 1/4 N1/4W $8.797 MES 1/4 N1/4W $20.11 RTS 1/4 N1/4W $28.38

1/4

 NPT3/8 BCS 1/4 N3/8W $28.29 BTS 1/4 N3/8W $32.37 FCS 1/4 N3/8W $11.04 MCS 1/4 N3/8W $9.58 MES 1/4 N3/8W $20.92 RTS 1/4 N3/8W $32.37

5/16

 NPT1/8 BCS 5/16 N1/8W $28.29 BTS 5/16 N1/8W $31.04 FCS 5/16 N1/8W $14.47 MCS 5/16 N1/8W $11.69 MES 5/16 N1/8W $21.28 RTS 5/16 N1/8W $31.04

5/16

 NPT1/4 BCS 5/16 N1/4W $28.29 BTS 5/16 N1/4W $31.04 FCS 5/16 N1/4W $14.47 MCS 5/16 N1/4W $11.69 MES 5/16 N1/4W $21.97 RTS 5/16 N1/4W $31.04

5/16

 NPT3/8 BCS 5/16 N3/8W $28.29 BTS 5/16 N3/8W $35.67 FCS 5/16 N3/8W $14.47 MCS 5/16 N3/8W $12.35 MES 5/16 N3/8W $22.47 RTS 5/16 N3/8W $35.67

5/16

 NPT1/2 BCS 5/16 N1/2W $29.56 BTS 5/16 N1/2W $36.94 FCS 5/16 N1/2W $17.00 MCS 5/16 N1/2W $13.36 MES 5/16 N1/2W $27.10 RTS 5/16 N1/2W $37.77

3/8

 NPT1/8 BCS 3/8 N1/8W $31.50 BTS 3/8 N1/8W $35.67 FCS 3/8 N1/8W $17.56 MCS 3/8 N1/8W $11.69 MES 3/8 N1/8W $23.28 RTS 3/8 N1/8W $35.67

3/8

 NPT1/4 BCS 3/8 N1/4W $31.50 BTS 3/8 N1/4W $35.67 FCS 3/8 N1/4W $17.56 MCS 3/8 N1/4W $11.69 MES 3/8 N1/4W $23.28 RTS 3/8 N1/4W $35.67

3/8

 NPT3/8 BCS 3/8 N3/8W $31.50 BTS 3/8 N3/8W $35.67 FCS 3/8 N3/8W $19.04 MCS 3/8 N3/8W $11.87 MES 3/8 N3/8W $24.15 RTS 3/8 N3/8W $35.67

3/8

 NPT1/2 BCS 3/8 N1/2W $31.50 BTS 3/8 N1/2W $39.65 FCS 3/8 N1/2W $19.70 MCS 3/8 N1/2W $13.36 MES 3/8 N1/2W $27.67 RTS 3/8 N1/2W $39.65

1/2

 NPT1/4 BCS 1/2 N1/4W $33.97 BTS 1/2 N1/4W $39.06 FCS 1/2 N1/4W $17.68 MCS 1/2 N1/4W $14.32 MES 1/2 N1/4W $29.69 RTS 1/2 N1/4W $39.06

1/2

 NPT3/8 BCS 1/2 N3/8W $35.23 BTS 1/2 N3/8W $39.06 FCS 1/2 N3/8W $19.70 MCS 1/2 N3/8W $14.32 MES 1/2 N3/8W $29.69 RTS 1/2 N3/8W $39.06

1/2

 NPT1/2 BCS 1/2 N1/2W $37.77 BTS 1/2 N1/2W $41.73 FCS 1/2 N1/2W $20.34 MCS 1/2 N1/2W $18.89 MES 1/2 N1/2W $33.81 RTS 1/2 N1/2W $41.73

4mm M5X0.8 BCS 4 M5W $23.82 BTS 4 M5W $24.69 FCS 4 M5W $10.25 MCS 4 M5W $8.79 MES 4 M5W $17.47 RTS 4 M5W $24.69
4mm R1/8 BCS 4 R1/8W $23.82 BTS 4 R1/8W $24.69 FCS 4 R1/8W $10.25 MCS 4 R1/8W $8.79 MES 4 R1/8W $17.47 RTS 4 R1/8W $24.69
4mm R1/4 BCS 4 R1/4W $23.82 BTS 4 R1/4W $24.69 FCS 4 R1/4W $10.25 MCS 4 R1/4W $10.12 MES 4 R1/4W $17.47 RTS 4 R1/4W $24.69
6mm M5X0.8 BCS 6 M5W $27.03 BTS 6 M5W $24.69 FCS 6 M5W $10.25 MCS 6 M5W $10.12 MES 6 M5W $20.11 RTS 6 M5W $24.69
6mm R1/8 BCS 6 R1/8W $27.03 BTS 6 R1/8W $24.69 FCS 6 R1/8W $10.25 MCS 6 R1/8W $10.12 MES 6 R1/8W $18.61 RTS 6 R1/8W $24.69
6mm R1/4 BCS 6 R1/4W $27.03 BTS 6 R1/4W $28.38 FCS 6 R1/4W $10.25 MCS 6 R1/4W $10.12 MES 6 R1/4W $20.11 RTS 6 R1/4W $28.38
8mm R1/4 BCS 8 R1/4W $28.29 BTS 8 R1/4W $31.04 FCS 8 R1/4W $13.15 MCS 8 R1/4W $11.69 MES 8 R1/4W $22.32 RTS 8 R1/4W $31.04
8mm R3/8 BCS 8 R3/8W $28.29 BTS 8 R3/8W $33.71 FCS 8 R3/8W $14.47 MCS 8 R3/8W $12.35 MES 8 R3/8W $22.47 RTS 8 R3/8W $33.71
10mm R1/4 BCS 10 R1/4W $31.50 BTS 10 R1/4W $35.67 FCS 10 R1/4W $15.80 MCS 10 R1/4W $11.69 MES 10 R1/4W $23.28 RTS 10 R1/4W $35.67
10mm R3/8 BCS 10 R3/8W $31.50 BTS 10 R3/8W $35.67 FCS 10 R3/8W $16.87 MCS 10 R3/8W $11.87 MES 10 R3/8W $24.15 RTS 10 R3/8W $35.67
12mm R3/8 BCS 12 R3/8W $35.23 BTS 12 R3/8W $39.06 FCS 12 R3/8W $17.68 MCS 12 R3/8W $14.32 MES 12 R3/8W $29.69 RTS 12 R3/8W $39.06
12mm R1/2 BCS 12 R1/2W $35.23 BTS 12 R1/2W $41.73 FCS 12 R1/2W $20.34 MCS 12 R1/2W $18.89 MES 12 R1/2W $33.81 RTS 12 R1/2W $41.73

Stainless Steel Reducing Union Stainless Steel Bulkhead Union Stainless Steel Elbow Union Push In Fitting Stainless Steel Straight Union Stainless Steel Tube Connector Stainless Steel Tube Reducer Stainless Steel Tee Union Push In Fitting

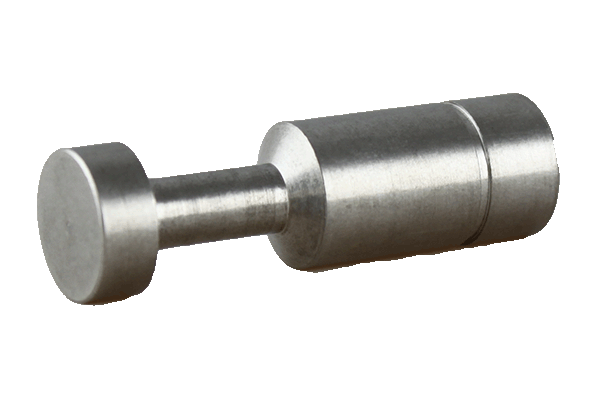

  Reduced Union Bulkhead Union Elbow Union Hex Plug Plug Straight Union Tube Connector Tube Reducer TEE Union
Tube OD Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price
1/8" RUS 5/32-1/8W $16.78 BUS 1/8W $16.78 EUS 1/8W $20.12 PGS N1/8 $5.82 PGS 1/8 $2.89 SUS 1/8W $12.65 TCS 1/8 W $3.02 TRS 1/8-5/32W $12.65 TUS 1/8W $24.69
5/32" RUS 1/4-5/32W $19.76 BUS 5/32W $16.78 EUS 5/32W $20.11 PGS 5/32 $2.30 SUS 5/32W $12.65 TCS 5/32 W $3.02 TRS 5/32-1/4W $12.65 TUS 5/32W $24.69
1/4” RUS 3/8-1/4W $26.88 BUS 1/4W $19.76 EUS 1/4W $23.10 PGS N1/4 $5.62 PGS 1/4 $2.89 SUS 1/4W $12.65 TCS 1/4 W $3.02 TRS 1/4-3/8W $12.65 TUS 1/4W $28.38
5/16" RUS 3/8-5/16W $26.88 BUS 5/16W $25.29 EUS 5/16W $24.15 PGS 5/16 $1.62 SUS 5/16W $13.78 TCS 5/16 W $3.02 TRS 5/16-3/8W $13.78 TUS 5/16W $32.04
3/8" RUS 1/2-3/8W $34.68 BUS 3/8W $26.88 EUS 3/8W $26.34 PGS N3/8 $7.40 PGS 3/8 $1.67 SUS 3/8W $14.93 TCS 3/8 W $3.63     TUS 3/8W $35.67
1/2"     BUS 1/2W $34.68 EUS 1/2W $30.30 PGS N1/2 $17.76 PGS 1/2 $2.03 SUS 1/2W $18.09 TCS 1/2 W $4.23     TUS 1/2W $41.73

4MM RUS 6-4W $23.71 BUS 4W $16.78 EUS 4W $20.11 SUS 4W $12.65     TRS 4-6W $11.33 TUS 4W $24.69
6MM RUS 8-6W $25.26 BUS 6W $23.71 EUS 6W $23.10 PGS 6 $2.03 SUS 6W $12.65     TRS 6-8W $12.65 TUS 6W $28.38
8MM RUS 10-8W $26.88 BUS 8W $25.29 EUS 8W $24.15 SUS 8W $13.78     TRS 8-10W $13.78 TUS 8W $32.04
10MM RUS 12-10W $34.68 BUS 10W $26.88 EUS 10W $26.34 PGS 10 $2.03 SUS 10W $14.93 TCS 10 W $3.63 TRS 10-12W $14.93 TUS 10W $35.67
12MM     BUS 12W $34.68 EUS 12W $30.30 PGS 12 $2.03 SUS 12W $18.09         TUS 12W $41.73

Stainless Stee Tube Adaptor Push-In-Cartridge-Fitting Hex Reducing Bushing
Tube Adaptor Cartridge Fitting Hex Bushing

Tube OD

 Pipe Size Part No. Unit Price  Part No. Unit Price  Part No. Unit Price

1/8

 10-32UNF TAS 1/8 10-32 $5.57 CFS 1/8W $11.16 HBS MN1/4-FN1/8 $3.07

1/8

 NPT1/8 TAS 1/8 N1/8 $5.57 CFS 5/32W $10.02 HBS MN3/8-FN1/8 $3.84

5/32

 10-32UNF TAS 5/32 10-32 $5.57 CFS 1/4W $8.62 HBS MN3/8-FN1/4 $4.60

5/32

 NPT1/8     CFS 5/16W $9.38 HBS MN1/2-FN1/4 $4.60

5/32

 NPT1/4     CFS 3/8W $9.89

1/4

 NPT1/8 TAS 1/4 N1/8 $5.57 CFS 1/2W $10.52

1/4

 NPT1/4 TAS 1/4 N1/4 $5.57

Speed Control Valve In Line Speed Control Valve Shuttle Valve Quick Exhaust Valve Speed Control Silencer AIR SILENCER
In-Line Panel Mount Flow Control In-Line Flow Control Shuttle Valve Quick Exhaust Valve Flow Control Silencer Brass Silencer
NPT Thread Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price Part No. Unit Price
10-32                     BSL 10-32 $1.16
1/8" ASC N1/8 $15.57 AS N1/8 $10.00 ST N1/8 $16.54 QE N1/8 $16.54 BESL N1/8 $4.23 BSL N1/8 $1.16
1/4” ASC N1/4 $15.57 AS N1/4 $10.00 ST N1/4 $18.69 QE N1/4 $18.69 BESL N1/4 $6.00 BSL N1/4 $2.24
3/8" ASC N3/8 $17.97 AS N3/8 $11.98 ST N3/8 $18.69 QE N3/8 $18.69 BESL N3/8 $9.20 BSL N3/8 $3.39
1/2" ASC N1/2 $21.56 AS N1/2 $18.75 ST N1/2 $30.50 QE N1/2 $21.28 BESL N1/2 $12.64 BSL N1/2 $5.21
