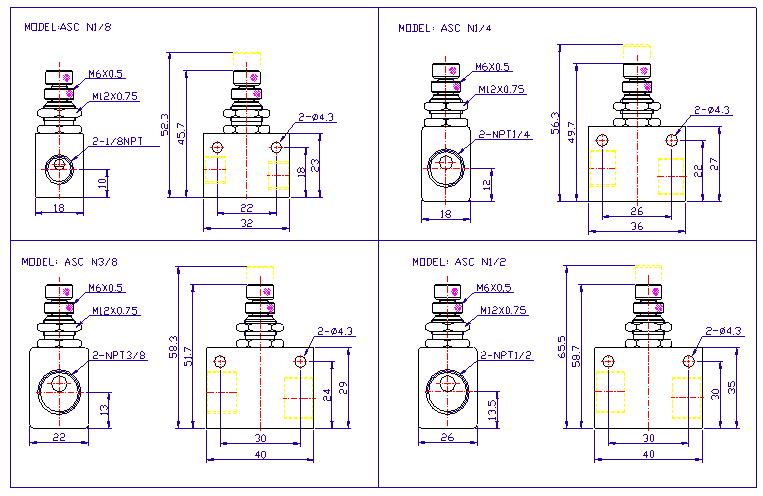

ASC Series In-Line Flow Control Valve Dimensions

Download PDF Files: ASC N1/8   ASC N1/4   ASC N3/8   ASC N1/2   ASC N1/4B Namur Flow Control Adaptor

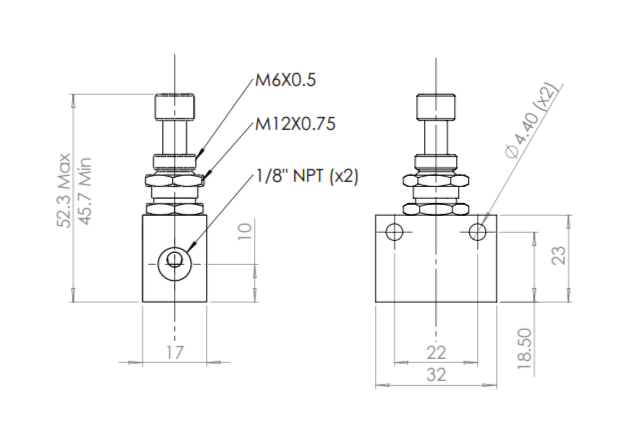

ASC N1/8 (Units in mm)

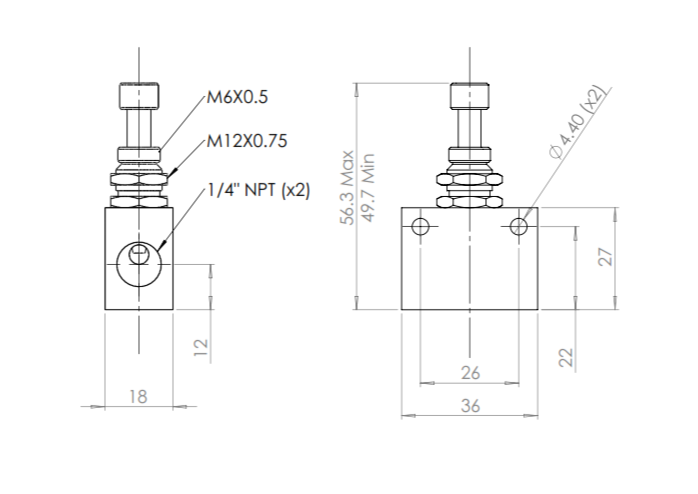

ASC N1/4 (Units in mm)

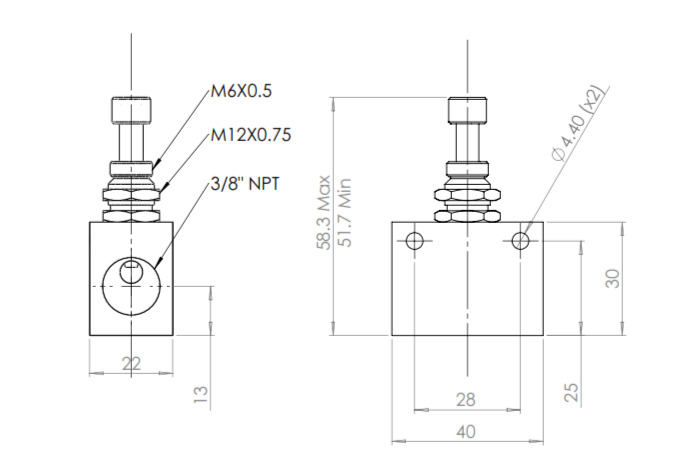

ASC N3/8 (Units in mm)

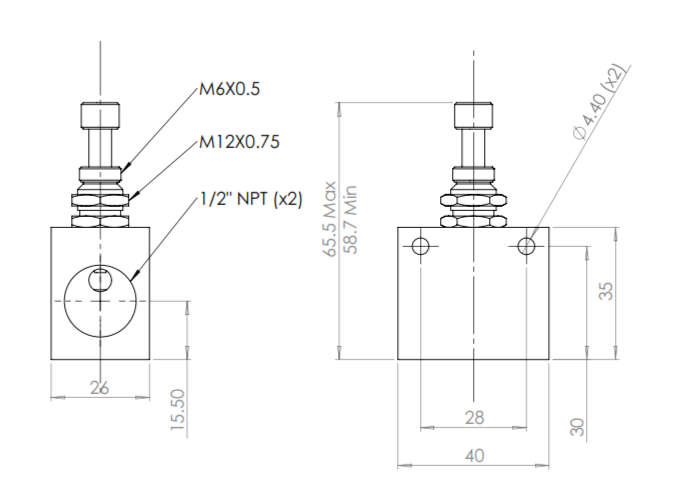

ASC N1/2 (Units in mm)

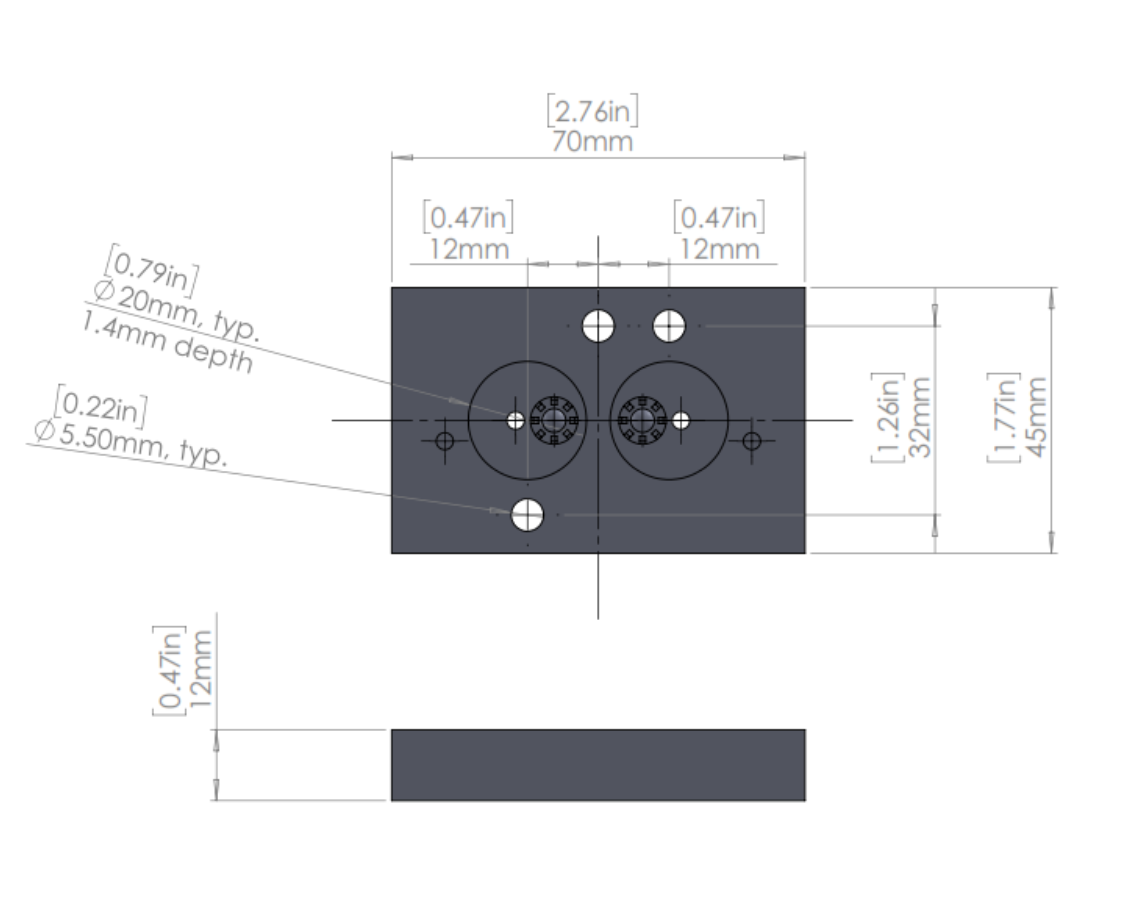

ASC N1/4B Namur Flow Control Adaptor (Units in mm)
