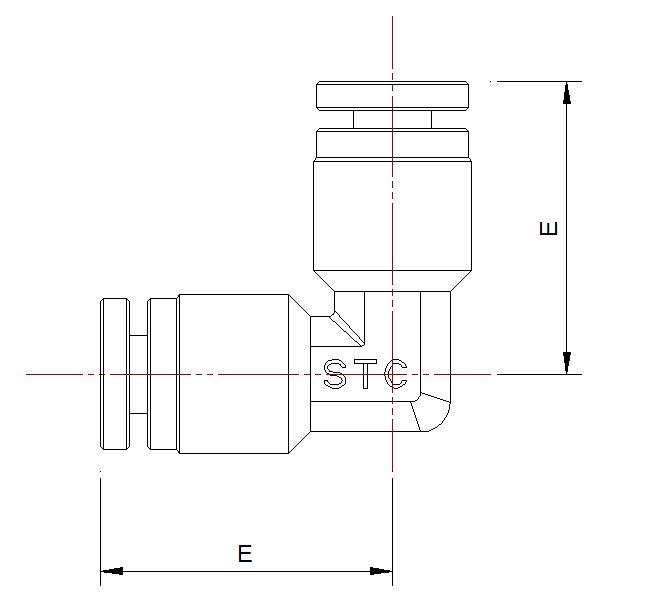

Model EUS: Elbow Union Stainless Steel Push In Fittings

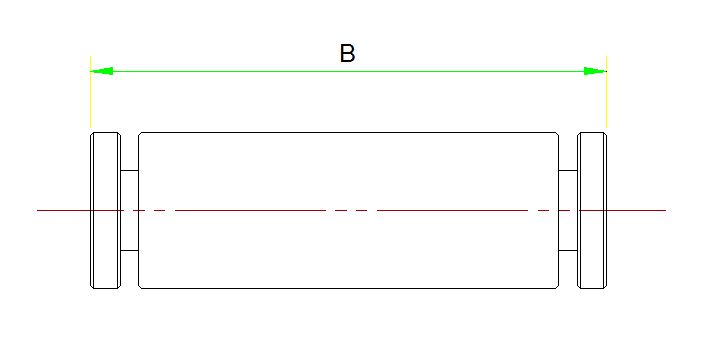

Model SUS: Straight Union Stainless Steel Push In Fittings

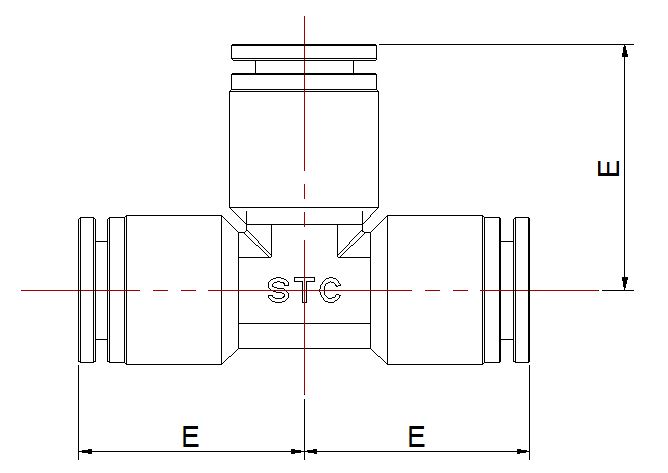

Model TUS: Tee Union Stainless Steel Push In Fittings

Stainless Steel Fitting Dimensions

Model Elbow Union Straight Union Tee Union
EUS SUS TUS
ФD Part No. E Part No. B Part No. E
1/8"EUS 1/8 W20.2SUS 1/8 W34.5TUS 1/8 W 0.80" [20.20mm]
5/32"EUS 5/32 W20.2SUS 5/32 W35.1TUS 5/32 W 0.79" [20.19mm]
3/16"EUS 3/16 W22.6SUS 3/16 W38.05TUS 3/16 W [22.6mm]
1/4"EUS 1/4 W22.3SUS 1/4 W 38.4TUS 1/4 W 0.88"[22.41mm]
5/16"EUS 5/16 W23.9SUS 5/16 W 42.2TUS 5/16 W 0.95" [24.10mm]
3/8"EUS 3/8 W30.5SUS 3/8 W 50.4TUS 3/8 W 1.18" [29.97mm]
1/2"EUS 1/2 W32.2SUS 1/2 W 51.9TUS 1/2 W 1.26" [31.89mm]
4mmEUS 4 W20.2SUS 4 W35.1TUS 4 W0.79" [20.19mm]
6mmEUS 6 W22.3SUS 6 W 38.4TUS 6 W 0.88" [22.41mm]
8mmEUS 8 W23.9SUS 8 W 42.2TUS 8 W0.95" [24.10mm]
10mmEUS 10 W30.5SUS 10 W 50.4TUS 10 W 1.07" [27.22mm]
12mmEUS 12 W32.2SUS 12 W 52.4TUS 12 W 1.27" [32.13mm]
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Stainless Steel Fittings Specification Guide
