Air Filter-Regulator-Lubricator (FRLs)

STC offers a complete line of modular air-processing equipment. A-Series Filters, Regulators, and Lubricators (FRLs) are interchangeable with SMC-NAC Series FRLs. These FRL components are of modular design with joiner clamps that allow easy connection and disconnection of the FRL components for simple installation and maintenance. We carry a large inventory in our CA warehouse for quick shipping!

Explanation of drain options for filter bowls:
  • Manual Drain: Bowl must be drained by hand
  • Semi-Auto Drain: Bowl will drain automatically when the housing is depressurized
  • Auto Drain: Bowl will drain automatically while the housing is pressurized when the water level reaches the built-in limit
STC A Series FRLs Selection Guide  (Click on a picture to get details)
Filter- Regulator- Lubricator (AC) Stacking Filter- Regulator- Lubricator (AC) Filter (AF) Lubricator (AL)
Filter Regulator Lubricator Filter Regulator Lubricator Air Filter Air Lubricator
Regulator (AR) Stacking Filter- Regulator (AW) Relieving Shut-off/Lockout Valve (VHS) FRL Mounting Hardware
Air Regulator Air Filter Regulator Air Lock Out Valve Air Pressure Regulator Mounting Bracket

STC A Series FRLs (Interchangeable with SMC - NAC Series FRLs)
PicturePart No.List PriceDescription (*Includes Bracket & Gauge)Symbol
Filter Regulator Lubricator
*Includes Bracket & Gauge
AC1000-M5 $63.94 M5 Filter- Regulator- Lubricator* (3 SCFM) Filter Regulator Lubricator Schematic Symbol
AC2000-01 $67.12 1/8" NPT Filter- Regulator- Lubricator* (18 SCFM)

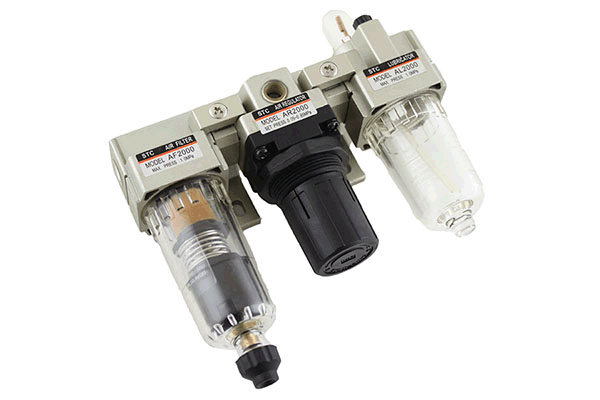

AC2000-01D $90.09 1/8" NPT Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2000-01M $81.07 1/8" NPT Filter- Regulator- Lubricator* Metal Bowl (18 SCFM)
AC2000-01DM $99.46 1/8" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC2000-02 $67.12 1/4" NPT Filter- Regulator- Lubricator* (18 SCFM)
AC2000-02D $90.09 1/4" NPT Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2000-02M $79.15 1/4" NPT Filter- Regulator- Lubricator* Metal Bowl (18 SCFM)
AC2000-02DM $102.07 1/4" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
Filter Regulator Lubricator
*Includes Bracket & Gauge

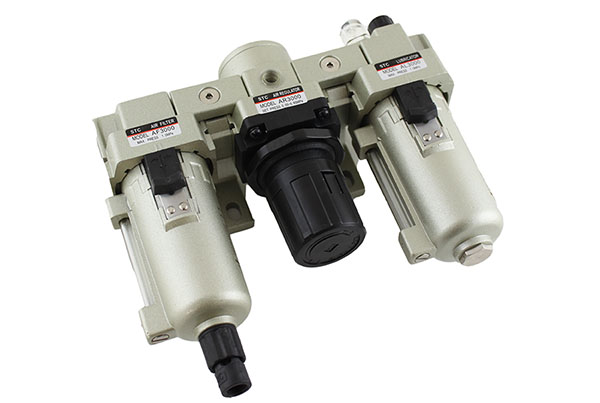

AC3000-02 $103.23 1/4" NPT Filter- Regulator- Lubricator* (70 SCFM) Filter Regulator Lubricator Schematic Symbol
AC3000-02D $133.26 1/4" NPT Filter- Regulator- Lubricator* with Auto Drain (70 SCFM)
AC3000-02M $121.25 1/4" NPT Filter- Regulator- Lubricator* with Metal Bowl (70 SCFM)
AC3000-02DM $151.28 1/4" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (70 SCFM)
AC3000-03 $103.23 3/8" NPT Filter- Regulator- Lubricator* (70 SCFM)
AC3000-03D $133.26 3/8" NPT Filter- Regulator- Lubricator* with Auto Drain (70 SCFM)
AC3000-03M $121.25 3/8" NPT Filter- Regulator- Lubricator* with Metal Bowl (70 SCFM)
AC3000-03DM $151.27 3/8" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (70 SCFM)
AC4000-03 $139.23 3/8" NPT Filter- Regulator- Lubricator* (140 SCFM)
AC4000-03D $176.68 3/8" NPT Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC4000-03M $175.30 3/8" NPT Filter- Regulator- Lubricator* with Metal Bowl (140 SCFM)
AC4000-03DM $196.33 3/8" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
AC4000-04 $139.23 1/2" NPT Filter- Regulator- Lubricator* (140 SCFM)
AC4000-04D $176.68 1/2" NPT Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC4000-04M $175.30 1/2" NPT Filter- Regulator- Lubricator* with Metal Bowl (140 SCFM)
AC4000-04DC $139.23 1/2" NPT Filter- Regulator- Lubricator* with Drain Cock (manual shut off valve) (140 SCFM)
AC4000-04DM $196.33 1/2" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
AC4000-06 $152.31 3/4" NPT Filter- Regulator- Lubricator* (160 SCFM)
AC4000-06D $189.73 3/4" NPT Filter- Regulator- Lubricator* with Auto Drain (160 SCFM)
AC4000-06M $188.34 3/4" NPT Filter- Regulator- Lubricator* with Metal Bowl (160 SCFM)
AC4000-06DM $209.36 3/4" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (160 SCFM)
AC5000-10 $191.95 1" NPT Filter- Regulator- Lubricator* (180 SCFM)
AC5000-10D $241.52 1" NPT Filter- Regulator- Lubricator* with Auto Drain (180 SCFM)
AC5000-10M $236.11 1" NPT Filter- Regulator- Lubricator* with Metal Bowl (180 SCFM)
AC5000-10DM $281.05 1" NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (180 SCFM)
Filter Regulator Lubricator
*Includes Bracket & Gauge
AC1010-M5 $57.18 M5/10-32 Stacking Filter- Regulator- Lubricator* (3 SCFM) Filter Regulator Lubricator Schematic Symbol

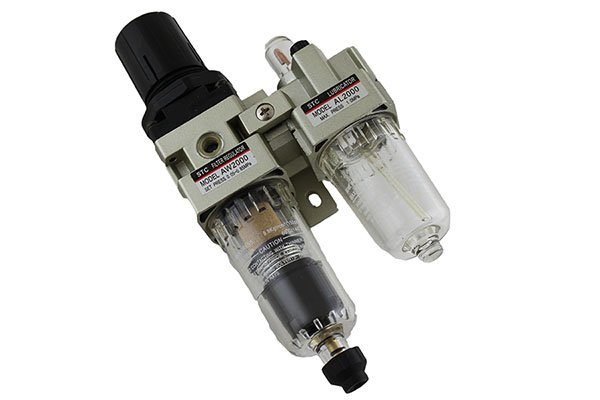

AC2010-01 $60.85 1/8" NPT Stacking Filter- Regulator- Lubricator* (18 SCFM)
AC2010-01D $83.87 1/8" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2010-01DM $92.87 1/8" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC2010-02 $60.85 1/4" NPT Stacking Filter- Regulator- Lubricator* (18 SCFM)
AC2010-02D $83.87 1/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2010-02M $74.98 1/4" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (18 SCFM)
AC2010-02DM $92.87 1/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
Filter Regulator Lubricator
*Includes Bracket & Gauge
AC3010-02 $85.15 1/4" NPT Stacking Filter- Regulator- Lubricator* (60 SCFM) Filter Regulator Lubricator Schematic Symbol
AC3010-02D $115.21 1/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (60 SCFM)
AC3010-02M $98.16 1/4" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (60 SCFM)
AC3010-02DM $123.92 1/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (60 SCFM)
AC3010-03 $85.15 3/8" NPT Stacking Filter- Regulator- Lubricator* (60 SCFM)
AC3010-03D $115.21 3/8" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (60 SCFM)
AC3010-03M $103.19 3/8" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (60 SCFM)
AC3010-03DM $124.35 3/8" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (60 SCFM)
AC4010-03 $123.01 3/8" NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-03D $160.47 3/8" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-03M $159.07 3/8" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-04 $123.01 1/2" NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-04D $160.47 1/2" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-04M $159.07 1/2" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-04DM $180.12 1/2" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (105 SCFM)
AC4010-06 $140.60 3/4" NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-06D $178.04 3/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-06M $170.34 3/4" NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-06DM $178.34 3/4" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (105 SCFM)
AC5010-10 $175.75 1" NPT Stacking Filter- Regulator- Lubricator* (140 SCFM)
AC5010-10D $213.18 1" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC5010-10DM $281.05 1" NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
Air Filter AF1000-M5 $16.21 M5 Filter (4 SCFM) Filter Regulator Lubricator Schematic Symbol
AF2000-01 $16.72 1/8" NPT Filter (26 SCFM)
AF2000-01D $39.74 1/8" NPT Filter with Auto Drain (26 SCFM)
AF2000-01M $24.86 1/8" NPT Filter with Metal Bowl (26 SCFM)
AF2000-01DM $41.90 1/8" NPT Filter with Auto Drain & Metal Bowl (26 SCFM)

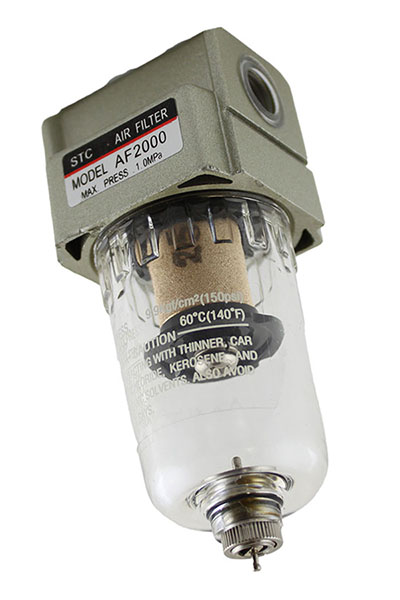

AF2000-02 $16.72 1/4" NPT Filter (26 SCFM)
AF2000-02D $39.74 1/4" NPT Filter with Auto Drain (26 SCFM)
AF2000-02M $24.86 1/4" NPT Filter with Metal Bowl (26 SCFM)
AF2000-02DM $43.72 1/4" NPT Filter Auto Drain & Metal Bowl (26 SCFM)
Air Filter AF3000-02 $25.22 1/4" NPT Filter (70 SCFM) Filter Regulator Lubricator Schematic Symbol
AF3000-02D $55.28 1/4" NPT Filter with Auto Drain (70 SCFM)
AF3000-02M $34.23 1/4" NPT Filter with Metal Bowl (70 SCFM)
AF3000-02DM $60.07 1/4" NPT Filter Auto Drain & Metal Bowl (70 SCFM)
AF3000-03 $25.22 3/8" NPT Filter (70 SCFM)
AF3000-03D $55.28 3/8" NPT Filter with Auto Drain (70 SCFM)
AF3000-03M $34.23 3/8" NPT Filter with Metal Bowl (70 SCFM)
AF3000-03DM $58.44 3/8" NPT Filter Auto Drain & Metal Bowl (70 SCFM)

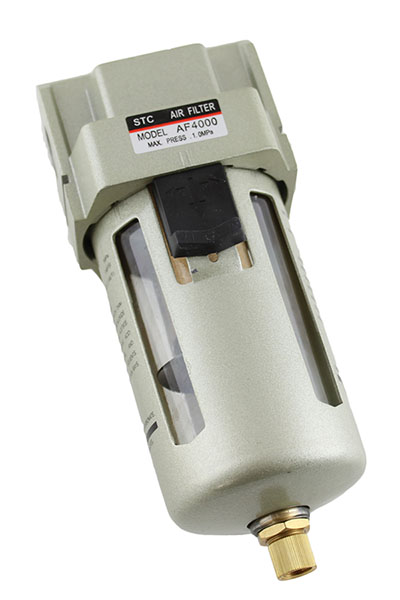

AF4000-03 $35.15 3/8" NPT Filter (140 SCFM)
AF4000-03D $65.20 3/8" NPT Filter with Auto Drain (140 SCFM)
AF4000-03M $44.16 3/8" NPT Filter with Metal Bowl (140 SCFM)
AF4000-03DM $74.21 3/8" NPT Filter Auto Drain & Metal Bowl (140 SCFM)
AF4000-04 $35.15 1/2" NPT Filter (140 SCFM)
AF4000-04D $65.20 1/2" NPT Filter with Auto Drain (140 SCFM)
AF4000-04M $44.16 1/2" NPT Filter with Metal Bowl (140 SCFM)
AF4000-04DM $74.21 1/2" NPT Filter Auto Drain & Metal Bowl (140 SCFM)
AF4000-06 $39.21 3/4" NPT Filter (210 SCFM)
AF4000-06D $76.66 3/4" NPT Filter with Auto Drain (210 SCFM)
AF4000-06M $48.21 3/4" NPT Filter with Metal Bowl (210 SCFM)
AF4000-06DM $80.74 3/4" NPT Filter Auto Drain & Metal Bowl (210 SCFM)
AF5000-10 $52.25 1" NPT Filter (245 SCFM)
AF5000-10D $89.76 1" NPT Filter with Auto Drain (245 SCFM)
AF5000-10M $61.28 1" NPT Filter with Metal Bowl (245 SCFM)
AF5000-10DM $91.30 1" NPT Filter with Auto Drain & Metal Bowl (245 SCFM)
Air Regulator
*Includes Bracket & Gauge

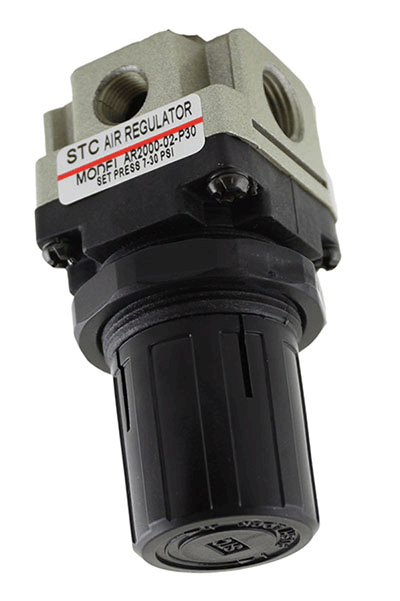

AR1000-M5 $26.99 M5/10-32 Regulator* (4 SCFM) Air Regulator Schematic Symbol
AR2000-01 $27.92 1/8" NPT Regulator* (19 SCFM)
AR2000-02 $27.92 1/4" NPT Regulator* (19 SCFM)
AR2500-02 $39.87 1/4" NPT Regulator* (50 SCFM)
AR3000-02 $43.25 1/4" NPT Regulator* (88 SCFM)
AR3000-03 $43.25 3/8" NPT Regulator* (88 SCFM)

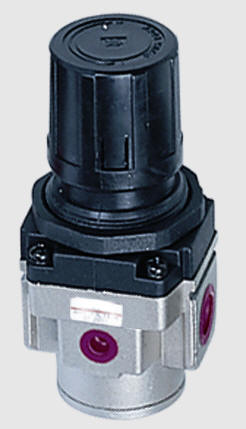

AR4000-03 $57.66 3/8" NPT Regulator* (210 SCFM)
AR4000-04 $57.66 1/2" NPT Regulator* (210 SCFM)
AR4000-06 $66.67 3/4" NPT Regulator* (210 SCFM)
AR5000-06 $72.13 3/4" NPT Regulator* (280 SCFM)
AR5000-10 $72.13 1" NPT Regulator* (280 SCFM)

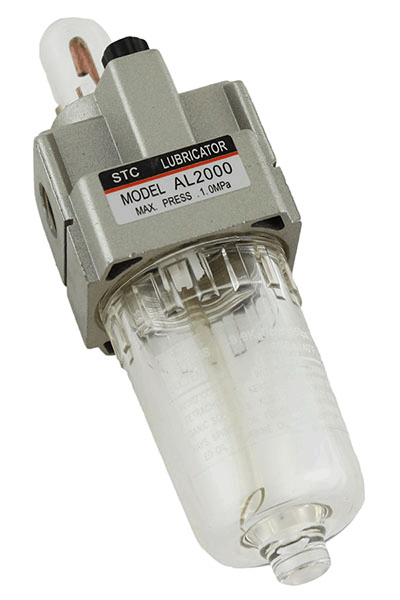

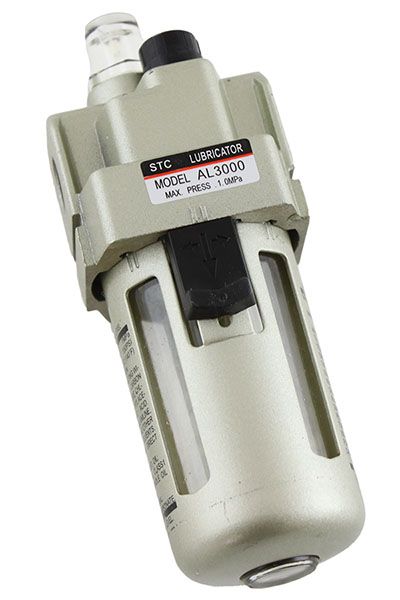

Air Lubricator AL1000-M5 $16.21 M5 Lubricator (3 SCFM) Air Lubricator Schematic Symbol
AL2000-01 $16.72 1/8" NPT Lubricator (28 SCFM)
AL2000-01M $24.46 1/8" NPT Lubricator with Metal Bowl (28 SCFM)
AL2000-02 $16.72 1/4" NPT Lubricator (28 SCFM)
AL2000-02M $24.46 1/4" NPT Lubricator with Metal Bowl (28 SCFM)
Air Lubricator AL3000-02 $25.22 1/4" NPT Lubricator (60 SCFM) Air Lubricator Schematic Symbol
AL3000-02M $34.23 1/4" NPT Lubricator with Metal Bowl (60 SCFM)
AL3000-03 $25.22 3/8" NPT Lubricator (60 SCFM)
AL3000-03M $34.23 3/8" NPT Lubricator with Metal Bowl (60 SCFM)
AL4000-03 $35.15 3/8" NPT Lubricator (180 SCFM)
AL4000-03M $53.17 3/8" NPT Lubricator with Metal Bowl (180 SCFM)
AL4000-04 $35.15 1/2" NPT Lubricator (180 SCFM)
AL4000-04M $53.17 1/2" NPT Lubricator with Metal Bowl (180 SCFM)
AL4000-06 $39.21 3/4" NPT Lubricator (220 SCFM)
AL4000-06M $59.30 3/4" NPT Lubricator with Metal Bowl (220 SCFM)
AL5000-10 $55.43 1" NPT Lubricator (245 SCFM)
AL5000-10M $73.45 1" NPT Lubricator with Metal Bowl (245 SCFM)
Air Filter Regulator
*Includes Bracket & Gauge

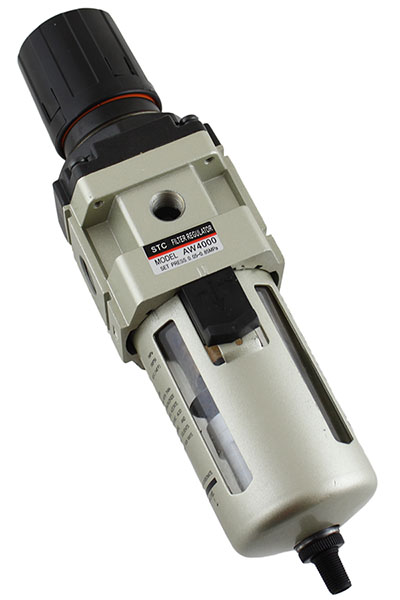

AW1000-M5 $40.02 M5 Filter- Regulator* (3 SCFM) Air Filter Regulator Schematic Symbol
AW2000-01 $40.10 1/8" NPT Filter- Regulator* (19 SCFM)
AW2000-01D $61.12 1/8" NPT Filter- Regulator* with Auto Drain (19 SCFM)
AW2000-01M $46.75 1/8" NPT Filter- Regulator* with Metal Bowl (19 SCFM)

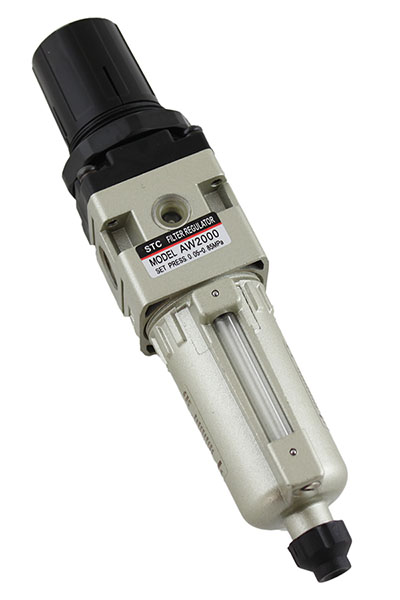

AW2000-01DM $67.12 1/8" NPT Filter- Regulator* Auto Drain & Metal Bowl (19 SCFM)
AW2000-02 $40.10 1/4" NPT Filter- Regulator* (19 SCFM)
AW2000-02D $61.12 1/4" NPT Filter- Regulator* with Auto Drain (19 SCFM)
AW2000-02M $46.75 1/4" NPT Filter- Regulator* with Metal Bowl (19 SCFM)
AW2000-02DM $67.12 1/4" NPT Filter- Regulator* Auto Drain & Metal Bowl (19 SCFM)


*Includes Bracket & Gauge
AW3000-02 $54.07 1/4" NPT Filter- Regulator* (70 SCFM) Air Filter Regulator Schematic Symbol
AW3000-02D $84.12 1/4" NPT Filter- Regulator* with Auto Drain (70 SCFM)
AW3000-02M $63.08 1/4" NPT Filter- Regulator* with Metal Bowl (70 SCFM)
AW3000-02DM $93.13 1/4" NPT Filter- Regulator* Auto Drain & Metal Bowl (70 SCFM)
AW3000-03 $54.07 3/8" NPT Filter- Regulator* (70 SCFM)
AW3000-03D $84.12 3/8" NPT Filter- Regulator* with Auto Drain (70 SCFM)
AW3000-03M $63.08 3/8" NPT Filter- Regulator* with Metal Bowl (70 SCFM)
AW3000-03DM $93.13 3/8" NPT Filter- Regulator* Auto Drain & Metal Bowl (70 SCFM)
AW4000-03 $81.11 3/8" NPT Filter- Regulator* (140 SCFM)
AW4000-03D $118.55 3/8" NPT Filter- Regulator* with Auto Drain (140 SCFM)
AW4000-03M $99.13 3/8" NPT Filter- Regulator* with Metal Bowl (140 SCFM)
AW4000-03DM $136.55 3/8" NPT Filter- Regulator* Auto Drain & Metal Bowl (140 SCFM)
AW4000-04 $81.11 1/2" NPT Filter- Regulator* (140 SCFM)
AW4000-04D $118.55 1/2" NPT Filter- Regulator* with Auto Drain (140 SCFM)
AW4000-04M $99.13 1/2" NPT Filter- Regulator* with Metal Bowl (140 SCFM)
AW4000-04DM $136.55 1/2" NPT Filter- Regulator* Auto Drain & Metal Bowl (140 SCFM)
AW4000-06 $94.63 3/4" NPT Filter- Regulator* (160 SCFM)
AW4000-06D $132.07 3/4" NPT Filter- Regulator* with Auto Drain (160 SCFM)
AW5000-10 $112.67 1" NPT Filter- Regulator* (195 SCFM)
AW5000-10D $150.11 1" NPT Filter- Regulator* with Auto Drain (195 SCFM)

STC FRL Mounting Hardware & Pressure Gauge
PicturePart No.List PriceDescription
FRL Mounting Bracket Y20 $5.24 Spacer for AC2000 / AC2010
Y30 $8.75 Spacer for AC3000 / AC3010
Y40 $10.46 Spacer for AC4000-04 / AC4010-04
Y50 $10.46 Spacer for AC4000-06 / AC4000-06
Y60 $10.91 Spacer for AC5000 / AC5010
FRL Mountng Bracket Y20L $5.70 L-Type Spacer Bracket for AC2000
Y30L $8.75 L-Type Spacer Bracket for AC3000
Y40L $10.46 L-Type Spacer Bracket for AC4000-04
Y50L $10.46 L-Type Spacer Bracket for AC4000-06
Y60L $10.91 L-Type Spacer Bracket for AC5000
FRL Mounting Bracket Y20T $6.12 T-Type Spacer Bracket for AC2010
Y30T $10.46 T-Type Spacer Bracket for AC3010
Y40T $11.35 T-Type Spacer Bracket for AC4010-04
Y50T $12.23 T-Type Spacer Bracket for AC4010-06
Y60T $17.50 T-Type Spacer Bracket for AC5010
FRL Mounting Bracket Y21-N01 $8.75 Spacer with 1/8 NPT Port for AC2000
Y21-N02 $8.75 Spacer with 1/4 NPT Port for AC2000
Y31-N01 $13.10 Spacer with 1/8 NPT Port for AC3000
Y31-N02 $13.10 Spacer with 1/4 NPT Port for AC3000
Y41-N02 $15.72 Spacer with 1/4 NPT Port for AC4000
Y41-N03 $17.15 Spacer with 3/8 NPT Port for AC4000
Y61-N03 $21.83 Spacer with 3/8 NPT Port for AC5000
Y61-N04 $27.31 Spacer with 1/2 NPT Port for AC5000
FRL Mounting Bracket B110L $5.24 L-Bracket for AC1000
B210L $8.74 L-Bracket for AC2000
B310L $10.46 L-Bracket for AC3000
B410L $10.46 L-Bracket for AC4000
B510L $10.91 L-Bracket for AC4000-06
FRL Mounting Bracket B110T $6.12 T-Bracket for AC1010
B210T $9.61 T-Bracket for AC2010
B310T $11.35 T-Bracket for AC3010
B410T $12.22 T-Bracket for AC4010
B510T $17.47 T-Bracket for AC4010-06
Air Pressure Regulator Mounting Bracket B120 $2.63 Bracket for AR/AW1000
B220 $2.85 Bracket for AR/AW2000
B320 $3.50 Bracket for AR/AW3000
B420 $4.36 Bracket for AR/AW4000-5000
Air Pressure Regulator Mounting Bracket B240 $2.85 Bracket for AF/AL2000
B340 $3.84 Bracket for AF/AL3000
B440 $4.36 Bracket for AF/AL4000-04
B540 $5.24 Bracket for AF/AL4000-06
B640 $7.00 Bracket for AF/AL5000
Air Pressure Gauge GE 1-60 $8.42 1" Dia. 1/16" 0-60 PSI back mount pressure gauge for 1000 series FRL
GE 1-160 $8.42 1" Dia. 1/16" 0-160 PSI back mount pressure gauge for 1000 series FRL
GE 1 1/2-30 $8.42 1 1/2" Dia. 1/8" NPT 0-30 PSI back mount pressure gauge for 2000 series FRL
GE 1 1/2-60 $8.42 1 1/2" Dia. 1/8" NPT 0-60 PSI back mount pressure gauge for 2000 series FRL
GE 1 1/2-160 $8.42 1 1/2" Dia. 1/8" NPT 0-160 PSI back mount pressure gauge for 2000 series FRL
GE 2-30 $9.02 2" Dia. 1/4" NPT 0-30 PSI back mount pressure gauge for 3000-5000 series FRL
GE 2-60 $9.02 2" Dia. 1/4" NPT 0-60 PSI back mount pressure gauge for 3000-5000 series FRL
GE 2-160 $9.97 2" Dia. 1/4" NPT 0-160 PSI back mount pressure gauge for 3000-5000 series FRL
GP 1 1/2-160 $9.78 1 1/2" Dia. 1/8" NPT 0-160 PSI panel mount pressure gauge for 2000 series FRL
GP 2-160 $10.38 2" Dia. 1/4" NPT 0-160 PSI panel mount pressure gauge
GA 1 1/2-60 $14.42 1.5" Dia. 1/8" NPT 0-60 PSI SS housing back mount glycerin filled
GA 1 1/2-160 $14.42 1.5" Dia. 1/8" NPT 0-160 PSI SS housing back mount glycerin filled
Air Lock Out Valve VHS2000-01 $30.39 1/8" NPT Relieving Shut-off / Lockout Valve for 2000-01 Series FRL
VHS2000-02 $30.39 1/4" NPT Relieving Shut-off / Lockout Valve for 2000-02 Series FRL
VHS3000-02 $38.73 1/4" NPT Relieving Shut-off / Lockout Valve for 3000-02 Series FRL
VHS3000-03 $38.73 3/8" NPT Relieving Shut-off / Lockout Valve for 3000-03 Series FRL
VHS4000-03 $57.71 3/8" NPT Relieving Shut-off / Lockout Valve for 4000-03 Series FRL
VHS4000-04 $57.71 1/2" NPT Relieving Shut-off / Lockout Valve for 4000-04 Series FRL
VHS5000-06 $118.16 3/4" NPT Relieving Shut-off / Lockout Valve for 5000-06 Series FRL
VHS5000-10 $118.16 1" NPT Relieving Shut-off / Lockout Valve for 5000-10 Series FRL

STC AB Series FRLs
*Price Includes Pressure Gauge & Mounting Bracket
1500-2000 Series Part No. Unit Price* Unit Price (with Metal Bowl)* Description Flow Rate (SCFM)
Filter Regulator Lubricator AFC1500 $45.30 $55.80 1/8" NPT Stacked Filter- Regulator- Lubricator 18
Filter Regulator AFR 1000/1500 $31.10 $37.20 1/8" NPT Stacked Filter- Regulator 18
AFR2000 $31.10 $37.20 1/4" NPT Stacked Filter- Regulator 18
Air Regulator AR1500 $25.68 - 1/8" NPT Regulator (Includes Gauge & Bracket) 18
AR2000 $25.68 - 1/4" NPT Regulator (Includes Gauge & Bracket) 18
BR3000 $31.10 - 3/8" NPT Regulator (Includes Gauge & Bracket) 60
BR4000 $31.10 - 1/2" NPT Regulator (Includes Gauge & Bracket) 60
Air Filter AF2000 $14.87 $20.87 1/4" NPT Filter 18
Air Lubricator AL2000 $15.57 $23.06 1/4" NPT Lubricator 18

A Series FRL Ordering Guide (e.g., AC1000-M5)
Model Body Size Port Size Options Standard Features
AC = Filter- Regulator- Lubricator
AF = Filter
AL = Lubricator
AR = Regulator
AW = Stacking Filter-Regulator
1000
2000
3000
4000
5000
00 = 10-32 (M5)
01 = 1/8" NPT
02 = 1/4" NPT
03 = 3/8" NPT
04 = 1/2" NPT
06 = 3/4" NPT
10 = 1" NPT
D = Automatic Drain
DC = Drain Cock (with manual shut off valve)
M = Metal Bowl (with Sight Glass)
P30 = 30PSI Regulating Range
P60 = 60PSI Regulating Range
F5 = 5 Micron Filter
125PSI Regulating Range
Polycarbonate Bowl (3000-5000 Series with Steel Bowl Shield)
Semi-Auto Differential Drain
25 Micron Sintered Brass Filter
AC = Stacking Filter- Regulator- Lubricator 1010
2010
3010
4010
5010
00 = 10-32 (M5)
01 = 1/8" NPT
02 = 1/4" NPT
03 = 3/8" NPT
04 = 1/2" NPT
06 = 3/4" NPT
10 = 1" NPT
D = Automatic Drain
DC = Drain Cock (with manual shut off valve)
M = Metal Bowl (with Sight Glass)
P30 = 30PSI Regulating Range
P60 = 60PSI Regulating Range
F5 = 5 Micron Filter
125PSI Regulating Range
Polycarbonate Bowl (3000-5000 Series with Steel Bowl Shield)
Semi-Auto Differential Drain
25 Micron Sintered Brass Filter

Specifications
Filter- Regulator- Lubricator (AC) Stacking Filter- Regulator- Lubricator (AC) Filter- Regulator (AW) Regulator (AR) Filters (AF) Lubricators (AL)
Model Air Flow Rate* SCFM (LPM) Model Air Flow Rate* SCFM (LPM) Model Air Flow Rate* SCFM (LPM) Model Air Flow Rate* SCFM (LPM) Model Air Flow Rate* SCFM (LPM) Model Air Flow Rate* SCFM (LPM)
AC 1000-003 (90) AC 1010-003 (90) AW 1000-003 (90) AR 1000-004 (100) AF 1000-004 (110) AL 1000-003 (90)
AC 2000-XX18 (500) AC 2010-XX18 (500) AW 2000-XX19 (550) AR 2000-XX19 (550) AF 2000-XX26 (760) AL 2000-XX28 (800)
AC 3000-XX70 (2000) AC 3010-XX60 (1700) AW 3000-XX70 (2000) AR 3000-XX88 (2500) AF 3000-XX70 (2000) AL 3000-XX60 (1700)
AC 4000-XX140 (4000) AC 4010-XX105 (3000) AW 4000-XX140 (4000) AR 4000-XX210 (6000) AF 4000-XX140 (4000) AL 4000-XX180 (5000)
AC 4000-06160 (4500) AC 4010-06105 (3000) AW 4000-06160 (4500) AR 4000-06210 (6000) AF 4000-06210 (6000) AL 4000-06220 (6300)
AC 5000-XX180 (5000) AC 5010-XX140 (4000) AW 5000-XX195 (5500) AR 5000-XX280 (8000) AF 5000-XX245 (7000) AL 5000-XX245 (7000)
*Measured with Supply Air Pressure @100PSI and Set Point Pressure @75PSI.

Specifications
Model Series Port Size Port Size (Pressure Gauge) Regulating Range Max. Operating Pressure Operating Temperature Filtration Bowl Material Bowl Guard Body Material Construction/
Regulator
Seals Filter Drain Service
1000-00 10-32 (M5) 1/16 Rc (PT) 7 - 100PSI 150PSI
(9.9 kgf/cm^2)
40 - 140°F
(5 - 60°C)
5 Micron Filter (Option);

25 Micron (Standard Sintered Brass Filter)
Polycarbonate (Standard);

Aluminum Metal (Option)
N/A Die-Cast ADC12 Aluminum Relieving Type NBR Semi-Auto Differential Drain For Air Only
1010-00
2000-XX 1/8" or 1/4" NPT 1/8" NPT 7 - 125PSI (0.5 - 8.5 kgf/cm^2) N/A Semi-Auto Differntial Drain (Standard)

Automatic Drain (Option)
2010-XX
3000-XX 1/4" or 3/8" NPT 1/8" NPT Steel Bowl Guard
3010-XX
4000-XX 3/8" or 1/2" NPT 1/4" NPT
4010-XX
4000-06 3/4" NPT 1/4" NPT
4010-06
5000-XX 3/4" or 1" NPT 1/4" NPT
5010-XX
These FRL components are of modular design with joiner clamps. The joiner clamps allow easy connection and disconnection of FRL components for simple installation and maintenance.

Home Terms of Use Terms of Sale Career Contact Us Click Here to Order
Sizto Tech Corporation © 2001-. All rights reserved. Last modified:November 1, 2021.
Information contained herein may be changed without prior notification.
