FRL Mounting Hardware Dimensions and Pressure Gauge Dimensions

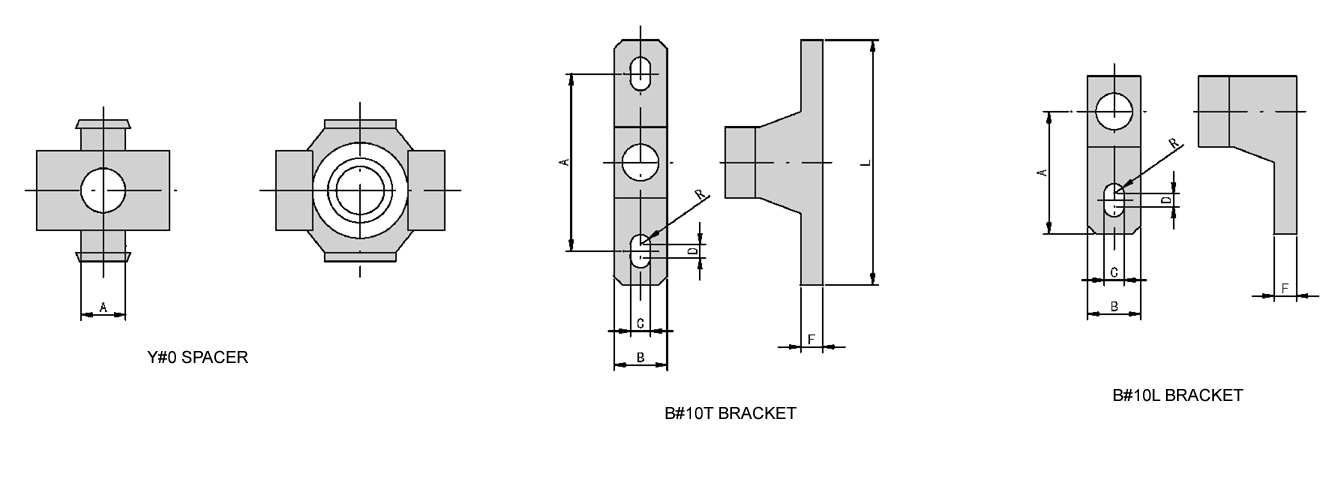

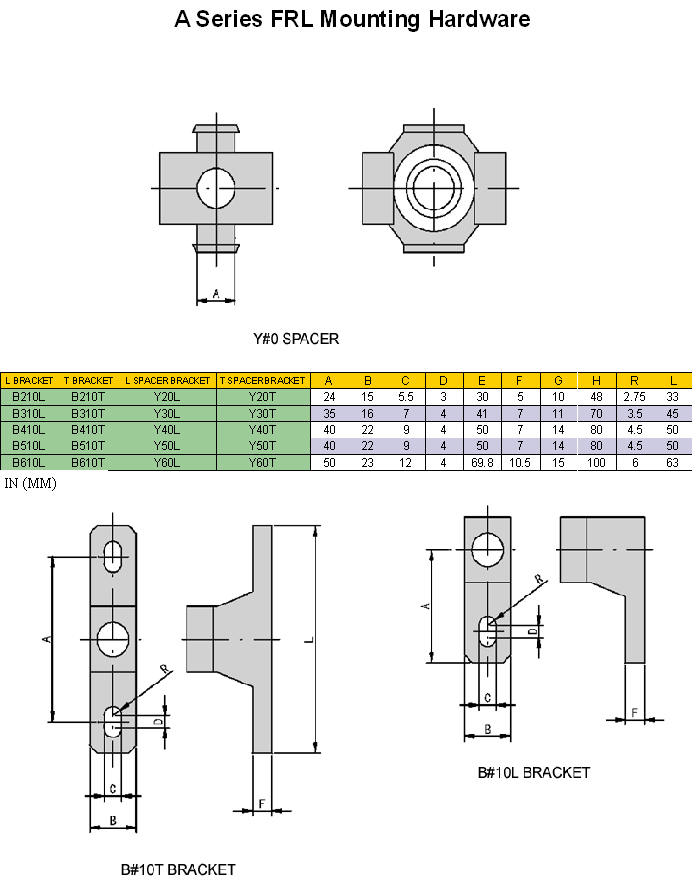

FRL Mounting Hardware Dimensions - L & T Brackets and Spacers

L Bracket L Spacer Bracket For T Bracket T Spacer Bracket For A B C D E F G H R L
B110LY10LAC1000B110TY10TAC101020124.532.558402.2527
B210LY20LAC2000B210TY20TAC201024155.5330510482.7533
B310LY30LAC3000B310TY30TAC301035167441711703.545
B410LY40LAC4000B410TY40TAC401040229450714804.550
B510LY50LAC4000-06B510TY50TAC4010-0640229450714804.550
B610LY60LAC5000B610TY60TAC5010502312469.810.515100663
Units in mm

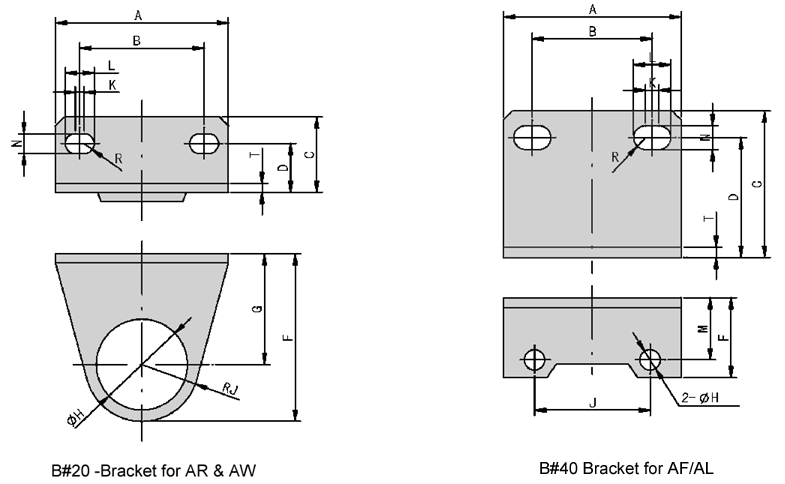

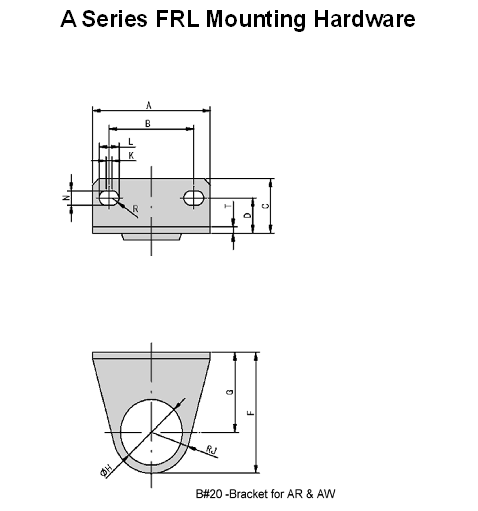

FRL Mounting Hardware Dimensions - Brackets

Bracket A B C D F G H J K L M N R t Mounting Screw For
B1204028171137.82520.512.326.5 4.52.252 AR/AW1000
B22055343519503033.520105.4 5.42.72.3 AR/AW2000-2500
B320534021.514643942.5251.56.5 6.53.252.3 AR/AW3000
B4207054271879.249.252.53028.5 8.54.252.3 AR/AW4000-5000
B2404027332718 4.52638.4145.42.72.3M4X8AF/AL2000
B3405340393222.5 4.5351.58196.53.252.3M4X8AF/AL3000
B4407054473831.5 5.547210.5208.54.252.3M5X10AF/AL4000-04
B5407054473831.5 5.547210.5208.54.252.3M5X10AF/AL4000-06
B6409066645243 6.56021329115.53.2M6X10AF/AL5000
Units in mm

Air Pressure Gauge

Pressure Gauge Specifications & Dimensions

Model Pressure Range NPT A B C D E For Model
GE 1 1/2-160 0 - 1.1Mpa
0 - 160PSI
G1/16 26 17.5 11 6.5 21 AR1000
AW1000
GE 1 1/2-160 0 - 1.1Mpa
0 - 160PSI
G1/8 42 38.5 24 10 11 AR2000-3000
AW2000-3000
GE 2-160 0 - 1.1Mpa
0 - 160PSI
G1/4 52.5 43.5 25 10 14 AR4000-5000
AW4000-5000
