AB Series Aluminum Body Filter-Regulator-Lubricator (FRL) Specifications

Specifications
Part No. AL2000
Description Lubricator
Port Size (NPT) 1/4"
Flow Rate (SCFM) 16
Filtration (Microns)
Max. Pressure (PSI) 150
Operating Temperature (°F) 40-140
Recommended Oil ISO VG 32
Caution Avoid contacting with Thinner, Carbon Tetrachloride, Cloroform, Ethylacetate, Nitric Acid, Sulfiric Acid, Anilene, Kerosene, and other Organic Solvents.

Also avoid direct sun rays.
Materials of Construction
Metal Body Aluminum Alloy (Epoxy Coated)
Plastic Bowl Polycarbonate
Body Shield Painted Steel
Filter Sintered Brass (40µ) or Plastic (5µ)

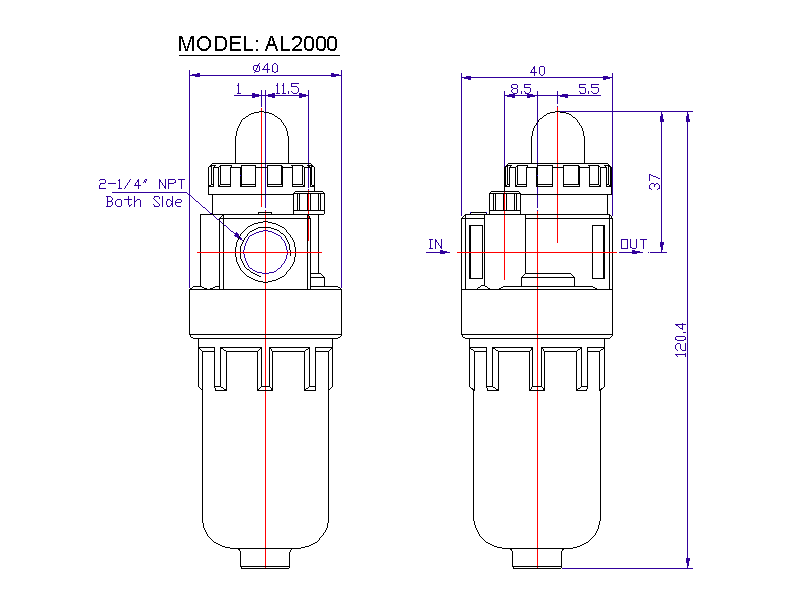

Dimensions: AL2000 (Unit = mm)
