Solenoid Valves & Air-Pilot Activated Valves
STC's high performance solenoid and air-pilot activated valves offer reliability, high-flow rates, compact and rugged designs, low power consumption, high-speed response, long life cycle, DIN connections with built-in surge suppression, and indicator lights. Numerous options, including built-in push-in fittings, manifolds, pre-wired electric connections, and namur valves are available. Installation, maintenance, and control are simple! For a list of valve functions, check out our Solenoid Valve Guide at the bottom of this page.
*DESIGN CHANGES* Please note that design changes will be implemented for the 3V210-1/4, 3V410-1/2, and 4V210-1/4 valve models. For a detailed explanation of the changes, please see the following document: Pneumatic Valve Design Changes
STC Solenoid Air Valves Selection Guide (Click on a picture to get details) |
||||||
| Direct Acting 2 & 3 Way Valves | Stacking Valves | 3 Way 2 Position Single Solenoid Valve |
3 Way 2 Position Double Solenoid Valves |
4 Way 2 Position Single Solenoid Valves |
Pneumatic Valve Specifications | |
 |
 |
 |
 |
 |
 |
|
| 4 Way 2 Position Double Solenoid Valves |
4 Way 3 Position Double Solenoid Valves |
Namur Valves | Air Piloted Valves | Integrated Manifolds | Solenoid Coils | Solenoid Valve Guide |
|
|
 |
 |
 |
 |
 |
|
STC Solenoid Valves (Please specify the voltage when ordering.) |
||||||||||
| Item | Part No. | Unit Price | Picture | Port Size (NPT) | Voltage | Electrical Connection | Features | Cv/Flow Rate | Power Rating | Valve Symbol/Catalog |
| 1 | 2P025-1/8 | $25.16 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 2/2/1 Two Way, Direct Acting Operating Temp: 14-140 deg. F Operating Pressure: Vacuum - 115PSI Response Time <20ms |
Cv = 0.23 22 SCFM @ 100PSI |
3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
Download Catalog: 2P025.PDF |
| 2 | 2P025-1/4 | $25.16 | 1/4" NPT | |||||||
| 3 | 2V025-1/8 | $25.68 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 2/2/1 Two Way, Direct Acting Normally Closed Operating Temp: 14-140 deg. F Operating Pressure: Vacuum - 115PSI Response Time <20ms |
Cv = 0.23 22 SCFM @ 100PSI |
3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
 Download Catalog: 2V025.PDF |
| 4 | 2V025-1/4 | $25.68 | 1/4" NPT | |||||||
| 5 | 2V035-1/8 | $25.68 | 1/8" NPT 10-32 Exh. |
1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 3/2/1 Three Way, Direct Acting Normally Closed or Open Operating Temp: 14-140 deg. F Operating Pressure: Vacuum - 115PSI Response Time <20ms |
Cv = 0.05 5 SCFM @ 100PSI Orifice: 1mm |
3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
Download Catalog: |
|
| 6 | 2V035-1/4 | $25.68 | 1/4" NPT 10-32 Exh. |
|||||||
| 7 | 2V1-1/8 | $25.68 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 2/2/1 Two Way, Direct Acting Normally Closed Stacking Operating Temp: 14-140 deg. F Operating Pressure: Vacuum - 115PSI Response Time <20ms |
Cv = 0.23 22 SCFM @ 100PSI |
3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
Download Catalog: 2V1-3V1 |
| 8 | 3V1-1/8 | $25.68 | 1/8" NPT 10-32 Exh. |
Port/Position/Solenoid: 3/2/1 Three Way, Direct Acting Normally Closed or Open Stacking Operating Temp: 14-140 deg. F Operating Pressure: Vacuum - 115PSI Response Time <20ms |
Cv = 0.05 5 SCFM @ 100PSI Orifice: 1mm |
Download Catalog: 2V1-3V1 |
||||

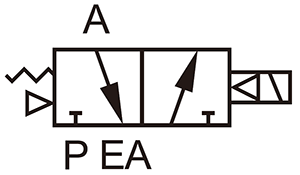

| Three Way, Two Position, Single Solenoid Valves (3/2/1) | ||||||||||
| 9 | 3V110-1/8 | $33.12 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 3/2/1 Three Way Valve Two Position Single Solenoid Standard: Normally Closed (NC) Option: Normally Open (NO) Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog: 3V110-410.PDF 3V210-1/4 & 3V410-1/2 Design Changes |

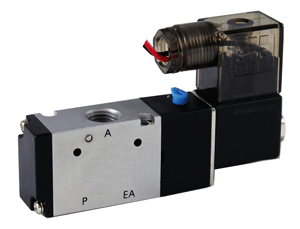

| 10 | 3V210-1/4 | $33.12 | 1/4" NPT | Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 11 | 3V310-1/4 | $44.61 | 1/4" NPT | Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 12 | 3V310-3/8 | $44.61 | 3/8" NPT | Cv = 1.68 80SCFM @ 100PSI |
||||||
| 13 | 3V410-1/2 | $77.73 | 1/2" NPT | Cv = 2.79 160SCFM @ 100PSI |
||||||

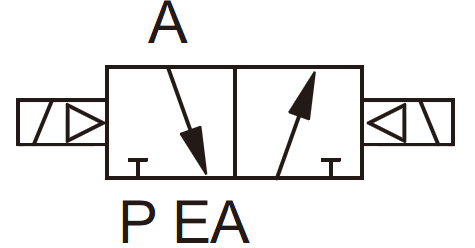

| Three Way, Two Position, Double Solenoid Valves (3/2/2) | ||||||||||
| 14 | 3V120-1/8 | $50.71 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 3/2/2 Three Way Valve Two Position Double Solenoid Standard: Normally Closed (NC) Option: Normally Open (NO) Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog 3V120-420.PDF |
| 15 | 3V220-1/4 | $50.71 | 1/4" NPT | Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 16 | 3V320-3/8 | $62.18 | 3/8" NPT | Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 17 | 3V420-1/2 | $108.82 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||

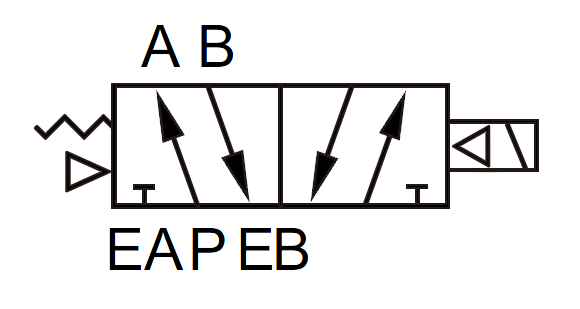

| Five Port, Four Way, Two Position, Single Solenoid Valves (5/2/1) | ||||||||||
| 18 | 4V110-1/8 | $34.48 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 5/2/1 Four Way Valve Single Solenoid Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog: 4V110-410.PDF 4V210-1/4 Design Changes |
| 19 | 4V210-1/4 | $33.12 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 20 | 4V310-1/4 | $44.61 | 1/4" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 21 | 4V310-3/8 | $44.61 | 3/8" (inlet/outlet) 1/4 (exhaust) |
Cv = 1.68 80SCFM @ 100PSI |
||||||
| 22 | 4V410-1/2 | $77.73 | 1/2" NPT | Cv = 2.79 160SCFM @ 100PSI |
||||||
| Five Port, Four Way, Two Position, Double Solenoid Valves (5/2/2) | ||||||||||

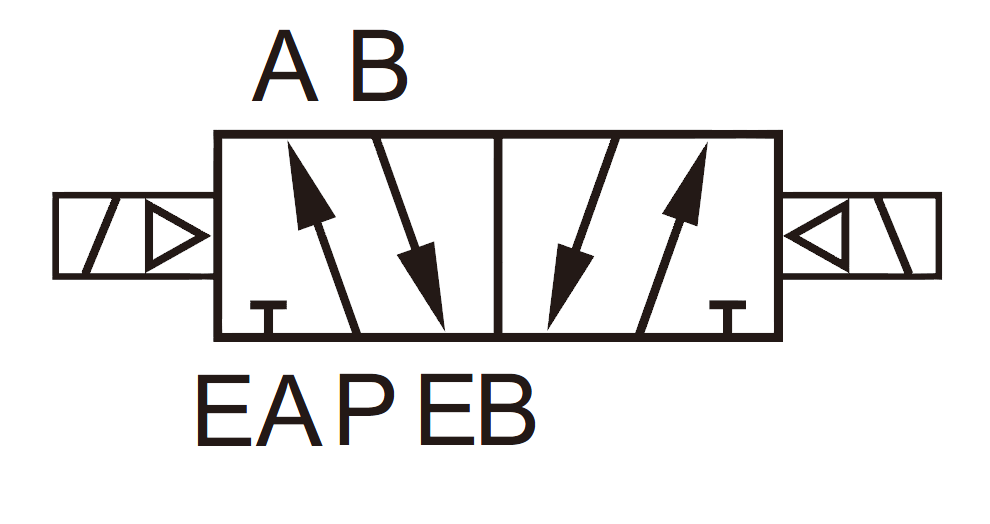

| 23 | 4V120-1/8 | $50.71 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 5/2/2 Four Way Valve Double Solenoid Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog 4V120-420.PDF |
| 24 | 4V220-1/4 | $50.71 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 25 | 4V320-1/4 | $62.18 | 1/4" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 26 | 4V320-3/8 | $62.18 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 27 | 4V420-1/2 | $108.82 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| Five Port, Four Way, Three Position, Double Solenoid Valves (5/3/2) | ||||||||||

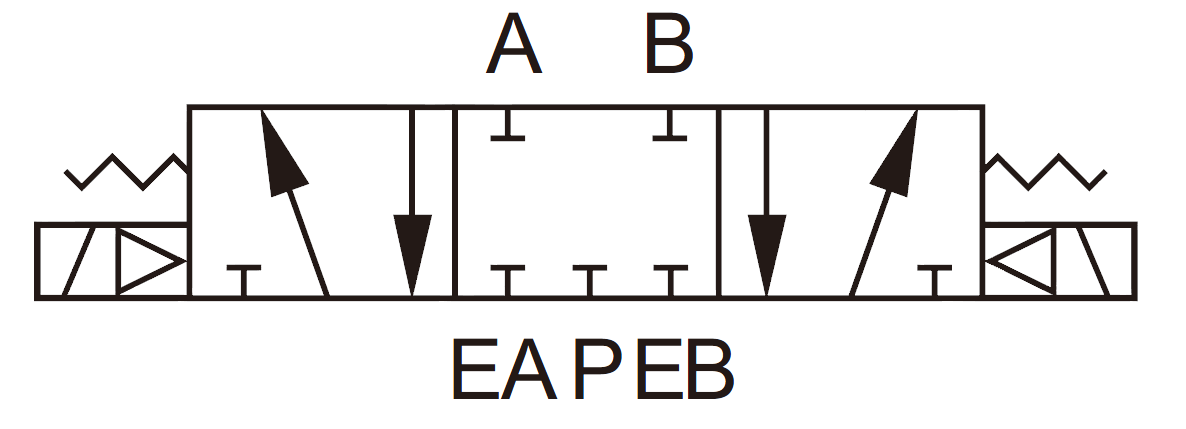

| 28 | 4V130C-1/8 | $101.79 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 5/3/2 Four Way Valve Three Position Double Solenoid Closed Center Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog: 4V130-430.PDF |
| 29 | 4V230C-1/4 | $104.80 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 30 | 4V330C-3/8 | $120.99 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 31 | 4V430C-1/2 | $155.47 | 1/2" NPT | Cv = 2.79 160SCFM @ 100PSI |
||||||
| 32 | 4V130E-1/8 | $101.79 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 5/3/2 Four Way Valve Three Position Double Solenoid Exhausted Center Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog 4V130-430.PDF |
| 33 | 4V230E-1/4 | $104.80 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 34 | 4V330E-3/8 | $120.99 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 35 | 4V430E-1/2 | $155.47 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||

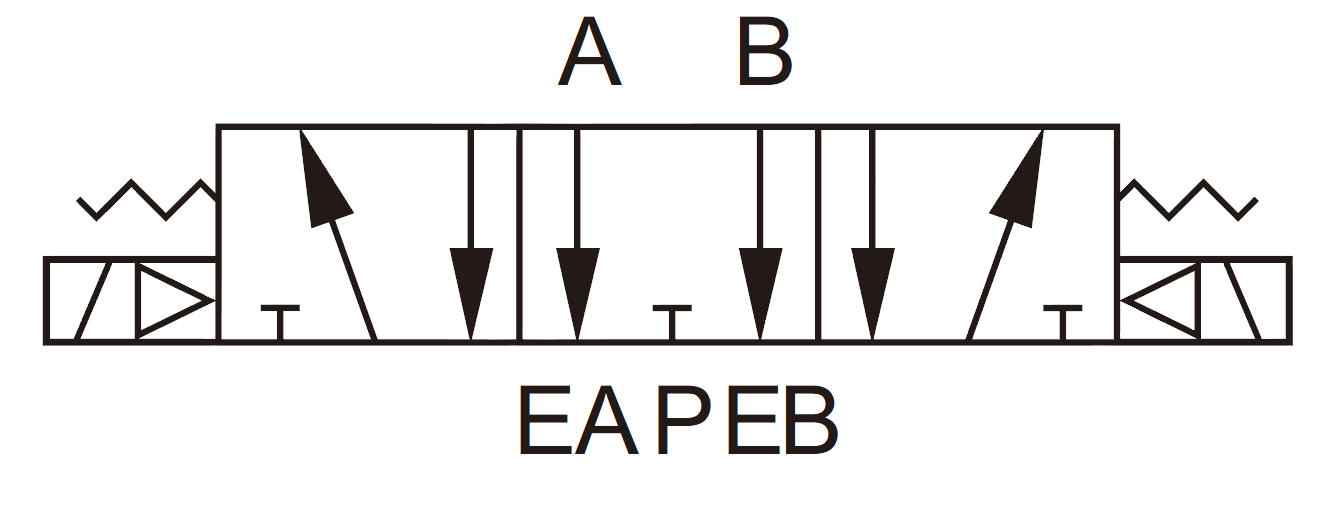

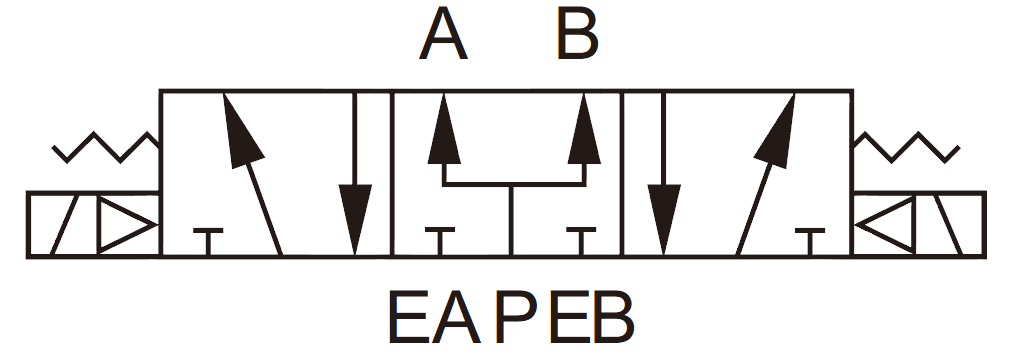

| 36 | 4V130P-1/8 | $101.79 |
|
1/8" NPT | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED) |
Port/Position/Solenoid: 5/3/2 Four Way Valve Three Position Double Solenoid Pressure Center Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI Response Time <20ms |
Cv = 0.67 25 SCFM @ 100PSI |
2.5W |  Download Catalog: 4V130-430.PDF |
| 37 | 4V230P-1/4 | $104.80 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W | |||||
| 38 | 4V330P-3/8 | $120.99 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 39 | 4V430P-1/2 | $155.47 | 1/2" NPT | Cv = 2.79 160SCFM @ 100PSI |
||||||

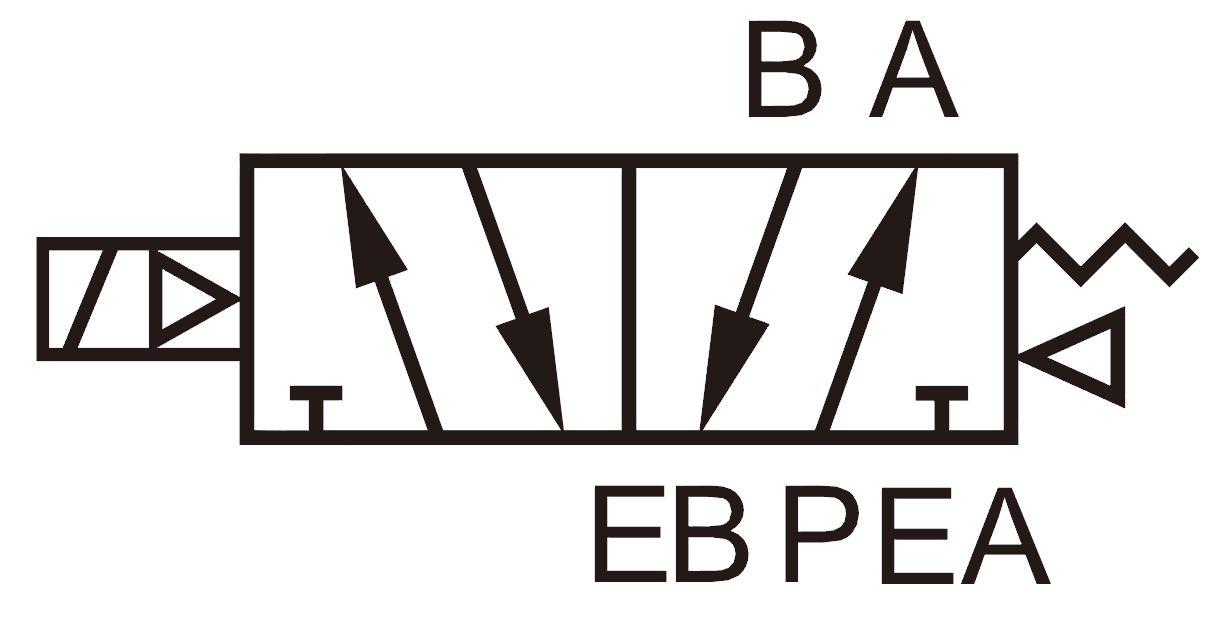

| Five Port, Four Way, Two Position, Single Solenoid NAMUR Valves (5/2/1) | ||||||||||

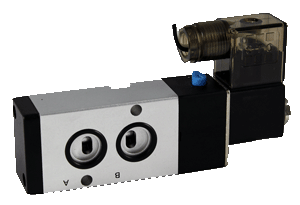

| 40 | 4V210-1/4B | $39.85 |
|
1/4" (inlet) 1/8" (exhaust) |
1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |

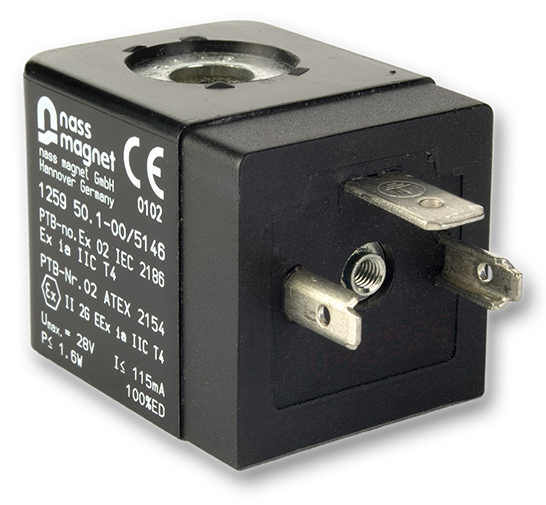

G = Grommet D = DIN (with LED) E = Explosion Proof Coil IS = Intrinsically Safe (24VDC Only) |
Port/Position/Solenoid: 5/2/1 Four Way Valve Two Position Single Solenoid Actuator Mount (NAMUR) Operating Temp: 14-140 deg. F Operating Pressure: 21 - 115PSI |
Cv = 0.89 53 SCFM @ 100PSI |
3W / 4.8W |  Download Catalog 4V310-1/4B.PDF |
| 41 | 4V310-1/4B | $51.39 | 1/4" (inlet) 1/4" (exhaust) Namur |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 42 | 4V310-3/8B | $51.39 | 3/8" (inlet) 1/4" (exhaust) Namur |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| Item | Part No. | Unit Price | Valve Picture | Port Size (NPT) | Description | # Ways/Port/ Position/Pilot |
Cv/Flow Rate | Operating Pressure | Valve Symbol/Catalog | |
| 43 | 3A110-1/8 | $25.68 |
|
1/8" NPT | 3 Way 2 Position Single Pilot Air Valve |
3/3/2/1 | Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
 Download Catalog: 3A110-410.PDF |
|
| 44 | 3A210-1/4 | $25.68 | 1/4" NPT | Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 45 | 3A310-3/8 | $31.10 | 3/8" NPT | Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 46 | 3A410-1/2 | $51.39 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 47 | 3A120-1/8 | $32.45 |
 |
1/8" NPT | 3 Way 2 Position Double Pilot Air Valve |
3/3/2/2 | Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
 Download Catalog: 3A120-420.PDF |
|
| 48 | 3A220-1/4 | $33.12 | 1/4" NPT | Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 49 | 3A320-3/8 | $39.21 | 3/8" NPT | Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 50 | 3A420-1/2 | $66.91 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 51 | 4A110-1/8 | $25.68 |
 |
1/8" NPT | 4 Way 2 Position Single Pilot Air Valve |
4/5/2/1 | Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
 Download Catalog: 4A110-410.PDF |
|
| 52 | 4A210-1/4 | $25.68 | 1/4" (inlet/outlet) 1/8"(exhaust) |
Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 53 | 4A310-3/8 | $31.10 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 54 | 4A410-1/2 | $51.39 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 55 | 4A120-1/8 | $32.45 |
|
1/8" NPT | 4 Way 2 Position Double Pilot Air Valve |
4/5/2/2 | Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
 Download Catalog: 4A120-420 PDF |
|
| 56 | 4A220-1/4 | $33.12 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 57 | 4A320-3/8 | $39.21 | 3/8" (inlet/outlet 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 58 | 4A420-1/2 | $66.91 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 59 | 4A130C-1/8 | $66.91 |
|
1/8" NPT | 4 Way 3 Position Closed Center Double Pilot Air Valve |
4/5/3/2 Closed Center |
Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
Download Catalog: 4A130-430.PDF |
|
| 60 | 4A230C-1/4 | $84.94 | 1/4" (inlet/outlet) 1/8"(exhaust) |
Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 61 | 4A330C-3/8 | $98.02 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 62 | 4A430C-1/2 | $116.55 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 63 | 4A130E-1/8 | $66.91 |
|
1/8" NPT | 4 Way 3 Position Exhausted Center Double Pilot Air Valve |
4/5/3/2 Pressure Center |
Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
Download Catalog: 4A130-430.PDF |
|
| 64 | 4A230E-1/4 | $84.94 | 1/4" (inlet/outlet) 1/8" (exhaust) |
Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 65 | 4A330E-3/8 | $98.02 | 3/8" (inlet/outlet 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 66 | 4A430E-1/2 | $116.55 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
| 67 | 4A130P-1/8 | $66.91 |
|
1/8" NPT | 4 Way 3 Position Pressure Center Double Pilot Air Valve |
4/5/3/2 Exhaust Center |
Cv = 0.67 25 SCFM @ 100PSI |
Valve: 0 - 115PSI Pilot: 40PSI |
Download Catalog: 4A130-430.PDF |
|
| 68 | 4A230P-1/4 | $84.94 | 1/4" (inlet/outlet) 1/8"(exhaust) |
Cv = 0.78 53 SCFM @ 100PSI |
||||||
| 69 | 4A330P-3/8 | $98.02 | 3/8" (inlet/outlet) 1/4" (exhaust) |
Cv = 1.68 80 SCFM @ 100PSI |
||||||
| 70 | 4A430P-1/2 | $116.55 | 1/2" NPT | Cv = 2.79 160 SCFM @ 100PSI |
||||||
Integrated Aluminum Base Mounted Manifolds
|
||||||||||
| Item | Part No. | Unit Price | Manfiold Picture | Port Size (NPT) / No. Stations |
Description | |||||
| 71 | 3V-100M-2 | $15.03 |
|
1/8" port 2 STATIONS |
Integrated Base for Mounting 3V-100 & 3A-100 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 72 | 3V-100M-4 | $30.05 | 1/8" port 4 STATIONS |
|||||||
| 73 | 3V-100M-6 | $45.06 | 1/8" port 6 STATIONS |
|||||||
| 74 | 3V-100M-8 | $60.07 | 1/8" port 8 STATIONS |
|||||||
| 75 | 3V-100M-16 | $120.16 | 1/8" port 16 STATIONS |
|||||||
| 76 | 3V-100M-B | $6.60 | - | Blank Plate for 3V-100M Manifold | ||||||
| 77 | 3V-100M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 3V-100M Manifold | ||||||
| 78 | 3V-200M-2 | $15.03 |
|
1/4" port 2 STATIONS |
Integrated Base for Mounting 3V-200 & 3A-200 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 79 | 3V-200M-4 | $30.05 | 1/4" port 4 STATIONS |
|||||||
| 80 | 3V-200M-6 | $45.06 | 1/4" port 6 STATIONS |
|||||||
| 81 | 3V-200M-8 | $60.07 | 1/4" port 8 STATIONS |
|||||||
| 82 | 3V-200M-16 | $120.16 | 1/4" port 16 STATIONS |
|||||||
| 83 | 3V-200M-B | $6.60 | - | Blank Plate for 3V-200M Manifold | ||||||
| 84 | 3V-200M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 3V-200M Manifold | ||||||
| 85 | 3V-300M-2 | $22.54 |
|
3/8" port 2 STATIONS |
Integrated Base for Mounting 3V-300 & 3A-300 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 86 | 3V-300M-4 | $45.06 | 3/8" port 4 STATIONS |
|||||||
| 87 | 3V-300M-6 | $67.60 | 3/8" port 6 STATIONS |
|||||||
| 88 | 3V-300M-8 | $90.12 | 3/8" port 8 STATIONS |
|||||||
| 89 | 3V-300M-16 | $180.23 | 3/8" port 16 STATIONS |
|||||||
| 90 | 3V-300M-B | $6.60 | - | Blank Plate for 3V-300M Manifold | ||||||
| 91 | 3V-300M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 3V-300M Manifold | ||||||
| 92 | 3V-400M-2 | $37.54 |
|
1/2" port 2 STATIONS |
Integrated Base for Mounting 3V-400 & 3A-400 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 93 | 3V-400M-4 | $75.11 | 1/2" port 4 STATIONS |
|||||||
| 94 | 3V-400M-6 | $112.65 | 1/2" port 6 STATIONS |
|||||||
| 95 | 3V-400M-8 | $150.21 | 1/2" port 8 STATIONS |
|||||||
| 96 | 3V-400M-16 | $300.40 | 1/2" port 16 STATIONS |
|||||||
| 97 | 3V-400M-B | $6.60 | - | Blank Plate for 3V-400M Manifold | ||||||
| 98 | 3V-400M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 3V-400M Manifold | ||||||
| 99 | 4V-100M-2 | $15.03 |
|
1/4" port 2 STATIONS |
Integrated Base for Mounting 4V-100 & 4A-100 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 100 | 4V-100M-4 | $30.05 | 1/4" port 4 STATIONS |
|||||||
| 101 | 4V-100M-6 | $45.06 | 1/4" port 6 STATIONS |
|||||||
| 102 | 4V-100M-8 | $60.07 | 1/4" port 8 STATIONS |
|||||||
| 103 | 4V-100M-16 | $120.16 | 1/4" port 16 STATIONS |
|||||||
| 104 | 4V-100M-B | $6.60 | - | Blank Plate for 4V-100M Manifold | ||||||
| 105 | 4V-100M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 4V-100M Manifold | ||||||
| 106 | 4V-200M-2 | $15.03 |
|
1/4" port 2 STATIONS |
Integrated Base for Mounting 4V-200 & 4A-200 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 107 | 4V-200M-4 | $30.05 | 1/4" port 4 STATIONS |
|||||||
| 108 | 4V-200M-6 | $45.06 | 1/4" port 6 STATIONS |
|||||||
| 109 | 4V-200M-8 | $60.07 | 1/4" port 8 STATIONS |
|||||||
| 110 | 4V-200M-16 | $120.16 | 1/4" port 16 STATIONS |
|||||||
| 111 | 4V-200M-B | $6.60 | - | Blank Plate for 4V-200M Manifold | ||||||
| 112 | 4V-200M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 4V-200M Manifold | ||||||
| 113 | 4V-300M-2 | $22.54 |
|
3/8" port 2 STATIONS |
Integrated Base for Mounting 4V-300 & 4A-300 Series Solenoid Valves
(Includes Mounting hardware and seal) |
|||||
| 114 | 4V-300M-4 | $45.06 | 3/8" port 4 STATIONS |
|||||||
| 115 | 4V-300M-6 | $67.60 | 3/8" port 6 STATIONS |
|||||||
| 116 | 4V-300M-8 | $90.12 | 3/8" port 8 STATIONS |
|||||||
| 117 | 4V-300M-16 | $180.23 | 3/8" port 16 STATIONS |
|||||||
| 118 | 4V-300M-B | $6.60 | - | Blank Plate for 4V-300M Manifold | ||||||
| 119 | 4V-300M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 4V-300M Manifold | ||||||
| 120 | 4V-400M-2 | $37.54 |
|
1/2" port 2 STATIONS |
Integrated Base for Mounting 4V-400 & 4A-400 Series Solenoid Valves
(Includes Mounting hardware and seal) |

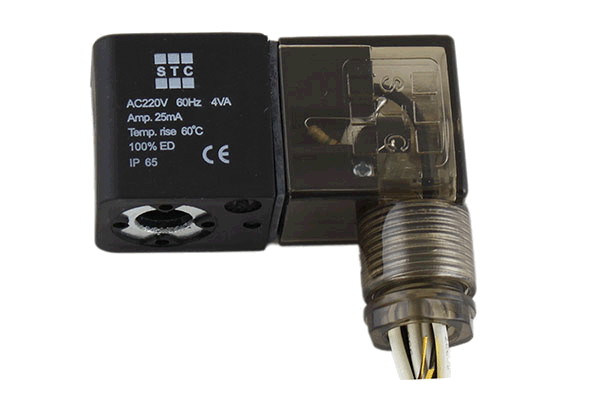

|||||
| 121 | 4V-400M-4 | $75.11 | 1/2" port 4 STATIONS |
|||||||
| 122 | 4V-400M-6 | $112.65 | 1/2" port 6 STATIONS |
|||||||
| 123 | 4V-400M-8 | $150.21 | 1/2" port 8 STATIONS |
|||||||
| 124 | 4V-400M-16 | $300.40 | 1/2" port 16 STATIONS |
|||||||
| 125 | 4V-400M-B | $6.60 | - | Blank Plate for 4V-400M Manifold | ||||||
| 126 | 4V-400M-KIT | $9.29 | - | Blank Plate, Gasket, & Mounting Screws Set for 4V-400M Manifold | ||||||
| Item | Part No. | Unit Price | Picture | Voltage | Elecrical Connection | Power Rating | Applications | Electrical Connections | |
| 127 | 100C | $10.83 |
 |
1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with LED indicator and conduit connector) | 2.5W | For 100 Series Solenoid Valves | Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification |
|
| 128 | 100C | $10.83 |
 |
G = Grommet | 2.5W | ||||
| 129 | 200C | $10.83 |
 |
1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with LED indicator and conduit connector) | 3W 4.8W 6.5W |
For 200-400 Series Solenoid Valves | Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification |
|

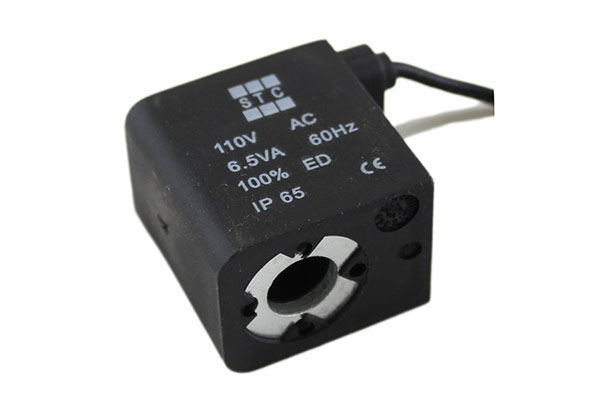

| 130 | 200C | $10.83 |
 |
G = Grommet | 3W 4.8W 6.5W |
||||
| 131 | 200C | $117.15 |
Explosion Proof Coils.pdf |
1-E = 12VDC 2-E = 24VDC 3-E = 110VAC 4-E = 220VAC (50/60Hz) |
1/2" NPT conduit connection & 24" Three-Strand Wires | ATEX Explosion Proof Coil for
Models: 2P025, 2V025, 3P010, 2S012-020, 3S012, 2V130-250, 3V200-400, 4V200-400 (Valve Body is Not Included) |
IP65, Class F Insulation, 100% Duty Cycle DC = 4.5W (12VDC) / 4.6W (24VDC); AC = 6.8VA 1/2" NPT Conduit Connection with 24" Three-Strand Wires RoHS Compliant CSA 202633 Certificate Specifications: Class I, Div 1, Groups A, B, C, & D Class I, Div 2, Groups A, B, C, & D Class II, Groups E, F, & G; Class III FM 3006713 Certificate Specifications: Class I, Div 1, Groups A, B, C, D, T4, Ta = 60°C Encapsulation/Exp. Class I, Zone 1, AEx m II T4, Ta = 60°C Dust-Ignition Class II/III, Div 1, Groups E, F, & G, T4, Ta = 60°C Nonincendive Class I, Div 2, Groups A, B, C, D, T4, Ta = 60°C Suitable for Class II, II, Div 2, Groups E, F, G, T4, Ta = 60°C |
||
| 132 | 200C | $117.15 |
Explosion Proof Coils.pdf |
1-ATEX = 12VDC 2-ATEX = 24VDC 2A-ATEX = 24VAC 3-ATEX = 110VAC 4-ATEX = 220VAC (50/60Hz) |
DIN 43650B Connection with 10ft 3-Wired Cable & Sleeve | ATEX Explosion Proof Coil for
Models: 2P025, 2V025, 3P010, 2S012-020, 3S012, 2V130-250, 3V200-400, 4V200-400 (Valve Body is Not Included) |
ATEX Explosion Proof Coil Ex II 2 G Ex mb IIC T4Gb Ex 2 D EX mb tb IIIC T130°C Db IP65, Class F Insulation, 100% Duty Cycle Max. Media Temp. 176°F (180°C) Ambient Temp: -4 to 122°F (-20 to 50°C) RoHS Compliant |
||
| 133 | 200C | $117.15 |  |
2-IS-(3/2) = 24VDC |
DIN 43650B Connection, Includes Armature Tube Assembly (must be intact for IS rating) | Intrinsically Safe Coil for
Models: 3V200-400, 4V200-400 (Valve Body is Not Included) |
Intrinsically Safe Coil Approved T5 CL. I; GR. A, B, C and D CL. II; GR. E, F and G CL. III; Div. 1 Hazardous Location 24VDC, 0.05A; U Max. 28V; I ≤ 115mA; P≤ 1.6W T Amb. = 50°C (max); 100%ED RoHS Compliant 15VDC @ 37mA Can be used with Siemens DCS with voltage out 17.4VDC @ 40mA |
||
| To connect DIN coil: 1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil. 2. From the screw opening, use the screw to push the terminal block out of the plastic housing. 3. Note the 1, 2, and ground markings on the underside of the DIN enclosure. 4. For DC DIN coil, connect 1 to Positive, 2 to Negative. 5. For AC DIN coil, connect 1 to HOT wire, 2 to Neutral wire, and if required, connect ground to ground wire. To connect Grommet coil: 1. For DC Coil, connect one of the two wires to Positive, and the other wire to Negative. 2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to Neutral wire. |
|||||||||
| Valve Type | 3A & 4A 100-400 Series Valves | 3V & 4V 100-400 Series Valves | 2V025-035, 2P025 Series Valves | 2V1, 3V1 Series Valves | ||||
| Port & Mounting | Body Ported, Manifold Mounted | Body Ported, Manifold Mounted | Body Ported, Stacking or Manifold Mounted | Body Ported, Stacking or Manifold Mounted | ||||
| Action & Motion | Air Pilot, Spool Design | Internal Pilot, Spool Design | Direct Acting | Direct Acting | ||||
| Operating Pressure | 0 to 115 PSI | 21 to 115 PSI | Vacuum to 115 PSI | Vacuum to 115 PSI | ||||
| Coil Insulation & Protection Class | N/A | F Class, IP65 (CE Certification) | F Class, IP65 (CE Certification) | F Class, IP65 (CE Certification) | ||||
| Coil Duty Cycle | 100% ED | 100% ED | 100% ED | 100% ED | ||||
| Manual Override | N/A | Non-Locking: 100 series; Locking: 200 to 400 series |
Non-Locking | Non-Locking | ||||
| Electrical Connection | N/A | D = DIN (with LED indicator, conduit terminal), G = Grommet (12" - 18" Lead Wire) | ||||||
| Working Medium | 40 micron filtered air or inert gas | 40 micron filtered air or inert gas | 40 micron filtered air, inert gas & liquid, non-corrosive liquid | |||||
| Maximum Pressure | 180 PSI @ 75 Deg. F | |||||||
| Operating Temperature | 14 to 140 Deg. F (-10 to 60 Deg. C) | |||||||
| Body Material | 6061-T6 Aluminum | 6061-T6 Aluminum (Engineered Plastic for 2P Series) | 6061-T6 Aluminum | |||||
| Seal Material | NBR (Buna N) | |||||||
| Lubrication | Not Required | |||||||
| Service | Air | |||||||
| Valve Configurations | Functions | |||||||
| 2 Way Valve Configuration: 2 Position Valve | to turn on and off | |||||||
| 3 Way Valve Configuration: 2 Position Valve | to fully extend single acting cylinder (spring return cylinder) | |||||||
| 4 Way Valve Configuration: 2 Position Valve | to fully extend and retract double acting cylinder | |||||||
| 4 Way Valve Configuration: 3 Position, Closed-Center Valve | to stop a double acting cylinder in partial stroke, all ports are shut off | |||||||
| 4 Way Valve Configuration: 3 Position, Exhaust-Center Valve | to have both cylinder ports open to exhaust such that the cylinder can be extended and retracted manually to facilitate set-up | |||||||
| 4 Way Valve Configuration: 3 Position, Pressure-Center Valve | to stop a double acting cylinder in partial stroke with pressure on both ends of the cylinder | |||||||
| Home | Terms of Use | Terms of Sale | Career | Contact Us | Click Here to Order |
|
Sizto Tech Corporation © 2001-
. All rights reserved. Last modified: November 1, 2021.
Information contained herein may be changed without prior notification. |
|||||
