3V-100-400M Manifold Dimensions (Units in mm)

Download PDF Drawings:   3V-100M   3V-200M   3V-300M   3V-400M

Part No. Valve Picture Port Size & No. of Stations Description
3V-100M-4 1/4" Port
4 Stations
Integrated Base for Mounting 3V-100 & 3A-100 Series Solenoid Valves
(Includes Mounting hardware and seal)
3V-100M-8 1/4" Port
8 Stations
3V-200M-4 1/4" Port
4 Stations
Integrated Base for Mounting 3V-200 & 3A-200 Series Solenoid Valves
(Includes Mounting hardware and seal)
3V-200M-8 1/4" Port
8 Stations
3V-300M-4 3/8" Port
4 Stations
Integrated Base for Mounting 3V-300 & 3A-300 Series Solenoid Valves
(Includes Mounting hardware and seal)
3V-300M-8 3/8" Port
8 Stations
3V-400M-4 1/2" Port
4 Stations
Integrated Base for Mounting 3V-400 & 3A-400 Series Solenoid Valves
(Includes Mounting hardware and seal)
3V-400M-8 1/2" Port
8 Stations

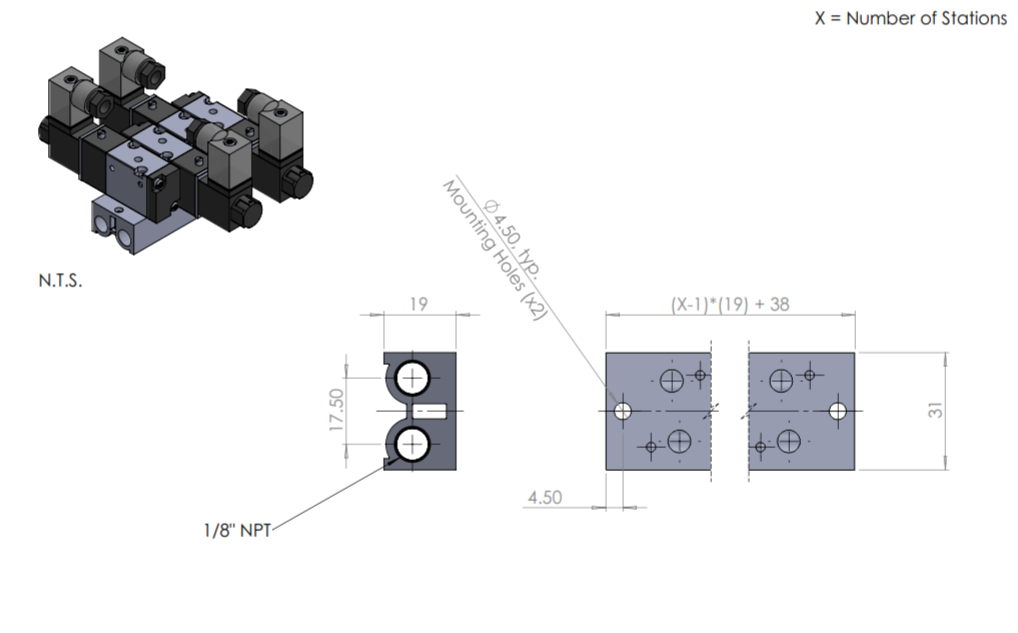

3V-100M (Units in mm)
3V-100M Pneumatic Valve Manifold

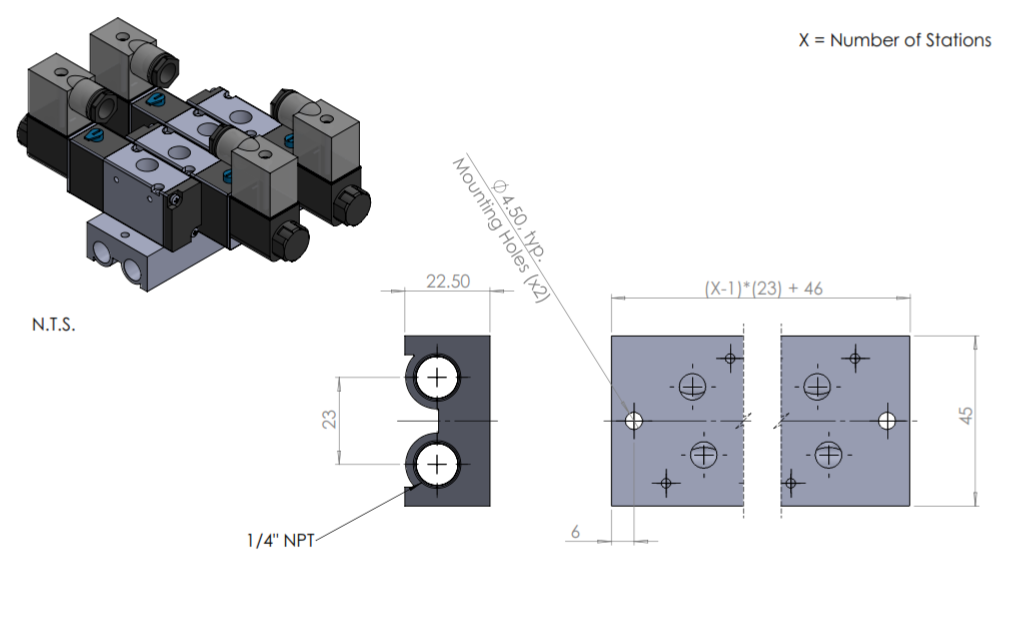

3V-200M(Units in mm)
Pneumatic Valve Manifold

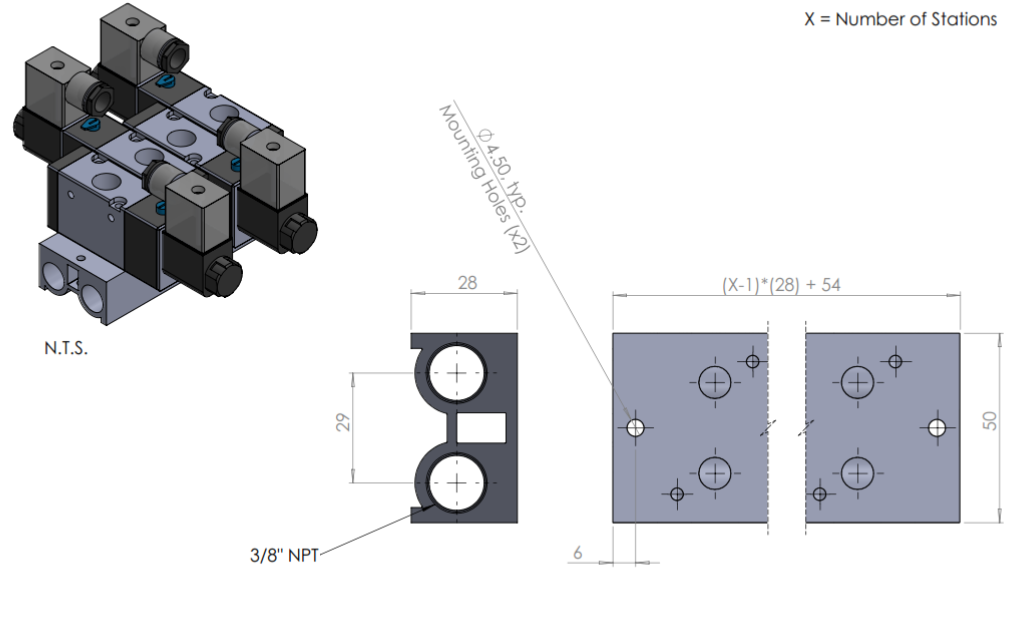

3V-300M(Units in mm)
3V-300M Pneumatic Valve Manifold

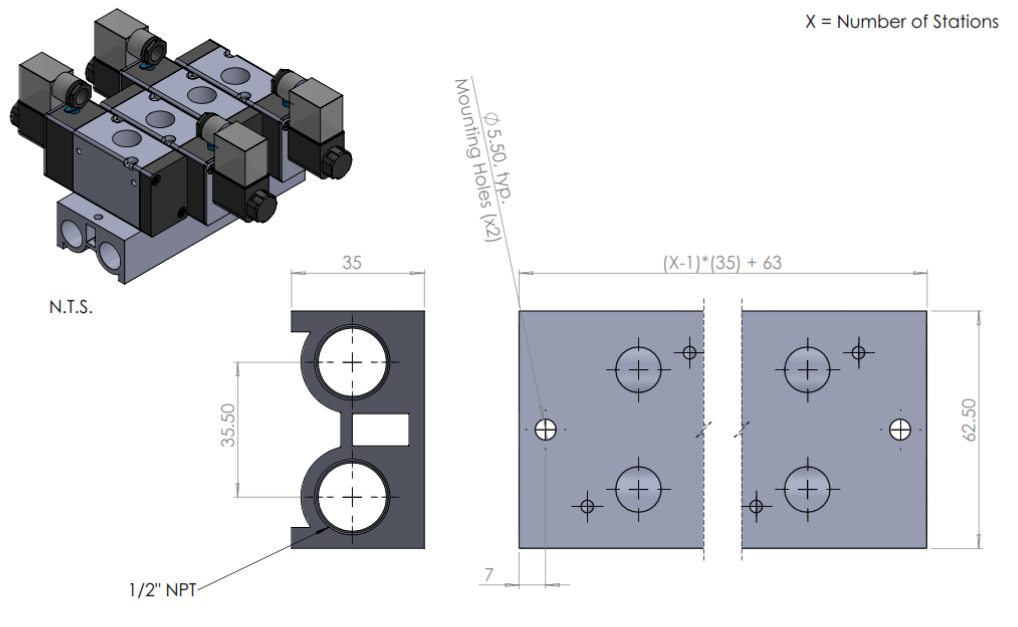

3V-400M(Units in mm)
4V-400M Pneumatic Valve Manifold
