Electrically Actuated Ball Valve Specifications and Dimensions: E Series

Specifications
Single Acting E 1/4 E 3/8 E 1/2 E 3/4 E 1 E 1 1/4 E 1 1/2 E 2 E 2 1/2 E 3 E 4
Port Size 1/4" NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1 1/4" NPT 1 1/2" NPT 2" NPT 2 1/2" NPT 3" NPT 4" NPT
Electric Actuator E-05 E-05 E-05 E-05 E-05 E-05 E-05 E-10 E-10 E-20 E-20
2-Way
Valve Body		 V3-1/4-A V3-3/8-A V3-1/2-A V3-3/4-A V3-1-A V3-1 1/4-A V3-1 1/2-A V3-2-A V3-2 1/2-A V3-3-A V3-4-A
3-Way
Valve Body		 V3-1/4-L-A V3-3/8-L-A V3-1/2-L-A V3-3/4-L-A V3-1-L-A V3-1 1/4-L-A V3-1 1/2-L-A V3-2-L-A V3-2 1/2-L-A V3-3-L-A V3-4-L-A
Valve Body
2-Way:
3-Way: 		Full Port
Reduced Port
Body & Ball Material 316 Stainless Steel / CF8M
Seal & Packing Material PTFE
Operating Temperature
Media:
Ambient: 		-60°F to 356°F (-51°C to 180°C)
-4°F to 140°F (-20°C to 60°C)
Operating Pressure 1000 PSI at 100°F WOG 800 PSI at 100°F WOG
Service Medium Liquid, Water, Air, Gas, Steam
Maximum Viscosity 600 mm2/s
Mounting Standard DIN 3203-M3
ISO 5211 Mounting Pad
ISO 5211 Platform
Download Drawings
3D STEP E 1/4 E 3/8 E 1/2 E 3/4 E 1 E 1 1/4 E 1 1/2 E 2 E 2 1/2 E 3 E 4
3D PDF E 1/4 E 3/8 E 1/2 E 3/4 E 1 E 1 1/4 E 1 1/2 E 2 E 2 1/2 E 3 E 4
3D SolidworE E 1/4 E 3/8 E 1/2 E 3/4 E 1 E 1 1/4 E 1 1/2 E 2 E 2 1/2 E 3 E 4
2D AutoCAD E 1/4 E 3/8 E 1/2 E 3/4 E 1 E 1 1/4 E 1 1/2 E 2 E 2 1/2 E 3 E 4
Dimensions

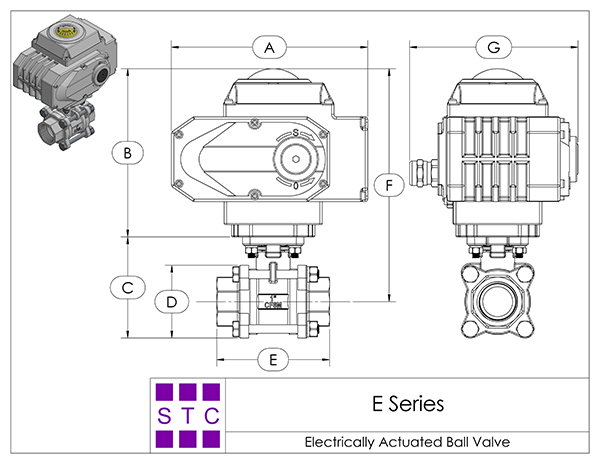

Electrically Actuated Ball Valve Dimensions
Model Port Electric Actuator A B C D E F G
E 1/4 1/4" NPT E-05 160.0 137.0 63.5 48.1 74.6 176.5 137.3
E 3/8 3/8" NPT E-05 160.0 137.0 63.5 48.1 74.6 176.5 137.3
E 1/2 1/2" NPT E-05 160.0 137.0 63.5 48.1 75.0 176.5 137.3
E 3/4 3/4" NPT E-05 160.0 137.0 71.7 54.6 80.3 181.4 137.3
E 1 1" NPT E-05 160.0 137.0 82.4 59.3 92.0 189.8 137.3
E 1 1/4 1 1/4" NPT E-05 160.0 137.0 93.5 73.8 109.8 193.6 137.3
E 1 1/2 1 1/2" NPT E-05 160.0 137.0 105.0 79.6 120.4 202.2 137.3
E 2 2" NPT E-10 196.0 157.9 121.0 93.3 138.6 237.0 143.3
E 2 1/2 2 1/2" NPT E-10 196.0 157.9 160.1 122.4 172.0 252.0 143.3
E 3 3" NPT E-20 256.0 192.2 178.3 141.0 194.0 302.0 180.7
E 4 4" NPT E-20 256.0 192.2 231.4 203.3 251.0 320.0 180.7
Dimensions for Reference Use Only: Units in mm

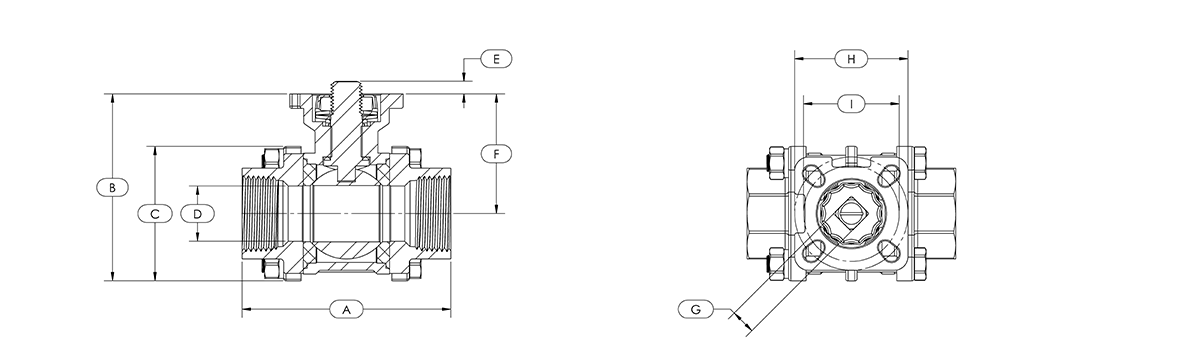

Actuated Valve Body
Actuated Valve Body
2-Port Model 3-Port Model Port Size A B C D E F G H I Electric Actuator
V3-1/4-A V3-1/4-L-A 1/4" NPT 74.6 63.5 48.1 9.8 9.4 39.5 9.0 F04/42 F03/36 E-05
V3-3/8-A V3-3/8-L-A 3/8" NPT 74.6 63.5 48.1 10.3 9.4 39.5 9.0 F04/42 F03/36 E-05
V3-1/2-A V3-1/2-L-A 1/2" NPT 75.0 63.5 48.1 14.3 9.4 39.5 9.0 F04/42 F03/36 E-05
V3-3/4-A V3-3/4-L-A 3/4" NPT 80.3 71.7 54.6 19.7 8.4 44.4 9.0 F04/42 F03/36 E-05
V3-1-A V3-1-L-A 1" NPT 92.0 82.4 59.3 24.4 5.6 52.8 11.0 F05/50 F04/42 E-05
V3-1 1/4-A V3-1 1/4-L-A 1 1/4" NPT 109.8 93.5 73.8 31.7 9.1 56.6 11.0 F05/50 F04/42 E-05
V3-1 1/2-A V3-1 1/2-L-A 1 1/2" NPT 120.4 105.0 79.6 37.7 11.3 65.2 14.0 F07/70 F05/50 E-05
V3-2-A V3-2-L-A 2" NPT 138.6 121.0 93.3 50 15.0 74.3 14.0 F07/70 F05/50 E-10
V3-2 1/2-A V3-2 1/2-L-A 2 1/2" NPT 172.0 160.1 122.4 65 18.0 98.9 17.0 F10/102 F07/70 E-10
V3-3-A V3-3-L-A 3" NPT 194.0 178.3 141.0 80 20.0 107.8 17.0 F10/102 F07/70 E-20
V3-4-A V3-4-L-A 4" NPT 251.0 231.4 203.3 100 28.0 129.8 19.0 F10/102 F07/70 E-20
Dimensions for Reference Use Only: Units in mm
