Hand-Operated Pneumatic Valve with Three Position Lever, Closed Center: 4H230C-M/S

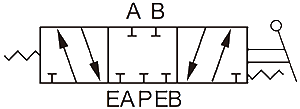

The 4H230C is a manual pneumatic directional valve with a four-way operation & five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, three-position, closed center valves are generally used to stop a double acting cylinder in partial stroke, with all ports shut off at the center position. This valve is available with either a Detented (-M) or Non-Detented (-S) lever.

Please note that there have been recent design updates to this valve. The specific changes can be found here (see pg. 5): Pneumatic Valve Design Changes. For inventory status of each version, please call us at (650) 856-8833.

4H230C-M/S
Operation	4-Way, 5-Port, 3-Position Lever, Closed Center M = Detented S = Non-Detented (Spring Return)	M =
Type	Hand Operated Directional Air Valve	S =
Port Size	1/4" NPT (1/8" Exhaust Ports)		Downloads 3D Drawings 3-D Solidworks - Original Version (-M) 3-D Solidworks - Original Version (-S) 3-D Solidworks - Updated Version (-M) 3-D Solidworks - Updated Version (-S) 3-D STEP - Original Version (-M) 3-D STEP - Original Version (-S) 3-D STEP - Updated Version (-M) 3-D STEP - Updated Version (-S) 2D Drawings 2-D DWG - Original Version 2-D DWG - Updated Version 2-D PDF - Original Version 2-D PDF - Updated Version
Operating Pressure	0 to 116 PSI
Operating Temperature	14 to 140°F (-10 to 60°C)
Action	Direct Acting
Flow Coefficient (Cv)	0.89
Working Medium	40 Micron Filtered Air or Inert Gas
Body Material	Anodized Aluminum
Seal Material	NBR (Buna N)
Lubrication	Not Required
