Solenoid Valve Specifications & Dimensions: 2P050

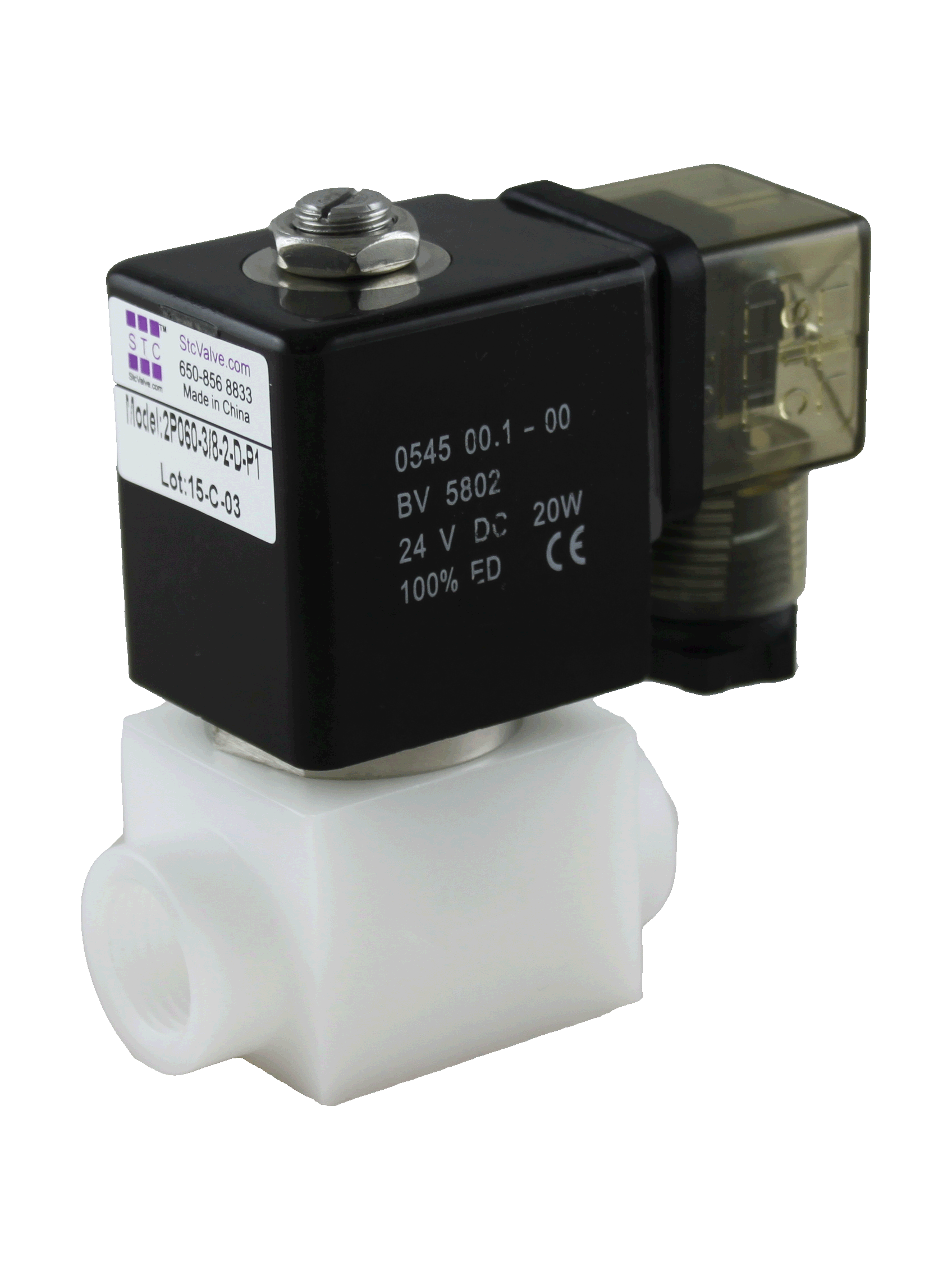

Part No. Valve Pictures Port Size Voltage Electrical Connection Port No / Position / Solenoid Power Consumption Valve Symbol
2P050-3/8   3/8" Female NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
G = Grommet
D = DIN (with LED Indicator)
2/2/1
Direct Acting
Normally Closed
Two Way Valve
3 to 6.5W
2P050-3/8F 3/8" Push-In Fitting
2P050-3/8T 3/8" OD Tube

Specifications
Valve Type 2 Way, Normally Closed (NC)
Action Direct Acting
Orifice 5.0mm
Operating Pressure Vacuum to 50PSI
Port Size (Tube OD) Options: 3/8" OD Tube
                3/8" Push-In Fitting
                3/8" Female NPT
Wetted Surfaces Valve Body: Delrin Plastic (can be customized to any type of plastic)
Seals: NBR (Buna N), Silicone, Viton Double Seals (Fitting Connection Only)
Armature Assembly: Stainless Steel
Coil Duty H Class, IP65, 100% ED Continuous Duty
Voltage Options: 12, 24 VDC; 24, 110/120 (50/60Hz), 220/240 VAC (50/60Hz)
Voltage Tolerance +/-10% of Specified Voltage
Coil Power 20W
Electrical Connections DIN43650A, Option: Molded Cable, ATEX Explosion Proof
Installation No Orientation (Optimum Position: Flow Horizontal & Solenoid Vertical)
Service Air, Water, Liquid

The 2P050 valve is a two-way, normally closed, direct acting valve and does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger and allows the working medium to flow through the orifice. The working medium and flow direction are indicated in purple in the diagrams.

Benefits: Features



Electrical Coil Connections
