Solenoid Valve Specifications & Dimensions: 2MS120-250 & 2MSO120-250 Series
Specifications |
Valve Model |
2MS120 |
2MS150 |
2MS200 |
2MS250 |
2MSO120 |
2MSO150 |
2MSO200 |
2MSO250 |
Valve Type |
2 Way Normally Closed (NC) |
2 Way Normally Open (NO) |
Action |
Pilot Piston |
Pilot Piston |
Cv (Orifice) |
4.5 (12mm) |
4.5 (15mm) |
7.6 (20mm) |
12 (25mm) |
4.5 (12mm) |
4.5 (15mm) |
7.6 (20mm) |
12 (25mm) |
Operating Pressure |
Standard: Vacuum to 230PSI
Medium Options: 6 to 580PSI (VDC); 6 to 725PSI (VAC)
High Option: 87 to 1450PSI
|
Standard: 6 to 230PSI |
Port Size (NPT) |
3/8" |
1/2" |
3/4" |
1" |
3/8" |
1/2" |
3/4" |
1" |
Body Material |
304 Stainless Steel (Option: 316SS) |
304 Stainless Steel (Option: 316SS) |
Seal Material |
PTFE (Option: Viton) |
PTFE (Option: Viton) |
Coil Protection Insulation Class |
H Class IP65 |
H Class IP65 |
Coil Duty |
100% ED |
100% ED |
Coil Power |
VDC: 20W; VAC: 22VA |
VDC: 20W; VAC: 22VA |
Electrical Connection |
DIN |
DIN |
Service |
Air, Inert Gas, Liquid, Steam, Vacuum |
Air, Inert Gas, Liquid, Steam, Vacuum |
|
|
|
2MS Series: 2/2 Pilot Piston Normally Closed Solenoid Valve
The 2MS Series valves are 2 way, normally closed, internal pilot piston
solenoid valves. When the coil is energized, it lifts the pilot valve
off the top of the piston ring and pressure under the piston ring forces
the piston up to open the main valve orifice. When the coil is de-energized,
the pilot valve returns to close the pilot orifice and pressure across the
piston ring is equalized through a timing orifice in the side of the piston
or in the valve body. The piston spring returns the piston to close the
main valve orifice.
2MSO Series: 2/2 Pilot Piston Normally Open Solenoid Valve
The 2MSO series valves are 2 way, normally open, internal pilot piston
solenoid valves.
To Close: when the valve is energized, it repels the plunger
and forces the plunger to close the main orifice. The system pressure builds
up on the top of the piston because fluid enters through the bleed orifice,
forcing the piston down until it covers the main orifice and stops media flow
through the valve.
To Open: When the valve is de-energized, it releases the plunger and the
spring pushes the plunger away from the pilot orifice, allowing fluid to flow
out and causing the system pressure holding the piston closed to drop. As system
pressure on the top of the piston is reduced, full system pressure on the
opposite side of the piston acts to lift the piston away from the main orifice,
which allows the full media flow through the valve.
ALL standard valves are supplied with Continuous Duty Coils of the
proper class of insulation for the service indicated on the valve.
It is normal for the coil temperature may become hot after being
energized for extended periods. Smoke or burning odor indicates
excessive coil temperature and the power should be disconnected to
the coil immediately.
SERVICE LIFE: The service life of the solenoid valve depends
on the operating conditions such as pressure, temperature, type of
medium, and the voltage.
|

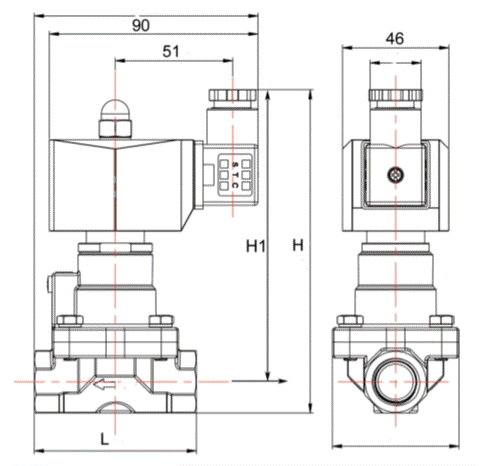

2MS/2MSO Series Dimensions (mm) |
Normally Closed (NC) |
Normally Open (NO) |
Port Size (NPT) |
Orifice |
Cv |
L |
H1 |
H |
2MS150-1/2 | 2MSO150-1/2 | 1/2 | 15 | 4.5 | 75 | 117 | 140 |
2MS200-3/4 | 2MSO200-3/4 | 3/4 | 20 | 7.6 | 75 | 122 | 147 |
2MS250-1 | 2MSO250-1 | 1 | 25 | 12 | 92 | 143 | 155 |
2MS320-1 1/4 | 2MSO320-1 1/4 | 1 1/4 | 32 | 22 | 110 | 143 | 155 |
2MS400-1 1/2 | 2MSO400-1 1/2 | 1 1/2 | 40 | 30 | 122 | 145 | 160 |
2MS500-2 | 2MSO500-2 | 2 | 50 | 48 | 161 | 157 | 179 |
Dimensions for Reference Use Only: Units in mm |
Electrical Coil Connections
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
