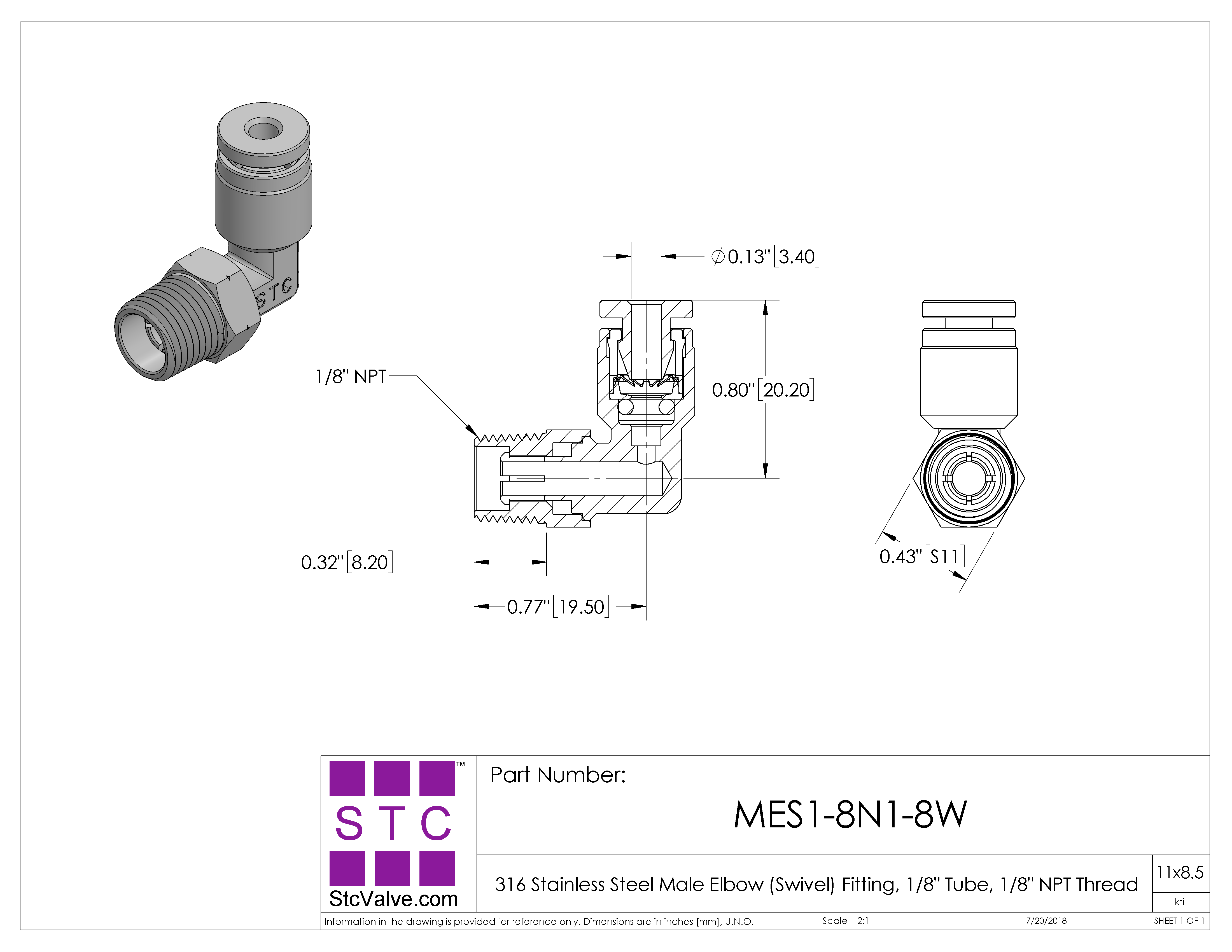

Male Elbow (Swivel) Stainless Steel Fitting: MES 1/8 N1/8 W
|
|
||
| Shape | Male Elbow (Swivel) | |
| Connection | Tube to Male Threaded Pipe | |
| Body Material | T316 Stainless Steel | |
| Release Button Material | 300 Series Stainless Steel | |
| Grip Ring or Collet Material | 300 Series Stainless Steel | |
| O-Ring Material | FKM | |
| For Tube OD | 1/8" | |
| Pipe Size, Type | 1/8" NPT | |
| Operating Pressure Range | 0 - 250PSI (0 - 1650kPa) | |
| Vacuum | 0 - 30" Hg (0 - 760 mm Hg) | |
| Operating Temperature | 5 - 230°F (-15 to 110°C) | |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (tubing must be pre-grooved) | |
| Service | Air, Liquid | |
| Sterilization Temperature | Up to 280°F (138°C) | |
| RoHS | Compliant | |
