Hex Brushing Stainless Steel Fitting: HBS MN1/4 FN1/8

HBS MN1/4 FN1/8

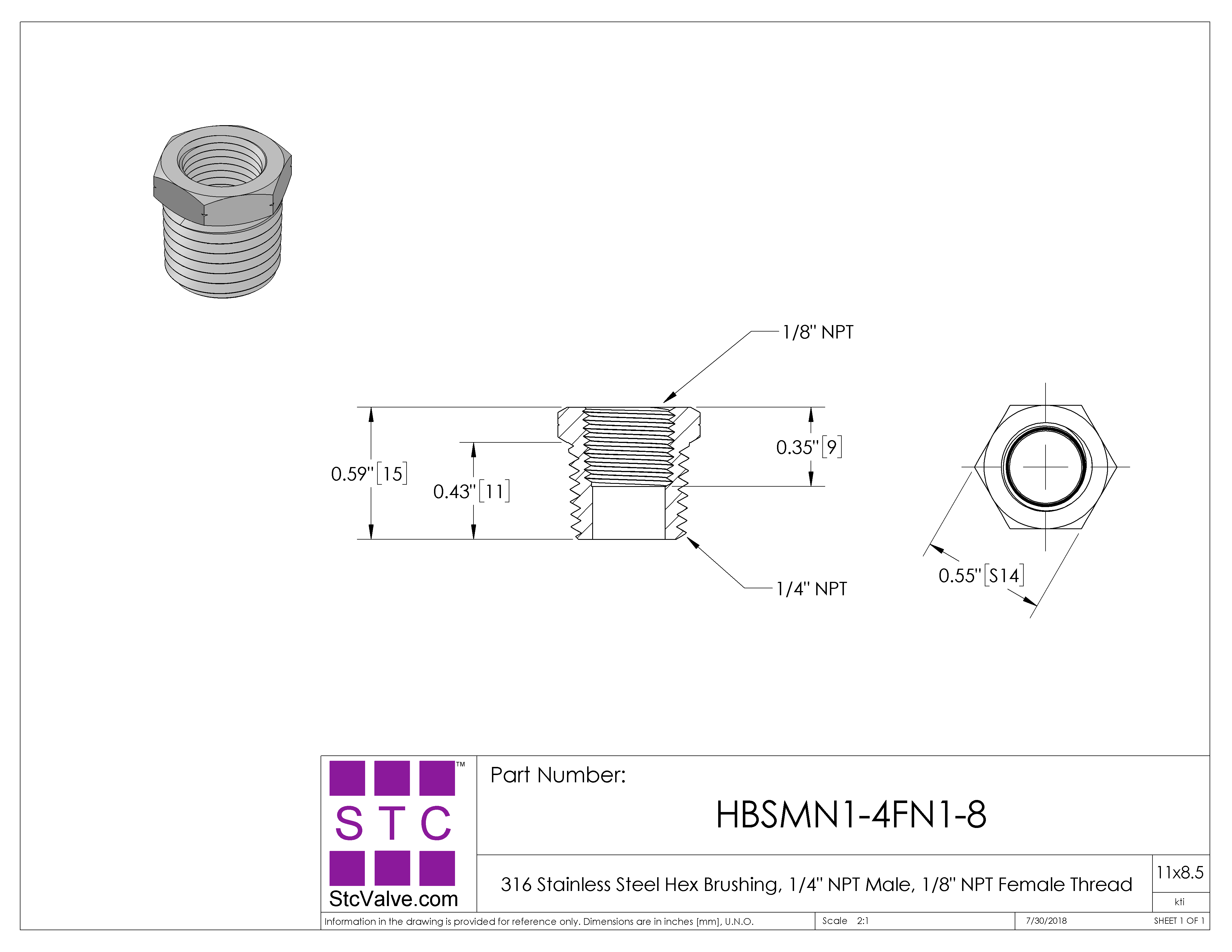

3D Drawings 3-D Solidworks 3-D STEP 3-D PDF 2D Drawings 2-D DWG 2-D PDF
Shape Hex Brushing
Body Material T316 Stainless Steel
Pipe Size, Type (Male) 1/4" NPT
Pipe Size, Type (Female) 1/8" NPT
Operating Pressure Range 0 - 250PSI (0 - 1650kPa)
Vacuum 0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature 5 - 230°F (-15 to 110°C)
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)
Service Air, Liquid
Sterilization Temperature Up to 280°F (138°C)
RoHS Compliant
