Female Connector Stainless Steel Push In Fittings: FCS 8 R1/4 W

FCS 8 R1/4 W

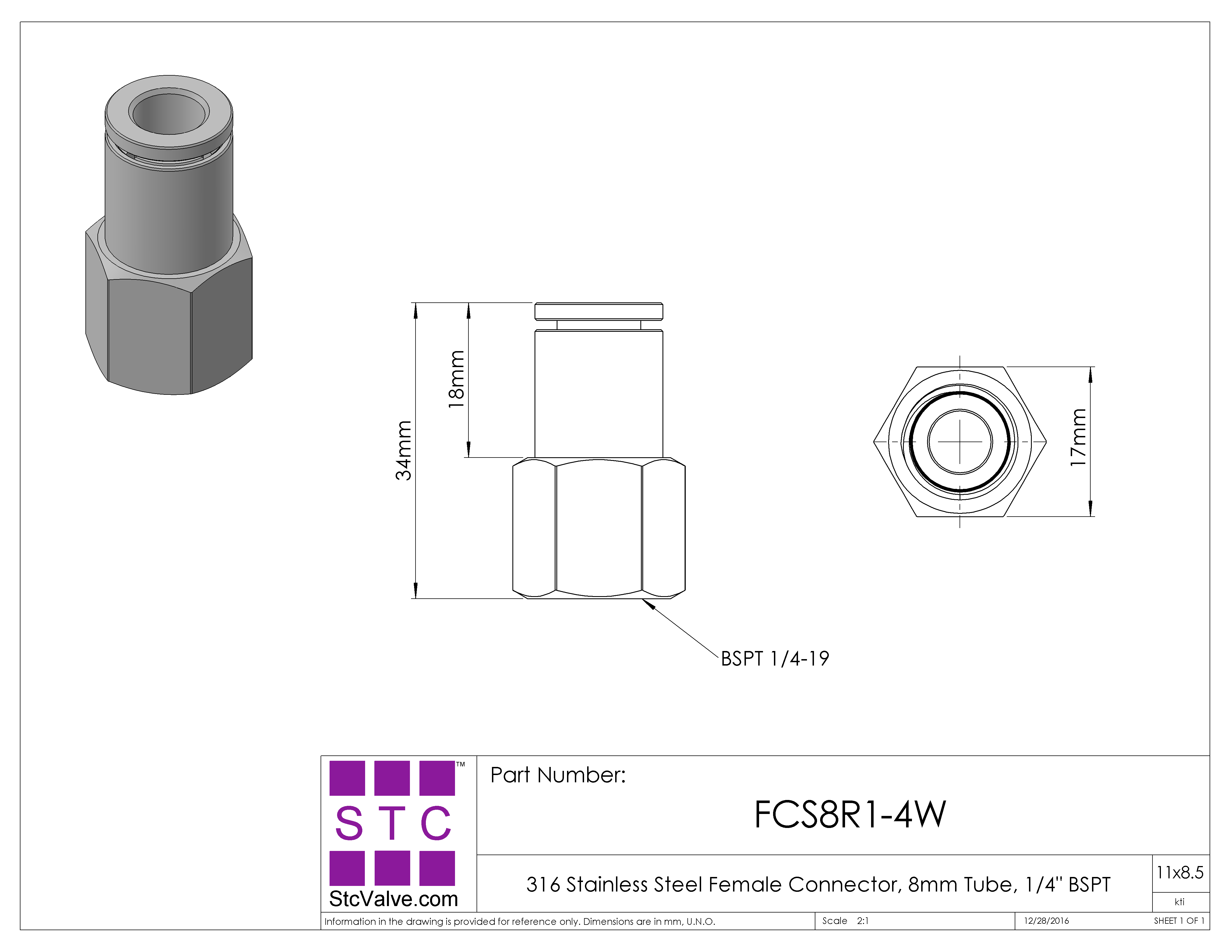

3D Drawings 3-D Solidworks 3-D STEP 2D Drawings 2-D DWG 2-D PDF
Shape Female Connector
Connection Tube to Female Threaded Pipe
Body Material T316 Stainless Steel
Release Button Material 300 Series Stainless Steel
Grip Ring or Collet Material 300 Series Stainless Steel
O-Ring Material FKM
For Tube OD 8mm
Pipe Size, Type 1/4" BSPT
Operating Pressure Range 0 - 250PSI (0 - 1650kPa)
Vacuum 0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature 5 - 230°F (-15 to 110°C)
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)
Service Air, Liquid
Sterilization Temperature Up to 280°F (138°C)
RoHS Compliant
