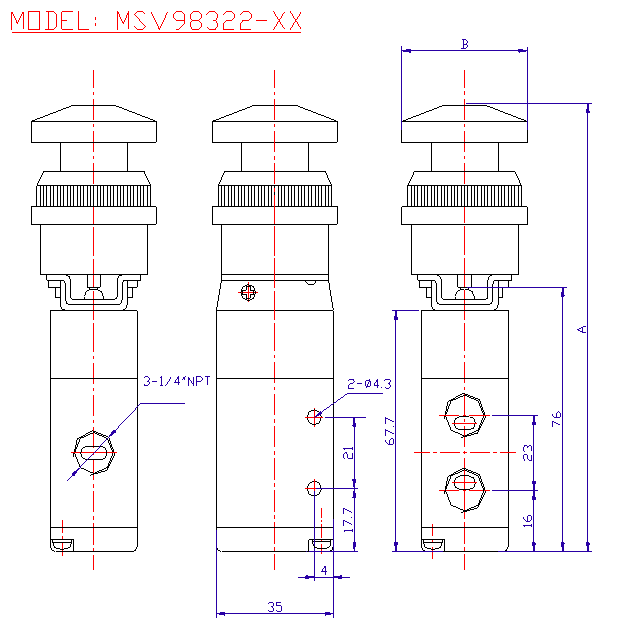

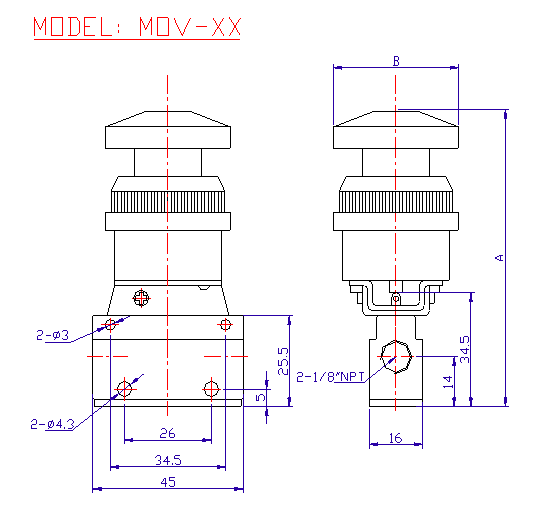

Air Valve Dimensions (Units in mm)

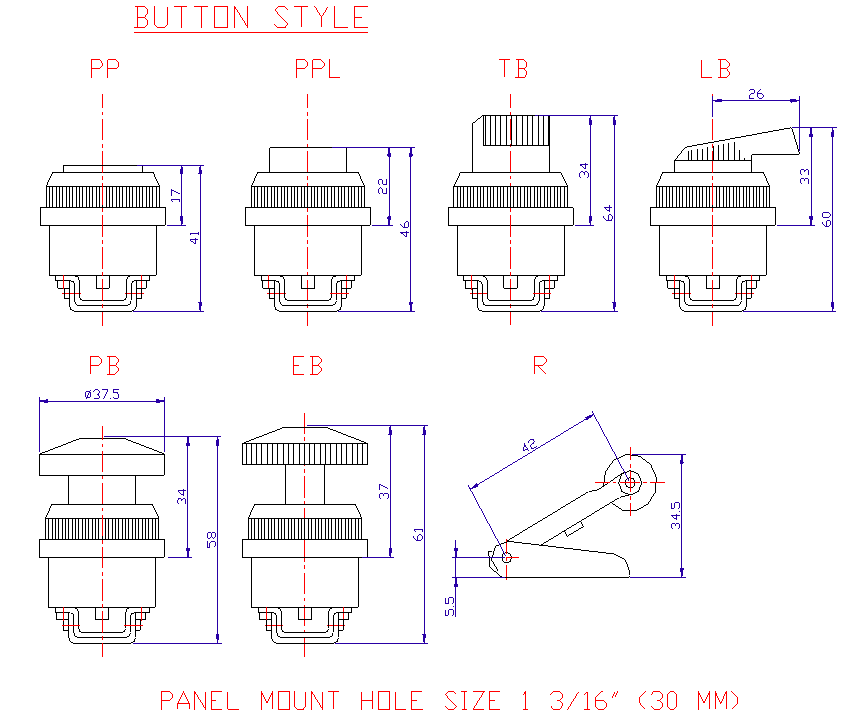

To obtain Dimension A, find the height of the Operator Switch that is of interest to you on the bottom of the page and add to the height of the valve.
