Solenoid Coils

• Specifications

  Model	100C	200C	2W200C	2WO250C	2W350C
  Coil Insulation & Protection Class	F Class, IP 65	F Class, IP 65	H Class, IP 65	H Class, IP 65	H Class, IP 65
  Coil Duty Cycle	100%ED	100%ED	100%ED	100%ED	100%ED
  DIN Electrical Connection	DIN 43650C (with LED Indicator) Strain Relief Connection use 6mm to 1/4" cable Option: 1/2" Female NPT Conduit Connection	DIN 43650B (PG 9) (with LED Indicator) Strain Relief Connection use 6mm to 1/4" cable PG 9 (Standard) Option: 1/2" Female NPT Conduit Connection	DIN 43650A (with LED Indicator) Strain Relief Connection use 6mm to 8mm - 5/16" cable PG 11 (Standard) Option: 1/2" Female NPT Conduit Connection	DIN 43650A (PG 11) (with LED Indicator) Strain Relief Connection use 6mm to 8mm - 5/16" cable PG 11 (Standard) Option: 1/2" Female NPT Conduit Connection	DIN 43650A (PG 11) (with LED Indicator) Strain Relief Connection use 6mm to 8mm - 5/16" cable PG 11 (Standard) Option: 1/2" Female NPT Conduit Connection
  Grommet Electrical Connection	G = Grommet (12" Lead Wire)	G = Grommet (12" Lead Wire)	N/A	N/A	N/A
  Power Consumption	2.5 Watt (Holding), Inrush 160% for AC Power Supply	3 to 6.5 Watt (Holding), Inrush 160% for AC Power Supply	12 to 20 Watt (Holding), Inrush 160% for AC Power Supply	25 to 40 Watt (Holding), Inrush 160% for AC Power Supply	25 to 40 Watt (Holding), Inrush 160% for AC Power Supply
  Ambient Temperature	-30°C to 70°C	-30°C to 70°C	-20°C to 50°C	-20°C to 50°C	-20°C to 50°C
  Certification	CE Certification	CE Certification Options: UL, CSA; FM (Explosion Proof)	CE Certification Options: ATEX (Explosion Proof)	CE Certification	CE Certification



• Dimensions (Units in mm)

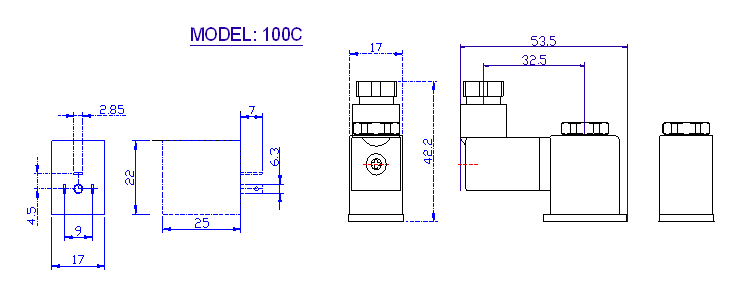

  • 100C (DIN 43650C)

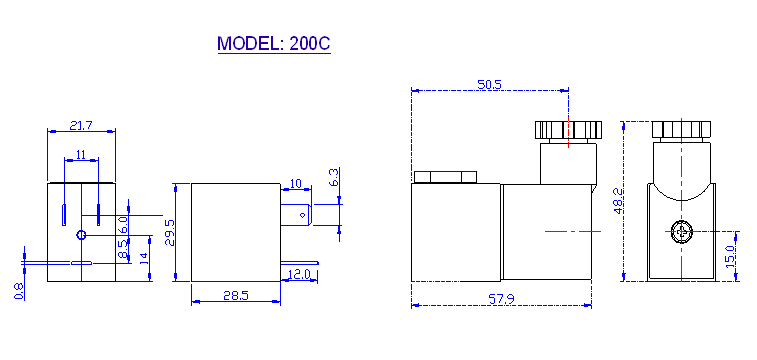

  • 200C (DIN 43650B PG9)

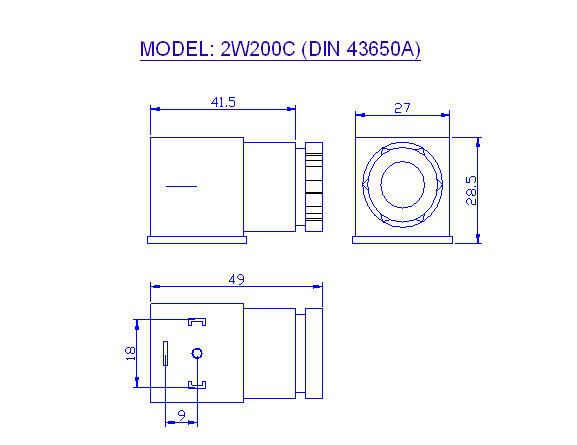

  • 2W200C (DIN 43650A PG11)

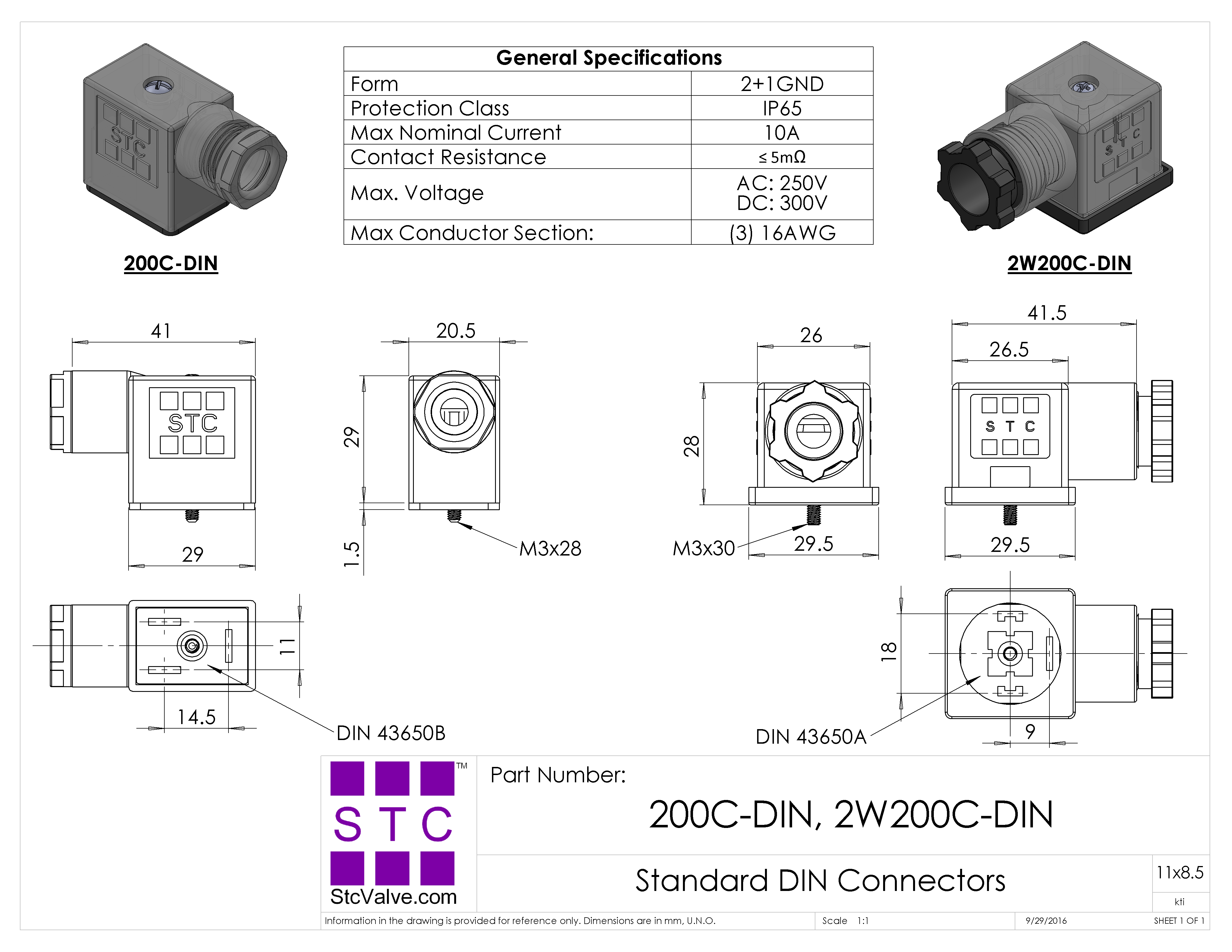

  • 200C-DIN & 2W200C-DIN Connectors





• Electrical Connection Procedure:
  • CAUTION: Do no energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.

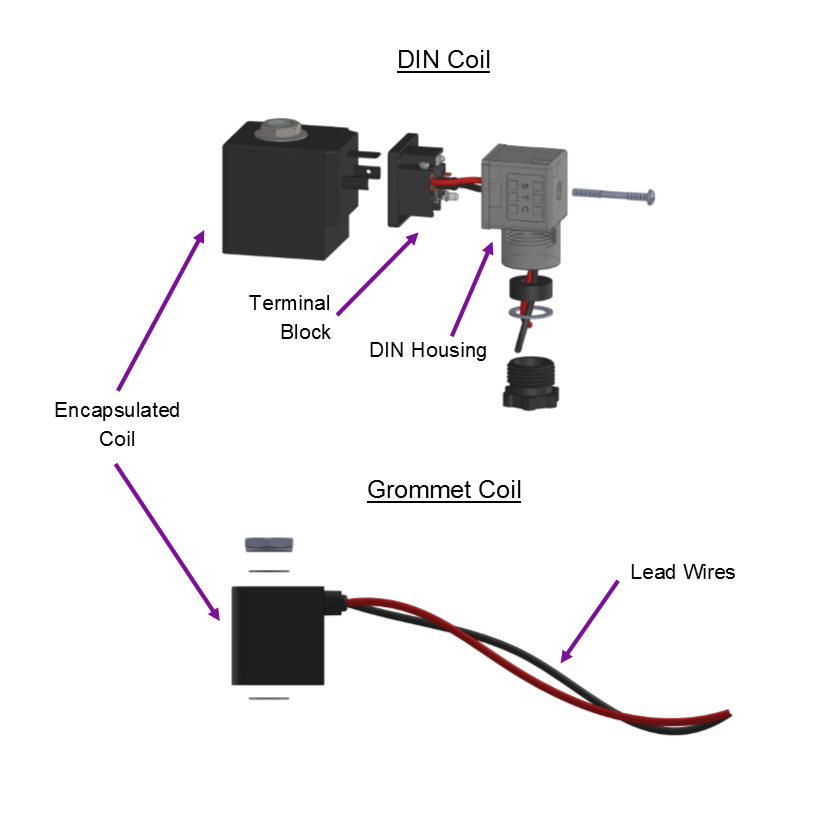

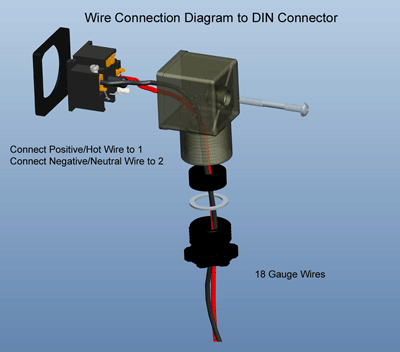

  • To Connect a DIN Coil:


    • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
    • Use the removed screw to push the terminal block out of the plastic DIN housing.
    • Note the "1", "2", and ground "⏚" symbols.
      • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
      • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.

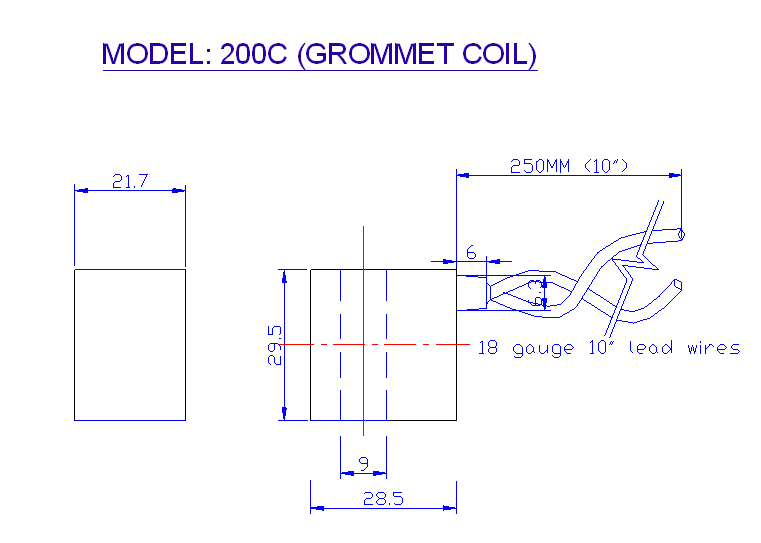

  • To Connect a Grommet Coil:


    • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
    • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
    • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
      • GREEN = Ground Wire
      • BLUE = Positive or HOT Wire
      • BROWN = Negative or Neutral Wire

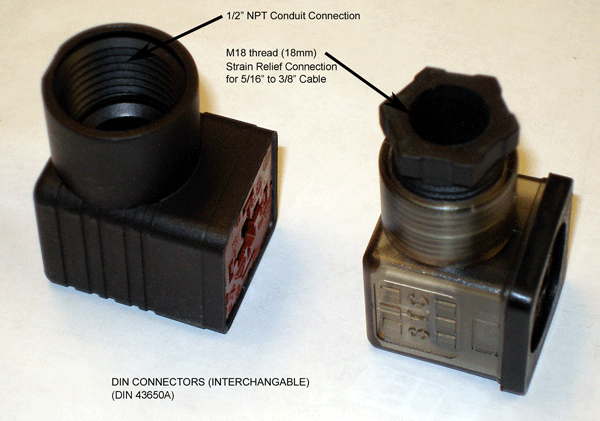

• Connection Options: Conduit and Strain Relief Connections:
