4-Way, 5-Port, 3-Position (5/3/2) Pneumatic Solenoid Valve: 4V330[CEP]-3/8

The 4V330[CEP]-3/8 is a pneumatic directional solenoid valve with a four-way operation & five ports (P = Pressure, A = Outlet, EA = Exhaust for port A). Four-way, three-position valves are generally used to fully extend a double acting (air return) cylinder, or in applications with similar operation. The center position can be configured as Closed Center (to passively stop a cylinder in its current position), Exhaust Center (to allow the cylinder to freely move, i.e. be hand-adjusted), or Pressure Center (to actively stop a cylinder in its current position, with pressure on both ends).

4V330[CEP]-1/4
Port & Mounting	Body Ported, 4-Way, 5-Port, 3-Position, Air Return (Double Solenoid), Center Position: Closed (C), Exhaust (E), or Pressure (P).

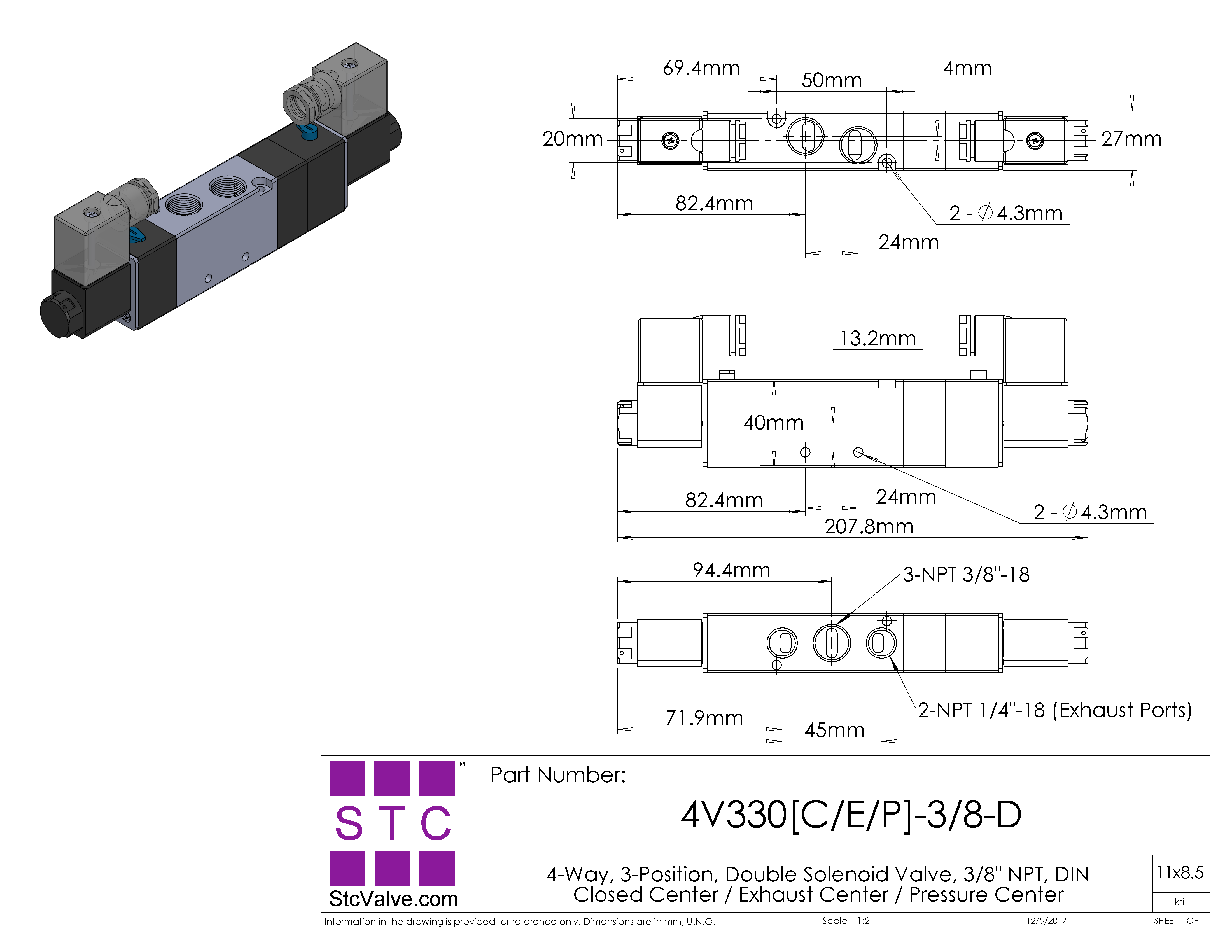

Action & Motion	Air Pilot, Spool Design, Response Time < 20ms	Downloads 3D Drawings 3-D Solidworks (DIN) 3-D Solidworks (Grommet) 3-D STEP (DIN) 3-D STEP (Grommet) 2D Drawings 2-D DWG 2-D PDF
Operating Pressure	21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Port Size (NPT)	3/8" (1/4" Exhaust Ports)
Operating Temperature	14 to 140°F (-10 to 60°C)
Cv	1.68
SCFM @ 100PSI	80
Manual Override	Detentable (depress & rotate)
Electrical Connection	DIN, Grommet
Working Medium	40 micron filtered air or inert gas
Coil Duty Cycle & Protection	100% ED (Continuous Duty), IP65, Class F
Coil Voltage Options	12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz)
Coil Power	3 / 4.8W
Coil Locking Nut	M8 x 0.75 Threads
Wetted Surfaces	Anodized Aluminum, NBR (Buna N), Stainless Steel
