4-Way, 5-Port, 2-Position Directional, NAMUR Actuator-Mount Pneumatic Solenoid Valves: 4V210-1/4B
The 4V210-1/4B is a pneumatic directional solenoid valve with a four-way operation & five ports (P = Pressure, A = Outlet, EA = Exhaust for port A). Four-way, two-position valves are generally used to fully extend a double acting (air return) cylinder, or in applications with similar operation. NAMUR-style valves are designed to mount onto standard pneumatic actuators to control the operation of air-actuated valves (ball valves, etc.)
|
3D Drawings
3-D Solidworks (DIN)
3-D Solidworks (Grommet)
3-D STEP(DIN)
3-D STEP(Grommet)

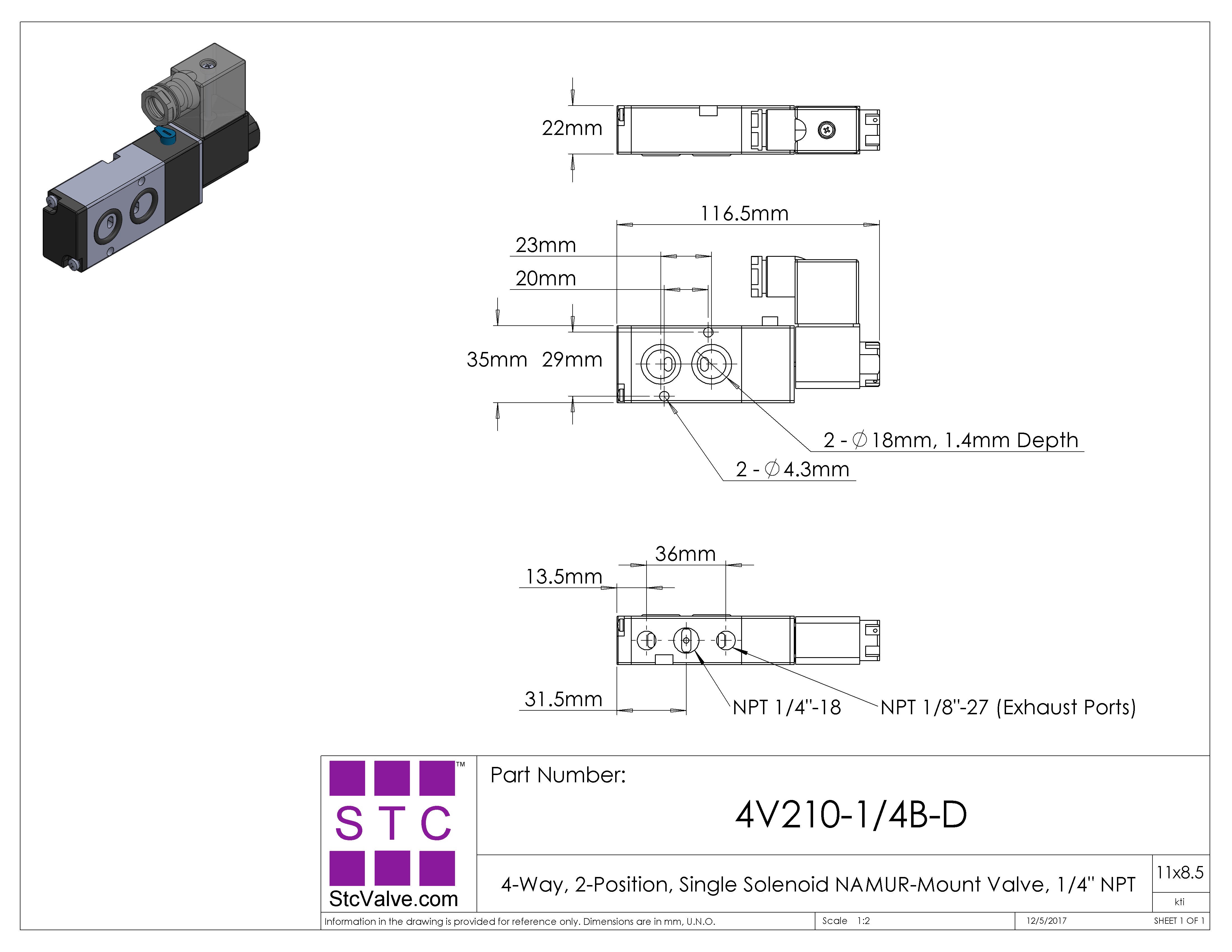

2D Drawings
2-D DWG
2-D PDF
|
||
| Port & Mounting | Body Ported, 4-Way, 5-Port, 2-Position, Spring Return, NAMUR Mount | |
| Action & Motion | Air Pilot, Spool Design, Response Time < 20ms | |
| Operating Pressure | 21 to 115PSI (Proof Pressure: 200PSI - leaks develop) | |
| Port Size (NPT) | 1/4" (1/8" Exhaust Ports) | |
| Operating Temperature | 14 to 140°F (-10 to 60°C) | |
| Cv | 0.89 | |
| SCFM @ 100PSI | 53 | |
| Manual Override | Detentable (depress & rotate) | |
| Electrical Connection | DIN, Grommet | |
| Working Medium | 40 micron filtered air or inert gas | |
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F | |
| Coil Voltage Options | 12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz) | |
| Coil Power | 3 / 4.8W | |
| Coil Locking Nut | M8 x 0.75 Threads | |
| Wetted Surfaces | Anodized Aluminum, NBR (Buna N), Stainless Steel | |
