Port & Mounting | Body Ported, 4-Way, 5-Port, 2-Position, Air Return (Double Solenoid) | |
Action & Motion | Air Pilot, Spool Design, Response Time < 20ms |

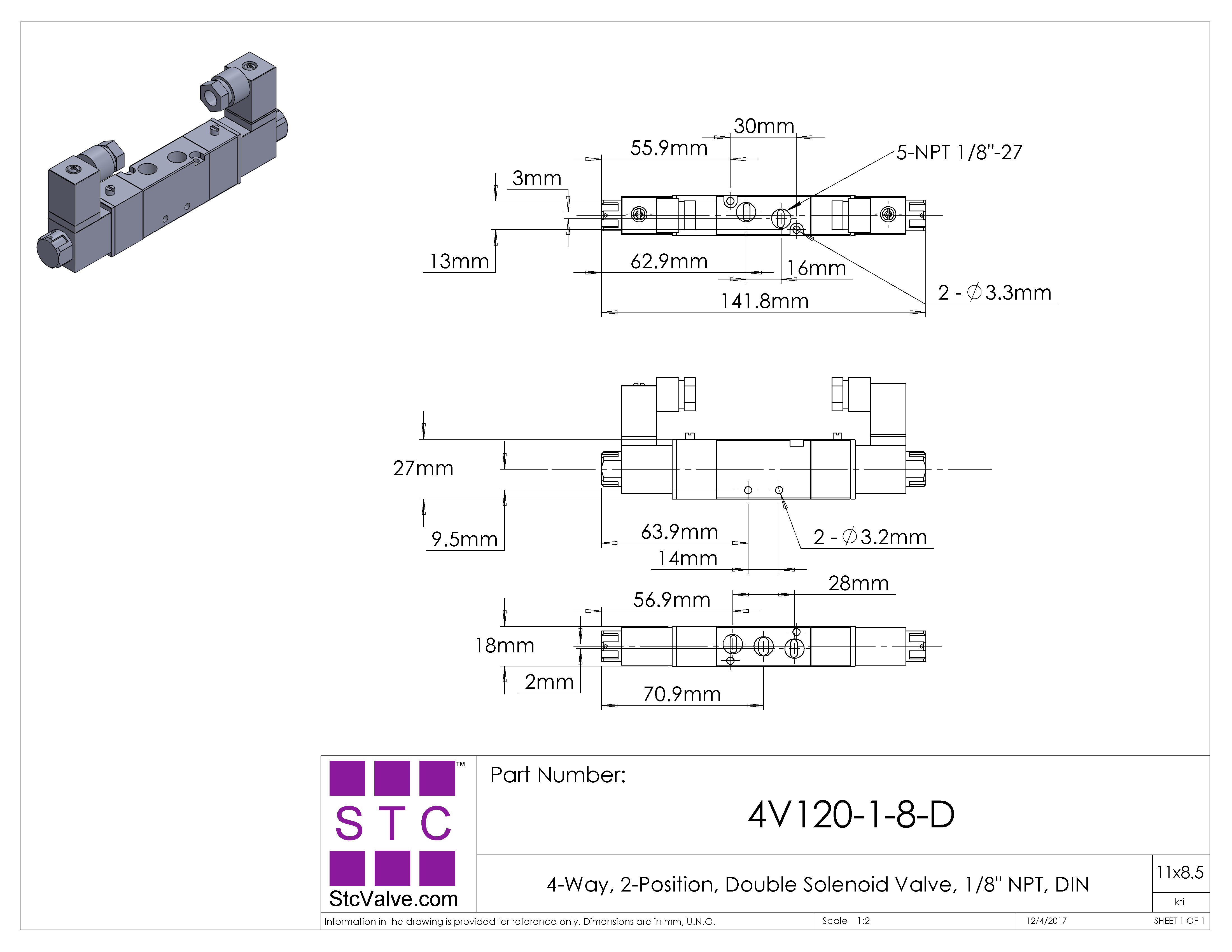

3D Drawings
3-D Solidworks (DIN)
3-D Solidworks (Grommet)
3-D STEP (DIN)
3-D STEP (Grommet)
2D Drawings
2-D DWG
2-D PDF
|
Operating Pressure | 21 to 115PSI (Proof Pressure: 200PSI - leaks develop) | |
Port Size (NPT) | 1/8" | |
Operating Temperature | 14 to 140°F (-10 to 60°C) | |
Cv | 0.67 | |
SCFM @ 100 PSI | 25 | |
Manual Override | Detentable (depress & rotate) | |
Electrical Connection | DIN, Grommet | |
Working Medium | 40 micron filtered air or inert gas | |
Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F | |
Coil Voltage Options | 12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz) | |
Coil Power | 2.5W | |
Coil Locking Nut | M7 x 0.5 Threads | |
Wetted Surface | Anodized Aluminum, NBR (Buna N), Stainless Steel |
