3-Way, 2-Position (3/2) Pneumatic Double Solenoid Valve: 3V120-1/8

The 3V120-1/8 is a pneumatic directional solenoid valve with a three-way operation, three ports (P = Pressure, A = Outlet, EA = Exhaust for port A), and two solenoid coils. Three-way, two-position valves are generally used to fully extend a single acting (spring return) cylinder, or in applications with similar operation.

3V120-1/8
Port & Mounting	Body Ported, 3-Way, 2-Position, Double Solenoid

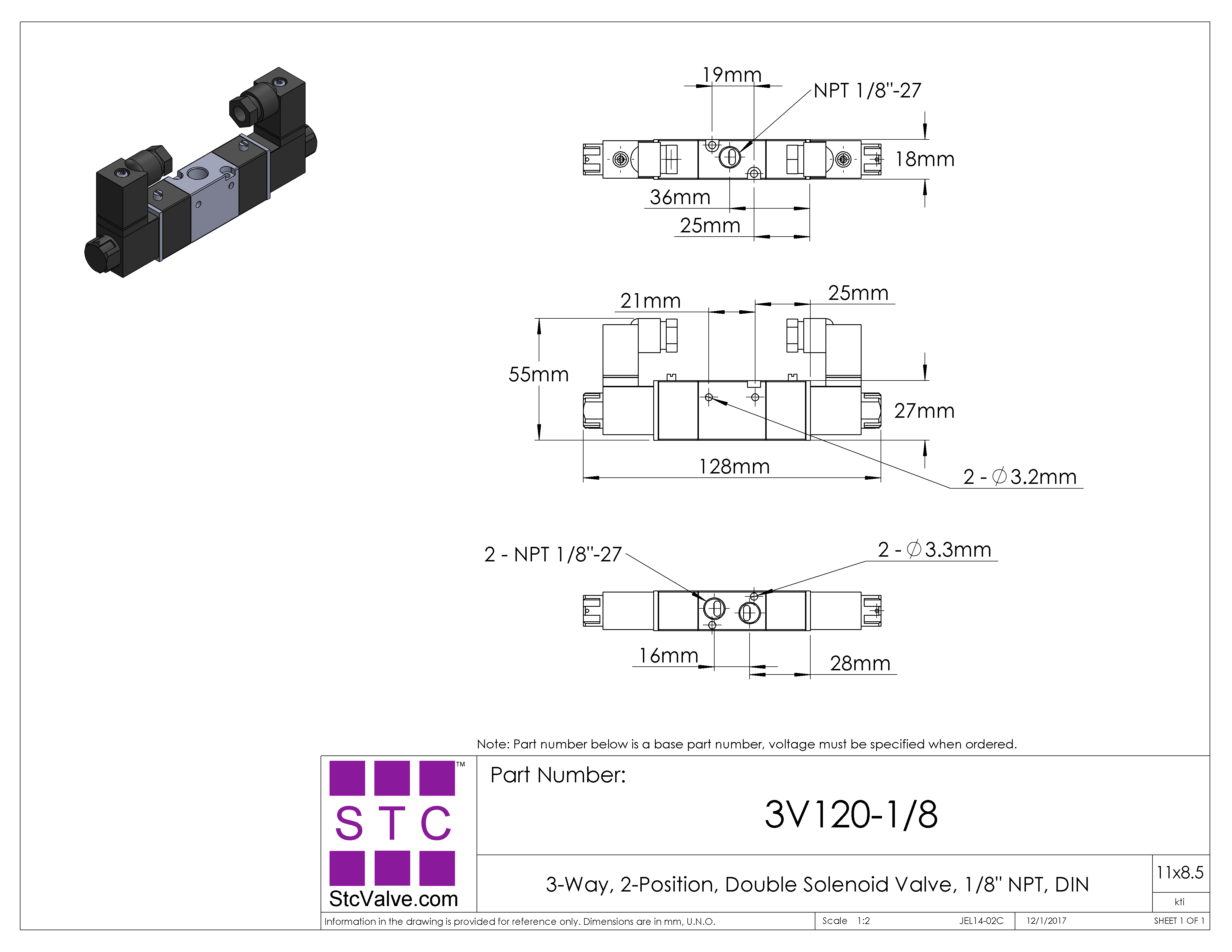

Action & Motion	Air Pilot, Spool Design, Response Time < 20ms	Downloads 3D Drawings 3-D Solidworks (DIN) 3-D Solidworks (Grommet) 3-D STEP 3-D STEP 2D Drawings 2-D DWG 2-D PDF
Operating Pressure	21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Port Size (NPT)	1/8"
Operating Temperature	14 to 140°F (-10 to 60°C)
Cv	0.67
SCFM @ 100 PSI	25
Manual Override	Detentable (depress & rotate)
Electrical Connection	DIN, Grommet
Working Medium	40 micron filtered air or inert gas
Coil Duty Cycle & Protection	100% ED (Continuous Duty), IP65, Class F
Coil Voltage Options	12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz)
Coil Power	2.5W
Coil Locking Nut	M7 x 0.5 Threads
Wetted Surface	Anodized Aluminum, NBR (Buna N), Stainless Steel
