Solenoid Valve Specifications and Dimensions: 2WO040 Series

Specifications Model 2WO040-3/8 Port Size 3/8" NPT Orifice 4mm Cv 0.6 Valve Type 2-Way Action Direct Acting (Poppet) Fast Response Time: <20msec De-Energized State Normally Open (NO) Body Material Valve Body: Armature Assembly: Brass Stainless Steel Seal Material Standard Option: Upgrade Options: NBR (Buna) Viton (FKM) Operating Temperature Media with NBR Seal: Media with Viton Seal: Ambient: 14°F to 176°F (-10°C to 80°C) 5°F to 248°F (-15°C to 120°C) -4°F to 104°F (-20°C to 40°C) Operating Pressure Vacuum to 60 PSI Electrical Connection DIN 43650A Coil Power 12W to 30W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 100% ED, Continuous Duty Installation No Orientation Requirement Service Liquid, Water, Oil, Air, Gas, Steam (with Viton)

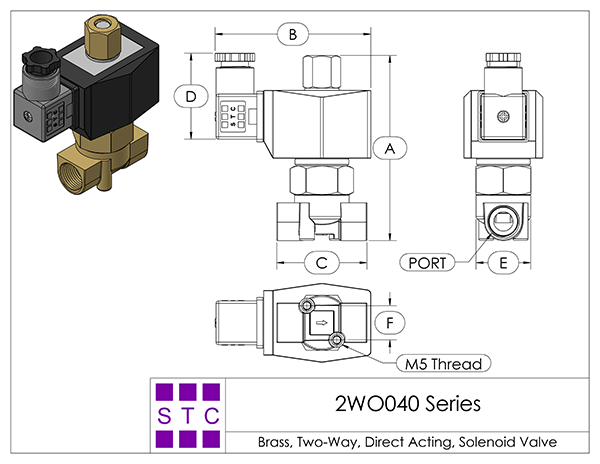

Dimensions 2W/O040 Series Solenoid Valve Dimensions Model Port A B C D E F 2WO040-3/8 1/4" NPT 96.0 90.6 54.0 50.0 31.8 19.7 Dimensions for Reference Use Only: Units in mm

2WO040 Series: 2/2 Direct Acting Normally Open Valve
The 2WO040 series normally open solenoid valve is direct acting, it does not require a minimum operating differential pressure. As shown in the diagram below, when the coil is energized, it pushes the solenoid plunger downward to close the main valve orifice and closes the valve. When the coil is de-energized, the spring forces the plunger upward to open the valve main orifice and opens the valve.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage. Normally the STC solenoid valves are reliable for more than 5 million cycles.

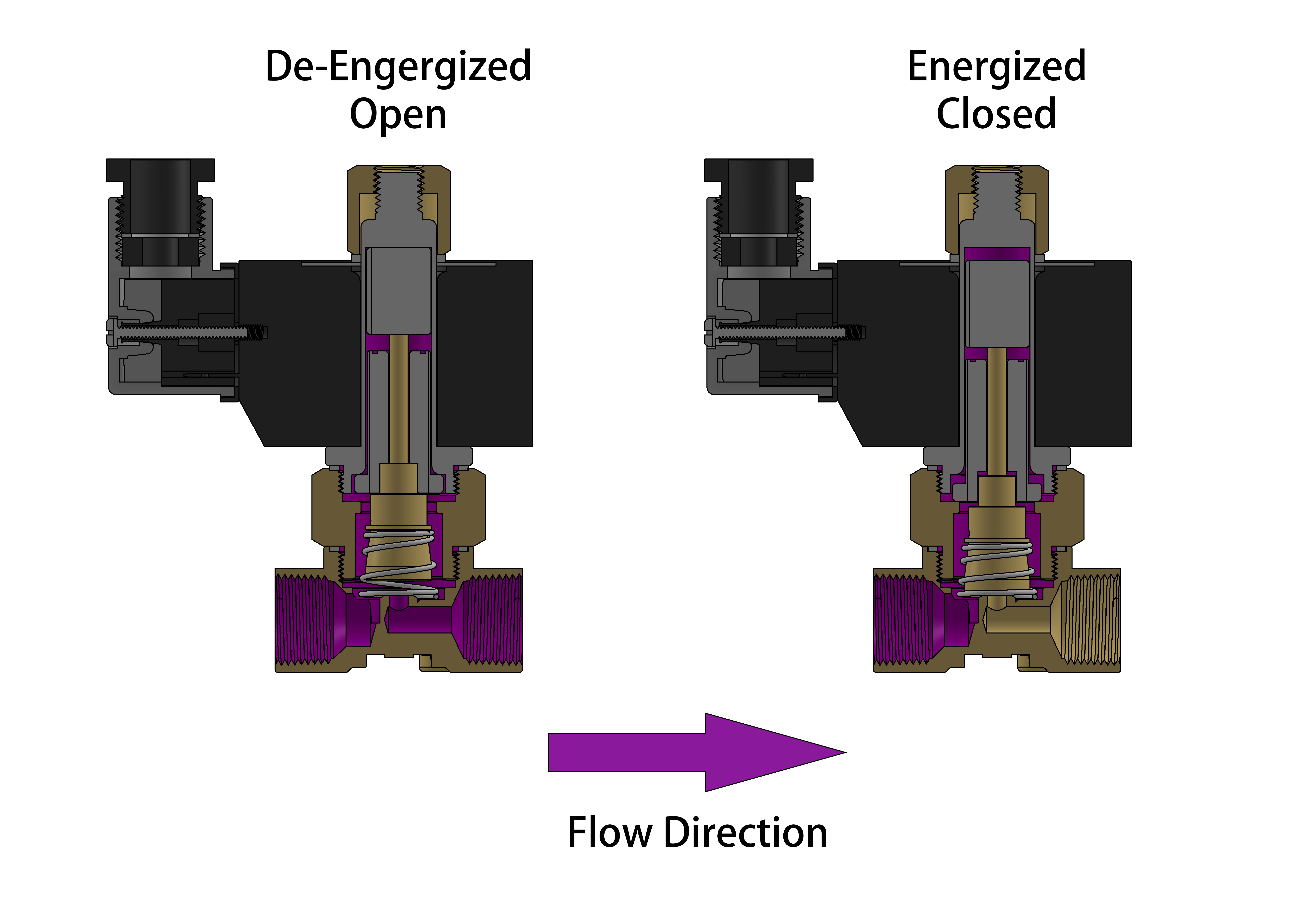

Operation Diagram

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.


• To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire

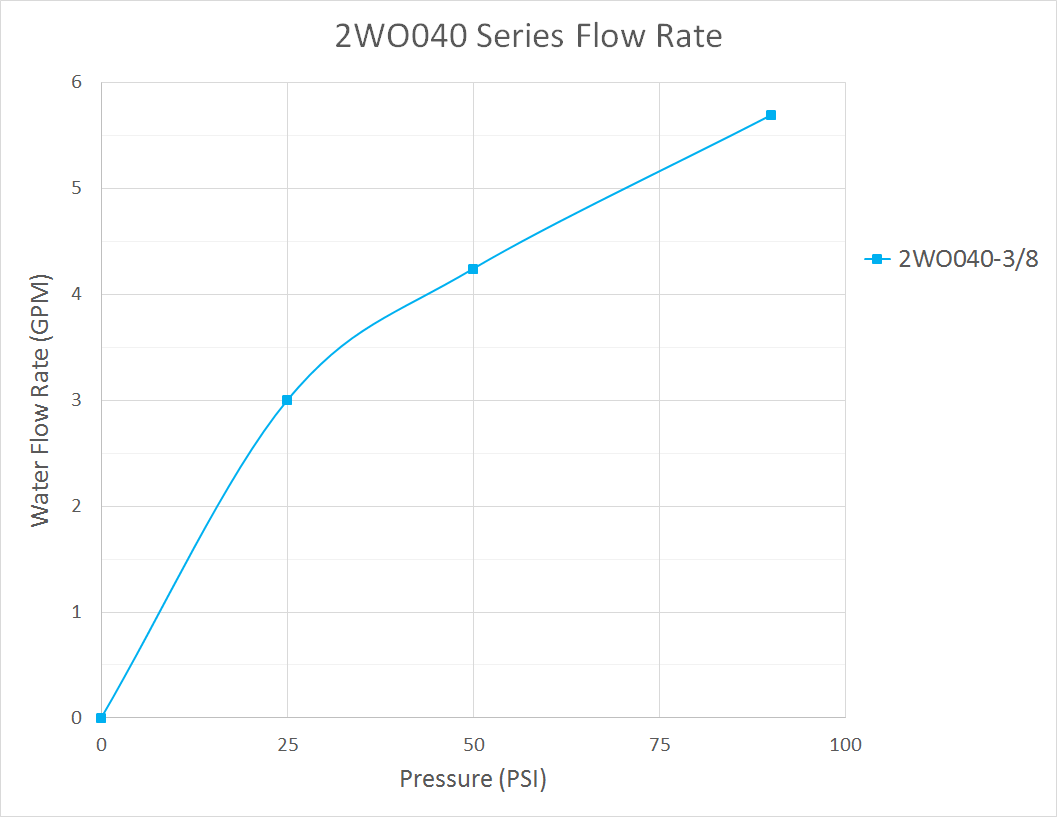

Flow Rate
