Solenoid Valve Specifications and Dimensions: 2V130-250 Series

Specifications Model 2V130-3/8 2V130-1/2 2V250-3/4 2V250-1 Port Size 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT Orifice 13mm 13mm 25mm 25mm Cv 4.8 4.8 12 12 Valve Type Two-Way, Low Power Action Pilot Diaphragm De-Energized State Normally Closed (NC) Body Material Valve Body: Armature Assembly: Brass 316 Stainless Steel Seal Material Standard Option: Upgrade Options: NBR (Buna) Viton (FKM) EPDM Operating Temperature Media with NBR Seal: Media with Viton Seal: 14°F to 176°F (-10°C to 80°C) 5°F to 248°F (-15°C to 120°C) Operating Pressure Standard Option: Upgrade Option: 5PSI to 115PSI 5PSI to 150PSI Electrical Connection Standard Options: Upgrade Options: DIN 43650A Grommet Explosion Proof Coil (200C-E) ATEX Explosion Proof Coil (200C-ATEX) Coil Power AC Coil: DC Coil: 4-8.5VA 3-6.5W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class F Class Coil Duty 100% ED, Continuous Duty Installation No Orientation Requirement Optimum Position: Flow Horizontal and Solenoid Vertical Service Liquid, Water, Oil, Air, Gas, Vacuum, Steam (with Viton) Download Drawings 3D STEP 2V130-3/8 2V130-1/2 2V250-3/4 2V250-1 3D PDF 2V130-3/8 2V130-1/2 2V250-3/4 2V250-1 3D Solidworks 2V130-3/8 2V130-1/2 2V250-3/4 2V250-1 2D AutoCAD 2V130-3/8 2V130-1/2 2V250-3/4 2V250-1

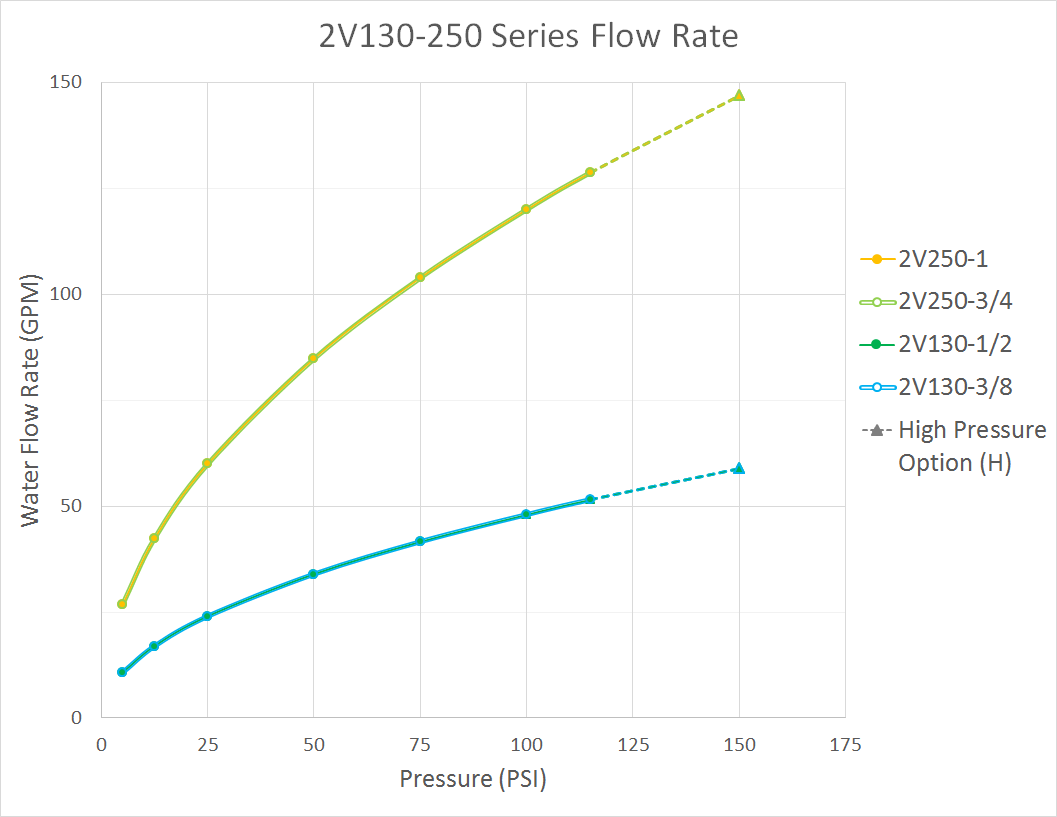

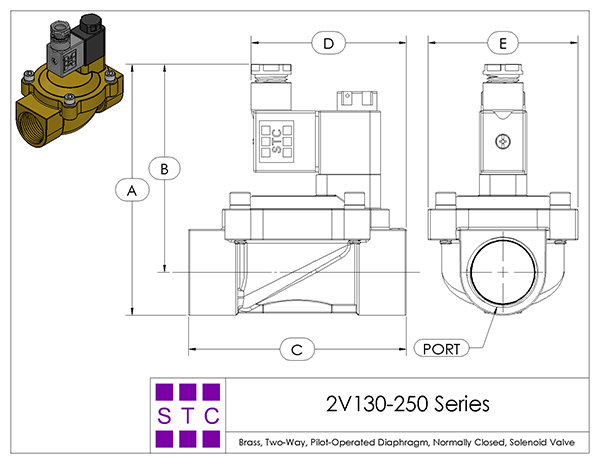

Dimensions 2V130-250 Series Solenoid Valve Dimensions Model Port A B C D E 2V130-3/8 3/8" NPT 104.8 90.3 72.2 72.5 47.7 2V130-1/2 1/2" NPT 104.8 90.3 72.2 72.5 47.7 2V250-3/4 3/4" NPT 116.8 96.8 101.5 72.3 69.8 2V250-1 1" NPT 116.8 96.8 101.5 72.3 69.8 Dimensions for Reference Use Only: Units in mm

2V130-250 Series 2/2 Pilot Operated Diaphragm Normally Closed Solenoid Valve:

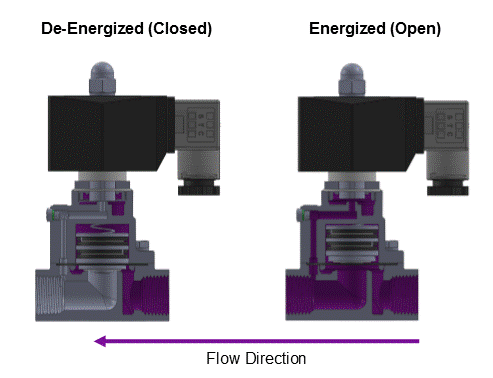

This valve is a two-way, normally closed, pilot-operated diaphragm valve. As shown in the diagrams below, when the coil is de-energized (left diagram), the pilot plunger and diaphragm sit on their respective orifices. The working medium flows through a tiny "bleed orifice" and pressurizes the cavity above the diaphragm - this system pressure, along with the spring force, seals the valve. When the valve is energized, the pilot plunger allows the working medium to flow through the pilog orifice. This releases the pressure above the diaphragm and causes it to lift off of the main orifice, allowing the working medium to flow fully through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the main orifice remains open. The working medium and flow direction are indicated in purple in the diagrams.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.


• To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire
