Solenoid Valve Specifications and Dimensions: 2T060 Series

Specifications Model 2T060-1/4 2T060-3/8 2T060-1/2 Port Size 1/4" NPT 3/8" NPT 1/2" NPT Orifice Standard Option: Upgrade Option: 6mm 2mm to 11mm Cv 2.8 Valve Type 2-Way, Uni-Directional, Isolated Diaphragm Action Direct Acting De-Energized State Normally Closed (NC) Body Material PTFE (Teflon) Seal Material Viton (FKM) Operating Temperature 14°F to 266°F (-10°C to 130°C) Operating Pressure Standard Option: Upgrade Option: Vacuum to 22 PSI 0 PSI to 120 PSI Electrical Connection DIN 43650A Coil Power 20-30W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 25% Duty Cycle If coil is to be energized for longer than 1 hour at a time, we recommend installing a 2W200CC-PS power save device. Installation No Orientation Requirement Optimum Position: Flow Horizontal and Solenoid Vertical Service High Purity Fluid, Corrosive Fluid & Gas, Acid, Alkali, ect.

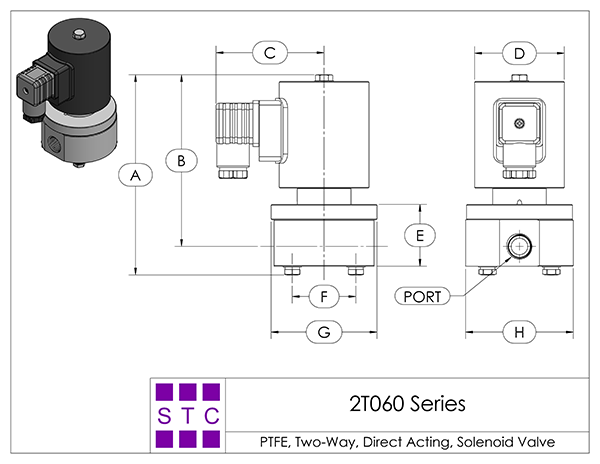

Dimensions 2S012-020-A Series Solenoid Valve Dimensions Model Port A B C D E F G H 2T060-1/4 1/8" NPT 96 83 55 36 35 42 54 31 2T060-3/8 3/8" NPT 133 83 72 60 42 42 106 70 2T060-1/2 1/2" NPT 133 83 72 60 42 42 106 70 Dimensions for Reference Use Only: Units in mm

To Connect the Valve Inlet & Outlet:
• Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve

To Install the Coil:
• Put the coils on to the armture tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn. Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.

To Connect a DIN Coil:
1. Remove the Philips-head screw from the plastic DIN housing & unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic DIN housing.
3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.
4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.
5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.

Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.

Safety Note: Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame-retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.

Operation: The 2T060 series solenoid valve is a direct acting valve & does not require a minimum differential pressure to operate. The cross-section below shows the valve in a closed (de-energized) state. When energized, the plunger directly lifts the isolated diaphragm, allowing the working medium to pass through the valve orifice. When de-energized the spring force returns the diaphragm to the valve orifice & seals the valve.

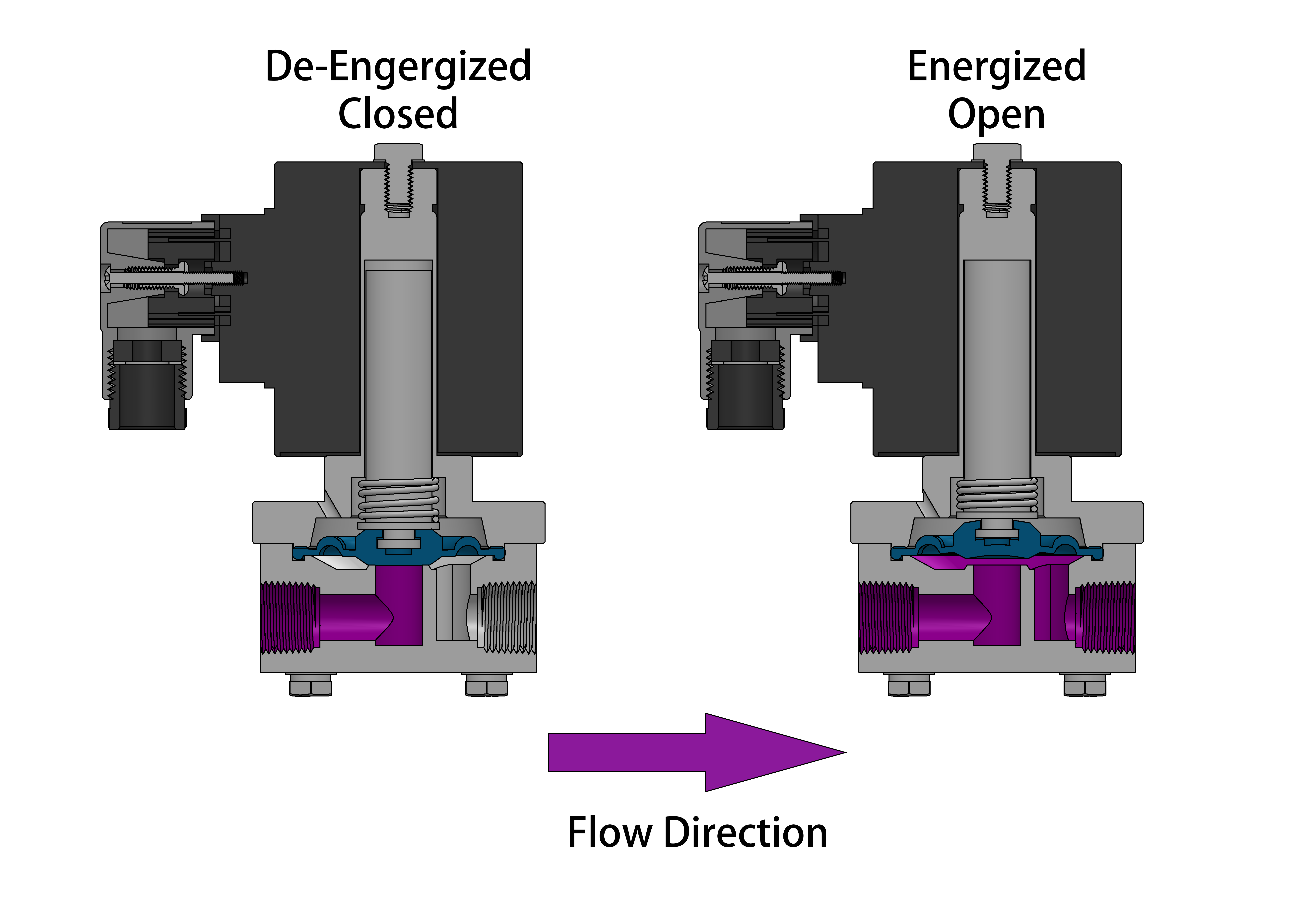

Operation Diagram

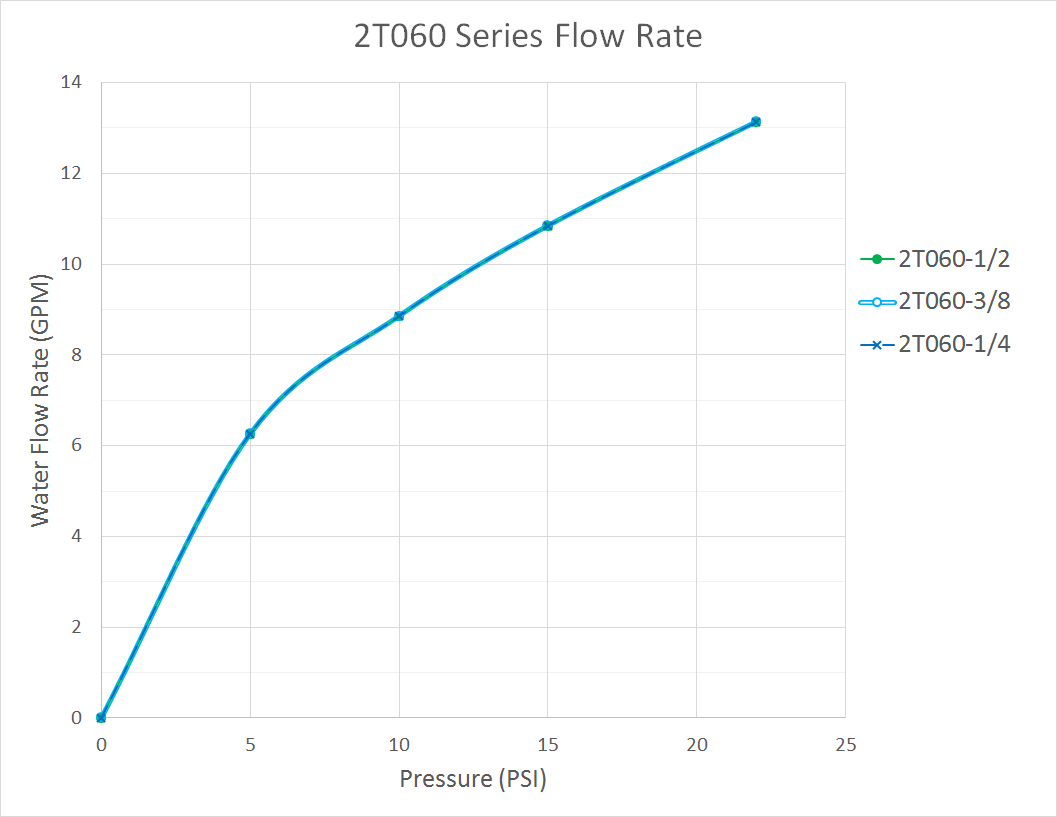

Flow Rate
