Solenoid Valve Specifications and Dimensions: 2S025-050 Series

Specifications Model 2S025-1/4 2S035-1/4 2S040-3/8 2S050-1/4 2S050-3/8 Port Size 1/4" NPT 1/4" NPT 3/8" NPT 1/4" NPT 3/8" NPT Orifice 2.5mm 3.5mm 4mm 5mm 5mm Cv 0.23 0.5 0.6 0.6 1.0 Valve Type 2-Way Action Direct Acting (Poppet) Fast Response Time: <20msec De-Energized State Normally Closed (NC) Body Material Valve Body: Armature Assembly: 304 Stainless Steel Stainless Steel Seal Material Standard Option: Upgrade Options: NBR (Buna) Viton (FKM) Operating Temperature Media with NBR Seal: Media with Viton Seal: 14°F to 176°F (-10°C to 80°C) 5°F to 248°F (-15°C to 120°C) Operating Pressure 0 to 200 PSI 0 to 170 PSI 0 to 150 PSI 0 to 80 PSI Electrical Connection Standard Options: Upgrade Options: DIN 43650A ATEX Explosion Proof Coil (2W200C-ATEX) Coil Power 13W to 30W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 100% ED, Continuous Duty Installation No Orientation Requirement Optimum Position: Flow Horizontal and Solenoid Vertical Service Liquid, Water, Oil, Air, Gas, Steam (with Viton)

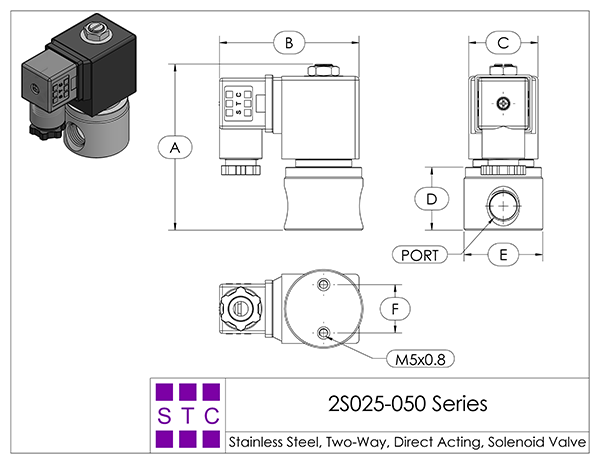

Dimensions 2S025-050 Series Solenoid Valve Dimensions Model Port A B C D E F 2S025-1/4 1/4" NPT 80.4 72.2 36.0 28.2 34.5 25.0 2S035-1/4 1/4" NPT 82.1 72.2 36.0 29.5 41.0 25.0 2S040-3/8 3/8" NPT 84.7 72.2 36.0 32.5 41.0 25.0 2S050-1/4 1/4" NPT 84.7 72.2 36.0 32.5 41.0 25.0 2S050-3/8 3/8" NPT 84.7 72.2 36.0 32.5 41.0 25.0 Dimensions for Reference Use Only: Units in mm

The 2S025-050 valves are direct acting solenoid valves that do not require a minimum operating differential pressure. As shown in the diagram below, when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger and allows the working medium to flow through the orifice. The working medium and flow direction are indicated in purple in the diagram.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage. Normally the STC solenoid valves are reliable for 1 to 5 million cycles.

Operation Diagram

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.


• To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire

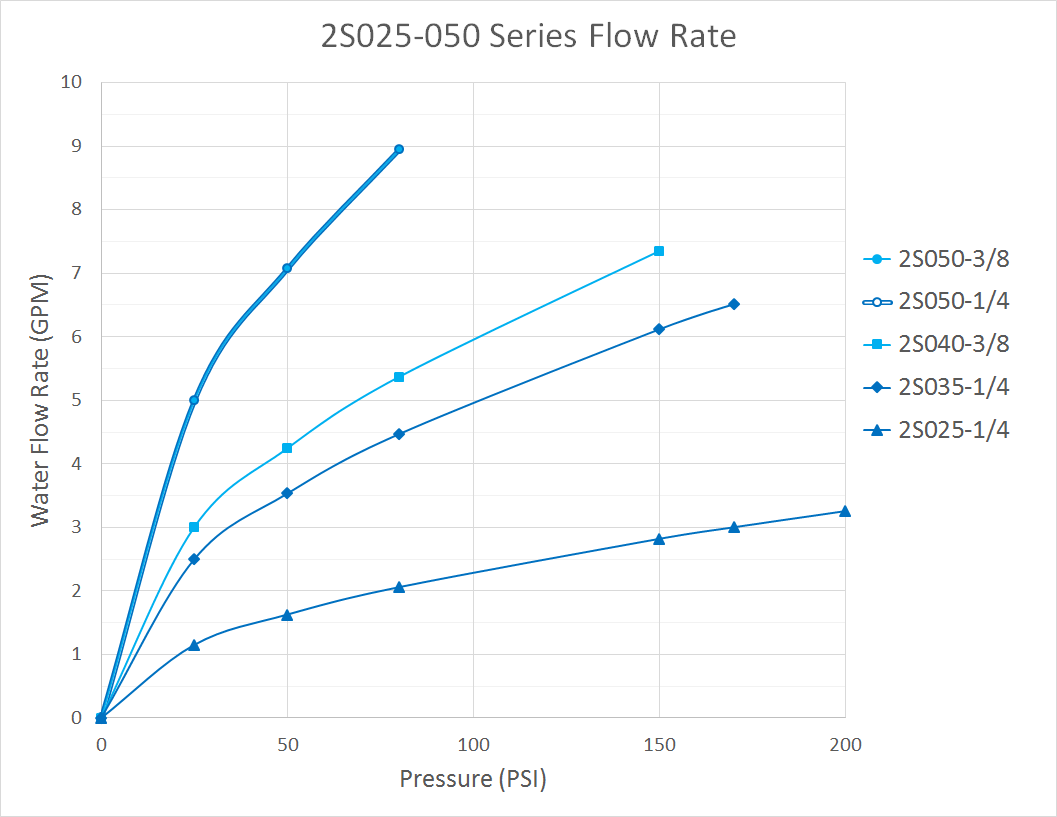

Flow Rate
