Solenoid Valve Specifications and Dimensions: 2S012-020-A Series

Specifications Model 2S012-1/8A 2S012-1/4A 2S020-1/8A 2S020-1/4A Port Size 1/8" NPT 1/4" NPT 1/8" NPT 1/4" NPT Orifice 1.2mm 2.0mm Cv 0.05 0.15 Valve Type 2-Way Action Direct Acting (Poppet) Fast Response Time: <20msec De-Energized State Normally Closed (NC) Body Material Valve Body: Armature Assembly: Stainless Steel Stainless Steel Seal Material Standard Option: Upgrade Option: NBR (Buna) Viton (FKM) Operating Temperature Media with NBR Seal: Media with Viton Seal: 14°F to 176°F (-10°C to 80°C) 5°F to 248°F (-15°C to 120°C) Operating Pressure Vacuum to 200 PSI Vacuum to 150 PSI Electrical Connection Standard Options: Upgrade Options: DIN 43650A Grommet Explosion Proof Coil (200C-E) ATEX Explosion Proof Coil (200C-ATEX) Coil Power 3W to 6.5W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 100% ED, Continuous Duty Installation No Orientation Requirement Optimum Position: Flow Horizontal and Solenoid Vertical Service Liquid, Water, Oil, Air

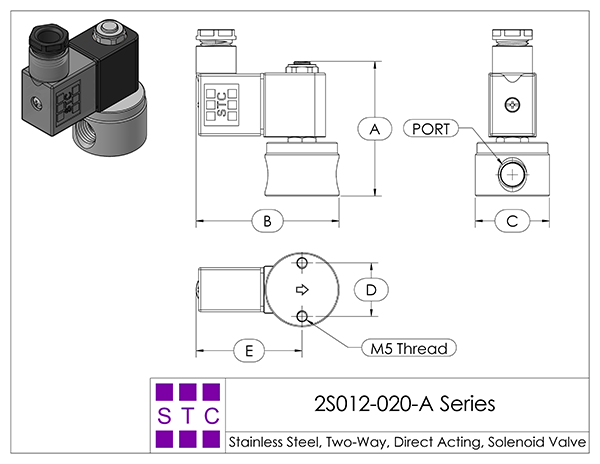

Dimensions 2S012-020-A Series Solenoid Valve Dimensions Model Port A B C D E 2S012-1/8A 1/8" NPT 62.7 66.6 31.5 20 48.7 2S012-1/4A 1/4" NPT 62.7 66.6 34.5 25 48.7 2S020-1/8A 1/8" NPT 62.7 66.6 31.5 20 48.7 2S020-1/4A 1/4" NPT 62.7 66.6 34.5 25 48.7 Dimensions for Reference Use Only: Units in mm

To Connect the Valve Inlet & Outlet:
Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve

To Install the Coil:
Put the coils on to the armature tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn. Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.

To Connect a DIN Coil:
1. Remove the Philips-head screw from the plastic DIN housing & unplug it from the DIN coil
2. From the screw opening, push the terminal block out from the plastic DIN housing.
3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.
4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.
5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.
Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.

Safety Note: Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame-retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.

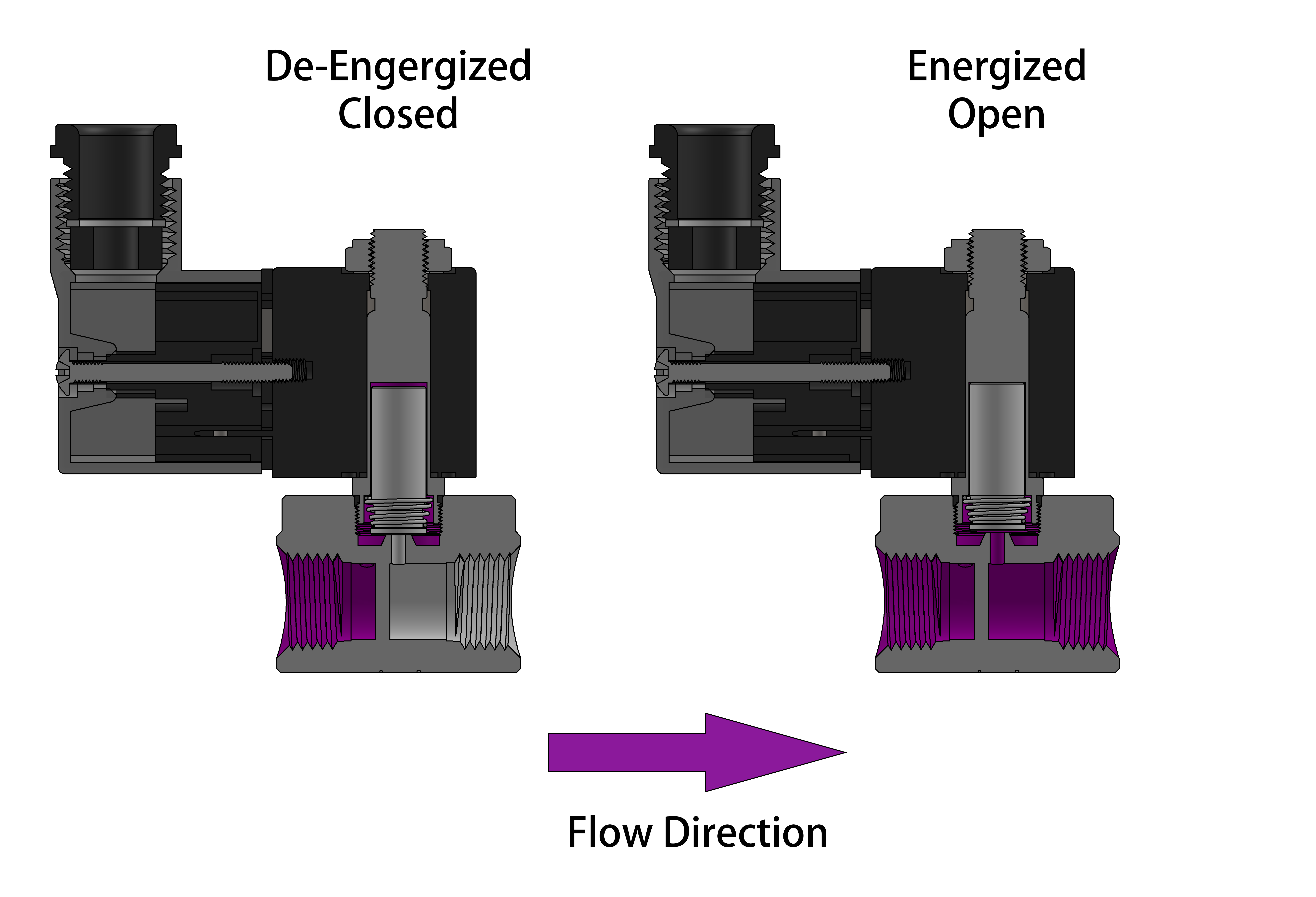

Operation: This valve is a two-way, normally closed, direct-acting valve & does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized (left diagram), the plunger rests on the main orifice & is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger & allows the working medium to flow through the orifice. The working medium & flow direction are indicated in purple in the diagrams.

Operation Diagram

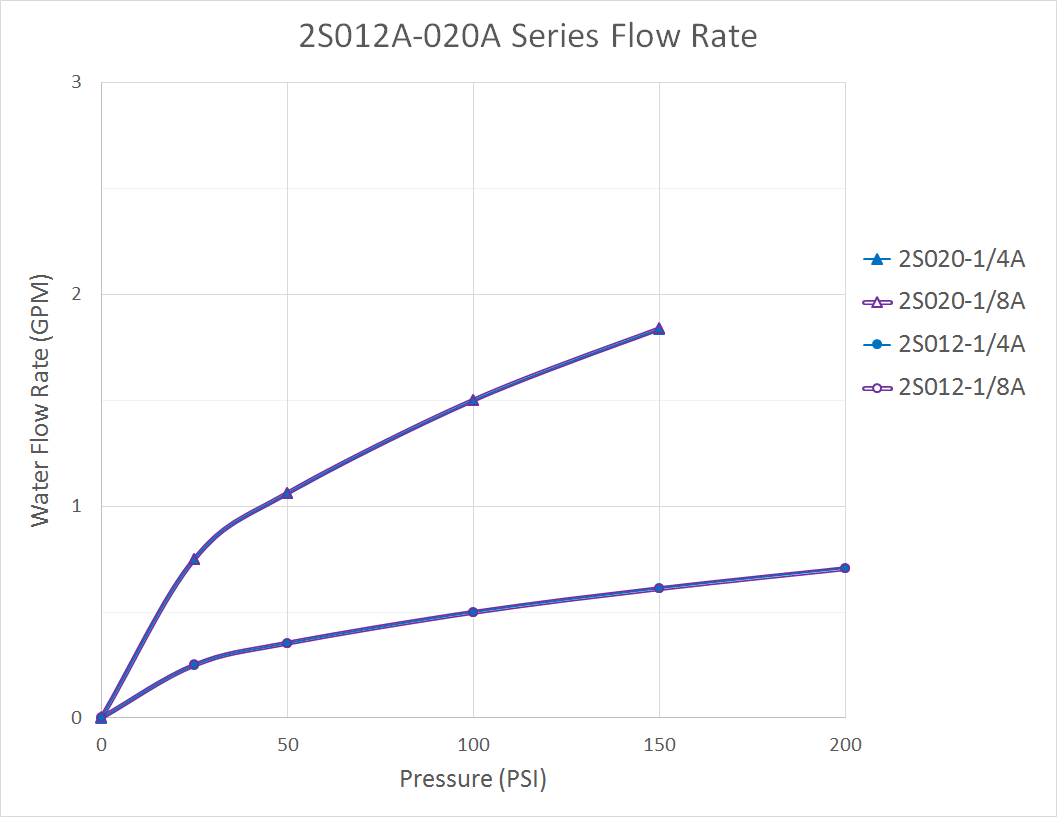

Flow Rate
