Solenoid Valve Specifications and Dimensions: 2RO130-500 and 2RSO130-500 Series

Specifications
Brass 2RO130 2RO150 2RO200 2RO250 2RO320 2RO400 2RO500
Stainless Steel 2RSO130 2RSO150 2RSO200 2RSO250 2RSO320 2RSO400 2RSO500
Port Size 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1 1/4" NPT 1 1/2" NPT 2" NPT
Orifice 13mm 13mm 20mm 25mm 32mm 40mm 50mm
Cv 4.5 4.5 7.6 12 24 30 48
Valve Type 2-Way
Action Pilot Diaphragm, Uni-Directional
De-Energized State Normally Open (NO)
Body Material
2RO Series:
2RSO Series:
Armature Assembly: 		Brass
316 Stainless Steel
Stainless Steel
Seal Material
Standard Option:
Upgrade Options:

 NBR (Buna)
Viton (FKM)
EPDM
Operating Temperature
Media with NBR Seal:
Media with Viton Seal:
Ambient: 		14°F to 176°F (-10°C to 80°C)
14°F to 266°F (-10°C to 130°C)
23°F to 110°F (-5°C to 43°C)
Operating Pressure
AC Coil:
DC Coil: 		4.5PSI to 185PSI
4.5PSI to 87PSI
AC Coil:
DC Coil: 		4.5PSI to 116PSI
4.5PSI to 87PSI
Electrical Connection
Standard Option:
Upgrade Option: 		DIN 43650A
ATEX Explosion Proof Coil
Coil Power
AC Coil:
DC Coil: 		28VA
12-20W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz)
Voltage Tolerance ±10% of Specified Voltage
Ingress Protection IP65
Insulation Class H Class
Coil Duty 100% ED, Continuous Duty
Installation No Orientation Requirement
Service Liquid, Water, Oil, Air, Gas
Download Drawings
3D STEP 2RO130 2RO150 2RO200 2RO250 2RO320 2RO400 2RO500
2RSO130 2RSO150 2RSO200 2RSO250 2RSO320 2RSO400 2RSO500
3D PDF 2RO130 2RO150 2RO200 2RO250 2RO320 2RO400 2RO500
2RSO130 2RSO150 2RSO200 2RSO250 2RSO320 2RSO400 2RSO500
3D Solidworks 2RO130 2RO150 2RO200 2RO250 2RO320 2RO400 2RO500
2RSO130 2RSO150 2RSO200 2RSO250 2RSO320 2RSO400 2RSO500
2D AutoCAD 2RO130 2RO150 2RO200 2RO250 2RO320 2RO400 2RO500
2RSO130 2RSO150 2RSO200 2RSO250 2RSO320 2RSO400 2RSO500

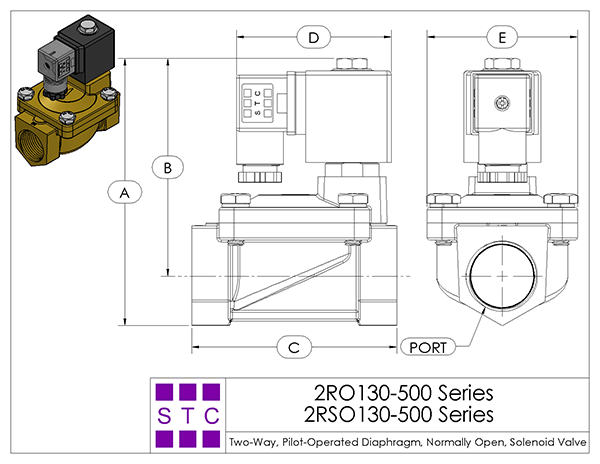

Dimensions
2RO130-500 & 2RSO130-500 Series Solenoid Valve Dimensions
Brass Stainless Steel Port A B C D E
2RO130-3/8 2RSO130-3/8 3/8" NPT 107.5 92.7 65.0 72.2 48.2
2RO150-1/2 2RSO150-1/2 1/2" NPT 107.5 92.7 65.0 72.2 48.2
2RO200-3/4 2RSO200-3/4 3/4" NPT 114.4 96.1 74.0 72.2 58.1
2RO250-1 2RSO250-1 1" NPT 124.3 101.4 95.5 72.2 70.0
2RO320-1 1/4 2RSO320-1 1/4 1 1/4" NPT 143.0 111.2 129.4 72.2 95.6
2RO400-1 1/2 2RSO400-1 1/2 1 1/2" NPT 142.8 111.2 129.6 72.2 96.0
2RO500-2 2RSO500-2 2" NPT 161.4 121.9 162.4 72.2 119.0
Dimensions for Reference Use Only: Units in mm
