Solenoid Valve Specifications and Dimensions: 2R130-500 and 2RS130-500 Series

Specifications
Brass 2R130 2R150 2R200 2R250 2R320 2R400 2R500
Stainless Steel 2RS130 2RS150 2RS200 2RS250 2RS320 2RS400 2RS500
Port Size 3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1 1/4" NPT 1 1/2" NPT 2" NPT
Orifice 13mm 15mm 20mm 25mm 32mm 40mm 50mm

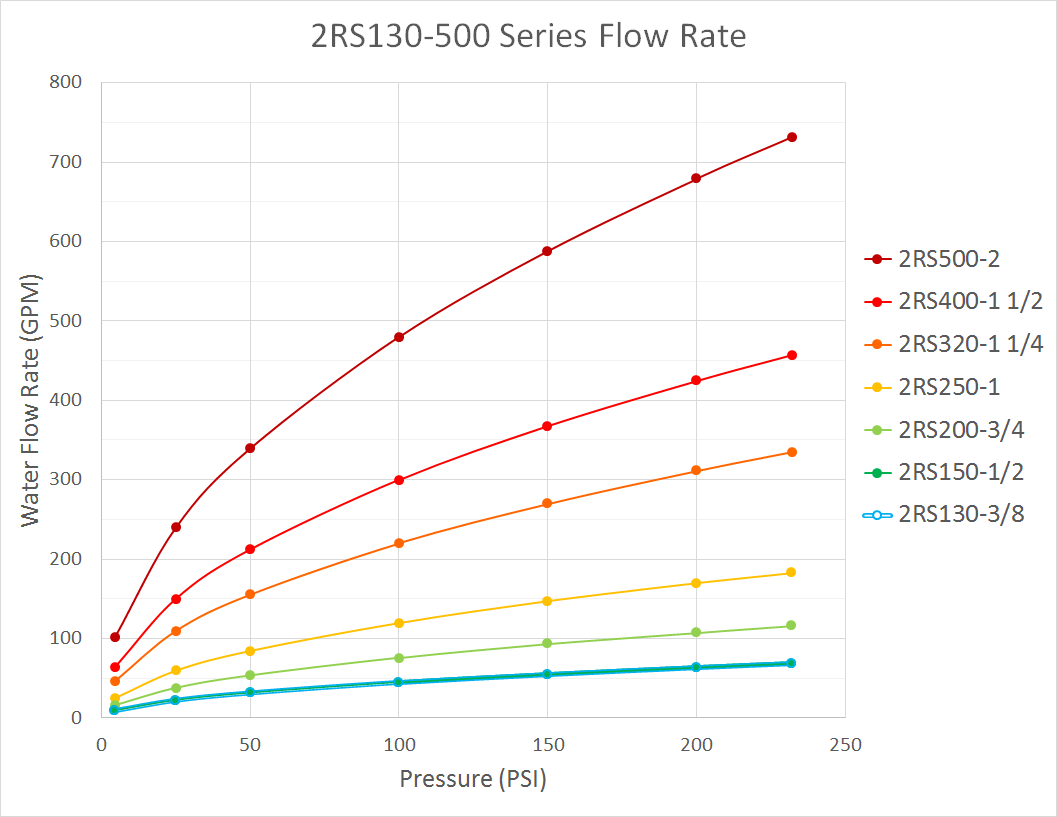

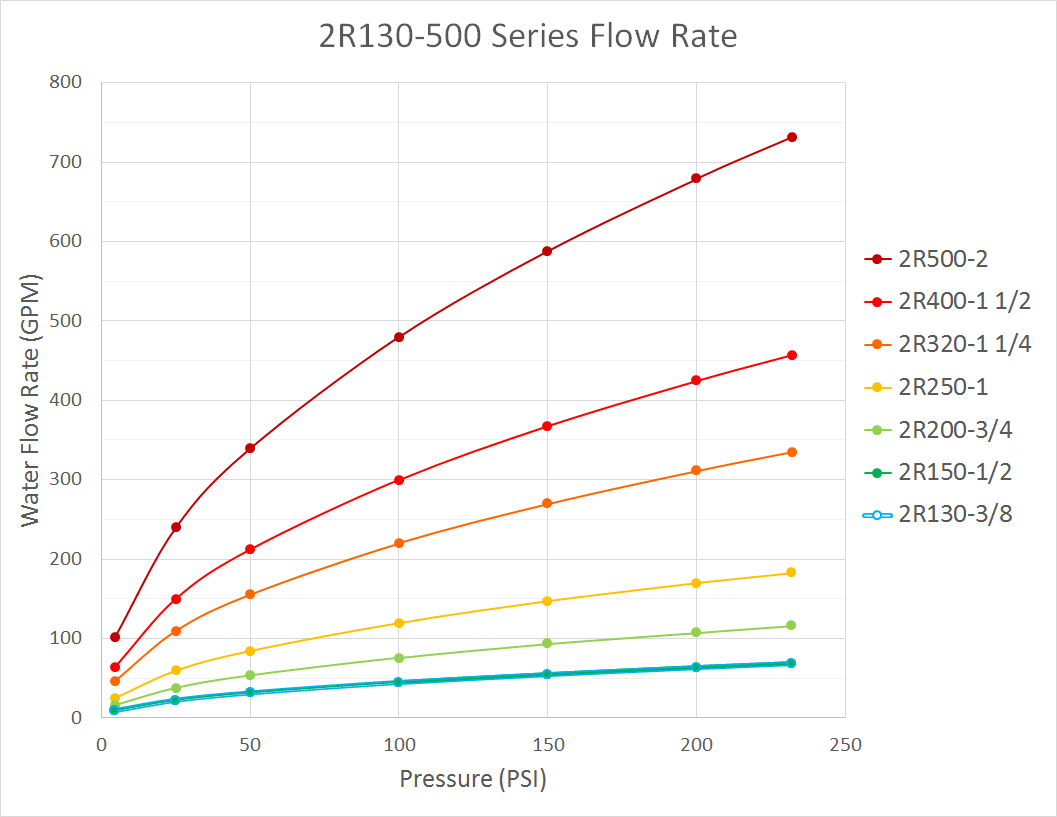

Cv 4.5 4.5 7.6 12 24 30 48
Valve Type 2-Way
Action Pilot Diaphragm, Uni-Directional
De-Energized State Normally Closed (NC)
Body Material
2R Series:
2RS Series:
Armature Assembly: 		Brass
316 Stainless Steel
Stainless Steel
Seal Material
Standard Option:
Upgrade Options:

 NBR (Buna)
Viton (FKM)
EPDM
Operating Temperature
Media with NBR Seal:
Media with Viton Seal:
Ambient: 		14°F to 176°F (-10°C to 80°C)
14°F to 266°F (-10°C to 130°C)
23°F to 110°F (-5°C to 43°C)
Operating Pressure 4.5PSI to 232PSI
Electrical Connection
Standard Option:
Upgrade Option:
 DIN 43650A
ATEX Explosion Proof Coil
Coil Power
AC Coil:
DC Coil: 		28VA
12-20W
Voltage Options
12VDC
24VDC
24VAC (50/60Hz)
110/120VAC (50/60Hz)
220/240VAC (50/60Hz)
Voltage Tolerance ±10% of Specified Voltage
Ingress Protection IP65
Insulation Class H Class
Coil Duty 100% ED, Continuous Duty
Installation No Orientation Requirement
Service Liquid, Water, Oil, Air, Gas
Download Drawings
3D STEP 2R130 2R150 2R200 2R250 2R320 2R400 2R500
2RS130 2RS150 2RS200 2RS250 2RS320 2RS400 2RS500
3D PDF 2R130 2R150 2R200 2R250 2R320 2R400 2R500
2RS130 2RS150 2RS200 2RS250 2RS320 2RS400 2RS500
3D Solidworks 2R130 2R150 2R200 2R250 2R320 2R400 2R500
2RS130 2RS150 2RS200 2RS250 2RS320 2RS400 2RS500
2D AutoCAD 2R130 2R150 2R200 2R250 2R320 2R400 2R500
2RS130 2RS150 2RS200 2RS250 2RS320 2RS400 2RS500
Dimensions

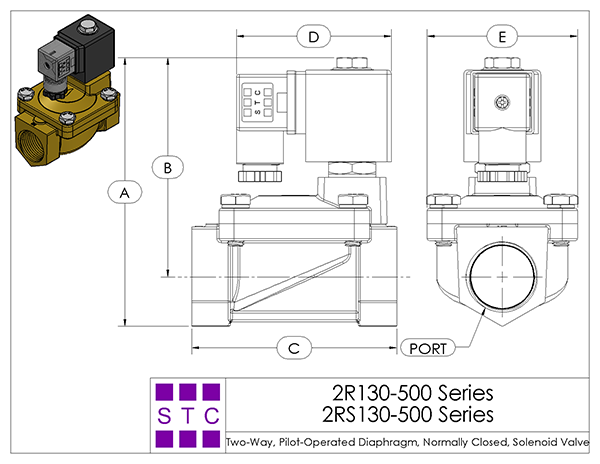

2R130-500 & 2RS130-500 Series Solenoid Valve Dimensions
Brass Stainless Steel Port A B C D E
2R130-3/8 2RS130-3/8 3/8" NPT 108.2 93.4 65.0 72.2 48.2
2R150-1/2 2RS150-1/2 1/2" NPT 108.2 93.4 65.0 72.2 48.2
2R200-3/4 2RS200-3/4 3/4" NPT 115.1 96.8 74.0 72.2 58.1
2R250-1 2RS250-1 1" NPT 125.0 102.1 95.5 72.2 70.0
2R320-1 1/4 2RS320-1 1/4 1 1/4" NPT 143.2 111.4 129.4 72.2 95.6
2R400-1 1/2 2RS400-1 1/2 1 1/2" NPT 143.0 111.4 129.6 72.2 96.0
2R500-2 2RS500-2 2" NPT 161.6 122.1 162.4 72.2 119.0
Dimensions for Reference Use Only: Units in mm
