Solenoid Valve Specifications and Dimensions: 2P160-250 & 2PO160-250 Series

Specifications Model 2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1 Port Size 1/2" NPT 3/4" NPT 1" NPT 1/2" NPT 3/4" NPT 1" NPT Orifice 16mm 20mm 25mm 16mm 20mm 25mm Cv 4.8 7.6 12 4.8 7.6 12 Valve Type 2-Way Action Direct Lift Diaphragm, Uni-Directional De-Energized State Normally Closed (NC) Normally Open (NO) Body Material Plastic Nylon (PA66) Seal Material Standard Option: Upgrade Options: NBR (Buna) Viton (FKM) EPDM Operating Temperature Media: Ambient: 23°F to 122°F (-5°C to 50°C) 23°F to 95°F (-5°C to 35°C) Operating Pressure Vacuum to 90 PSI Electrical Connection DIN 43650A Coil Power AC Coil: DC Coil: 28VA 12-40W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 100% ED, Continuous Duty Installation No Orientation Requirement Service Liquid, Water, Oil, Air, Inert Gas, Vacuum Download Drawings 3D STEP 2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1 3D PDF 2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1 3D Solidworks 2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1 2D AutoCAD 2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1

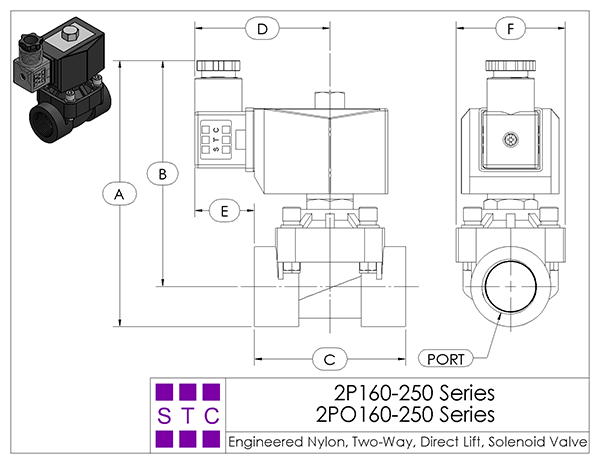

Dimensions 2P160-250 & 2PO160-250 Series Solenoid Valve Dimensions Model Port A B C D E F 2P160-1/2 1/2" NPT 118.5 102.6 73.9 62.9 25.9 50.8 2P200-3/4 3/4" NPT 123.8 105.2 70.4 62.9 27.7 50.8 2P250-1 1" NPT 131.7 109.8 107.4 62.9 9.2 82.6 2PO160-1/2 1/2" NPT 130.6 114.7 73.9 62.9 25.9 50.8 2P200-3/4 3/4" NPT 134.0 115.3 70.4 62.9 27.7 50.8 2P250-1 1" NPT 143.4 121.4 107.4 62.9 9.2 82.6 Dimensions for Reference Use Only: Units in mm

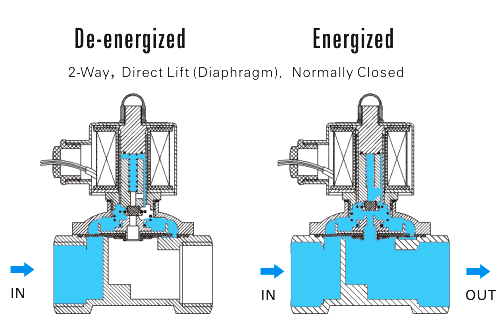

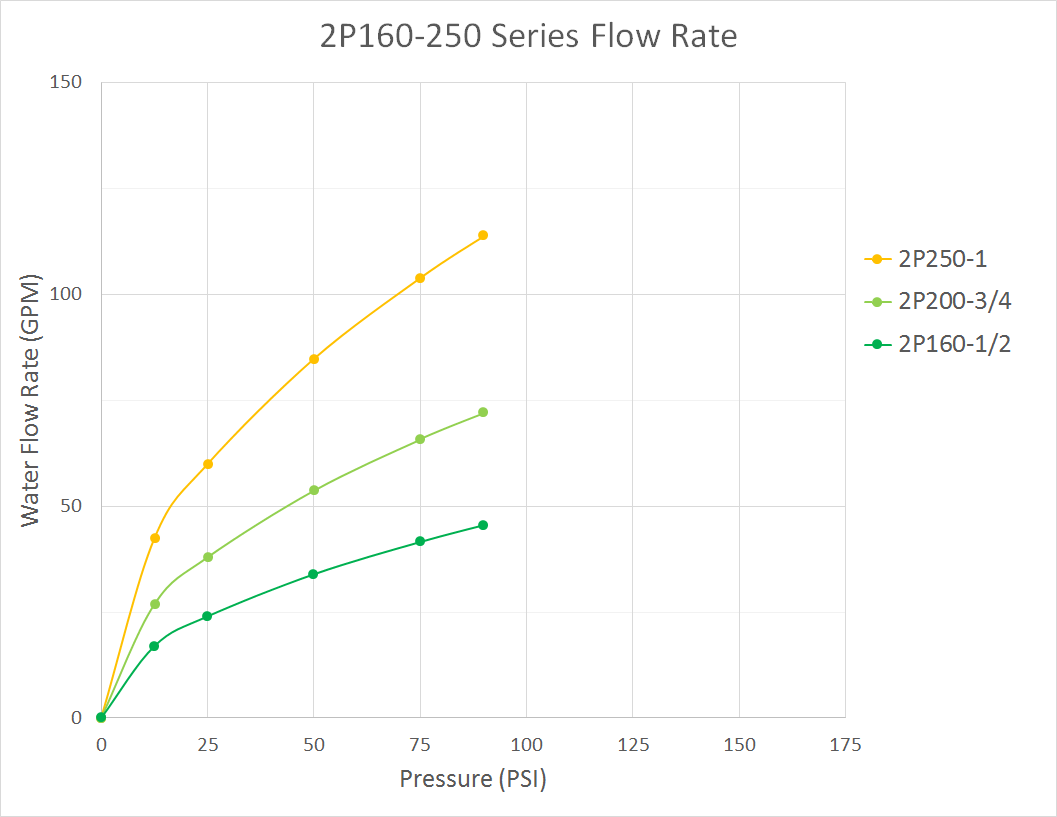

2P160-250 Series 2/2 Direct Lift Diaphragm Normally Closed Solenoid Valve:
This valve is a two-way, normally closed, direct lift, zero differential solenoid valve. When the valve receives an electrical signal, a magnetic field is formed which attracts the plunger covering the main orifice to lift off, causing system pressure to drop. As system pressure on the top of the diaphragm is reduced, full system pressure on the other side of the diaphragm acts to lift the diaphragm away from the main orifice, which allows media to flow through the valve. Since the bleed orifice is dimensionally smaller than the pilot orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the pilot orifice remains open.
When the valve is de-energized, it releases its hold on the plunger. Then the plunger forced by the spring drops and covers the main orifice. The system pressure builds up on the top of the diaphragm through the bleed orifice, forcing the diaphragm down until it covers the main orifice and stops media flow through the valve.

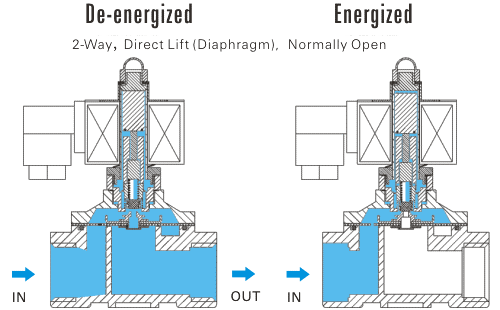

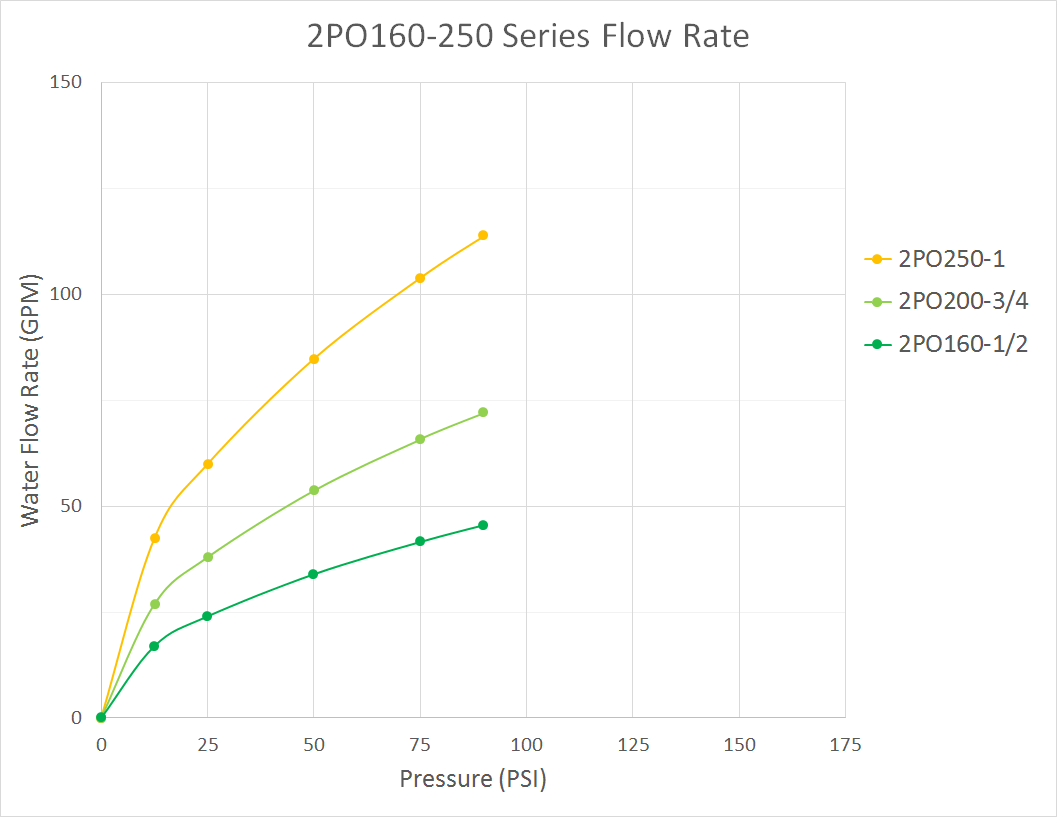

2PO160-250 Series 2/2 Direct Lift Diaphragm Normally Open Solenoid Valve:
To Close: When the valve is energized, the coil repels the plunger then the plunger covers the main orifice. The system pressure builds up on the top of the diaphragm/piston through the bleed orifice, forcing the diaphragm/piston down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0PSI, the valve also can be operated.
To Open: When the valve is de-energized, the coil releases the plunger. The plunger uncovers the pilot orifice causing system pressure holding the diaphragm/piston closed to drop. As system pressure on the top of the diaphragm/piston is reduced, full system pressure on the opposite side of the diaphragm/piston acts to lift the diaphragm/piston away from the main orifice, which allows the full media flow through the valve. When the system pressure is 0PSI, the valve can be operated.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

CAUTION: Do not energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
•
  To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire
