Solenoid Valve Specifications and Dimensions: 2LS150-500 Series

Specifications
Model 2LS150-1/2 2LS200-3/4 2LS250-1 2LS320-1 1/4 2LS400-1 1/2 2LS500-2
Port Size 1/2" NPT 3/4" NPT 1" NPT 1 1/4" NPT 1 1/2" NPT 2" NPT
Orifice 15mm 20mm 25mm 32mm 40mm 50mm
Cv 4.8 7.6 12 24 30 48
Valve Type 2-Way
Action Semi-Direct Lift Piston
De-Energized State Normally Closed (NC)
Body Material
Valve Body:
Armature Assembly: 		304 Stainless Steel
Stainless Steel
Seal Material PTFE (Teflon)
Operating Temperature
Media:
Ambient: 		23°F to 356°F (-5°C to 180°C)
23°F to 122°F (-5°C to 50°C)
Operating Pressure
AC Coil:
DC Coil: 		0PSI to 145PSI
5PSI to 72PSI
Electrical Connection DIN 43650A
Coil Power
AC Coil:
DC Coil: 		28VA
25-40W
Voltage Options
12VDC
24VDC
24VAC (50/60Hz)
110/120VAC (50/60Hz)
220/240VAC (50/60Hz)
Voltage Tolerance ±10% of Specified Voltage
Ingress Protection IP65
Insulation Class H Class
Coil Duty 100% ED, Continuous Duty
Installation No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service Liquid, Water, Oil, Air, Inert Gas, Steam, Vacuum
Download Drawings
3D STEP 2LS150-1/2 2LS200-3/4 2LS250-1 2LS320-1 1/4 2LS400-1 1/2 2LS500-2
3D PDF 2LS150-1/2 2LS200-3/4 2LS250-1 2LS320-1 1/4 2LS400-1 1/2 2LS500-2
3D Solidworks 2LS150-1/2 2LS200-3/4 2LS250-1 2LS320-1 1/4 2LS400-1 1/2 2LS500-2
2D AutoCAD 2LS150-1/2 2LS200-3/4 2LS250-1 2LS320-1 1/4 2LS400-1 1/2 2LS500-2
Dimensions

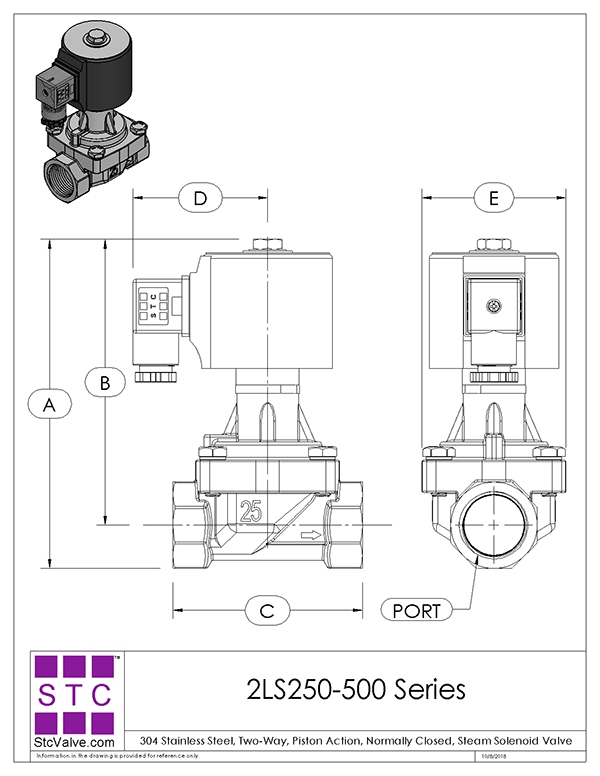

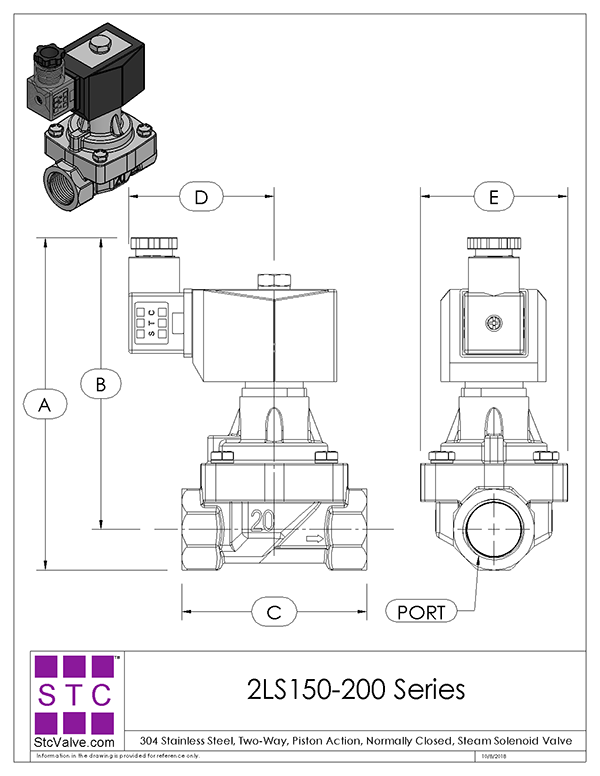

2LS150-500 Series Solenoid Valve Dimensions
Brass Port A B C D E
2LS150-1/2 1/2" NPT 135.6 121.1 65.7 62.9 58.2
2LS200-3/4 3/4" NPT 143.5 126.0 80.0 62.9 63.6
2LS250-1 1" NPT 160.0 139.0 92.0 65.4 69.9
2LS320-1 1/4 1 1/4" NPT 172.4 145.4 116.0 65.4 85.3
2LS400-1 1/2 1 1/2" NPT 177.1 148.1 121.8 65.4 90.2
2LS500-2 2" NPT 196.2 161.2 167.7 65.4 118.0
Dimensions for Reference Use Only: Units in mm
