Solenoid Valve Specifications and Dimensions: 2L170-300 Series

Specifications Model 2L170-1/2 2L170-3/4 2L200-1 2L300-1 1/2 Port Size 1/2" NPT 3/4" NPT 1" NPT 1 1/2" NPT Orifice 17mm 17mm 20mm 30mm Cv 4.8 4.8 12 22 Valve Type 2-Way Action Pilot Piston, Uni-Directional De-Energized State Normally Closed (NC) Body Material Brass Seal Material PTFE (Teflon) Operating Temperature Media: Ambient: 23°F to 356°F (-5°C to 180°C) 23°F to 122°F (-5°C to 50°C) Operating Pressure 7PSI to 232PSI at 25°C Electrical Connection DIN 43650A Coil Power AC Coil: DC Coil: 28VA 13-40W Voltage Options 12VDC 24VDC 24VAC (50/60Hz) 110/120VAC (50/60Hz) 220/240VAC (50/60Hz) Voltage Tolerance ±10% of Specified Voltage Ingress Protection IP65 Insulation Class H Class Coil Duty 100% ED, Continuous Duty Installation Valve Vertical, Horizontal Flow Service Liquid, Water, Oil, Air, Gas, Steam Download Drawings 3D STEP 2L170-1/2 2L170-3/4 2L200-1 2L300-1 1/2 3D PDF 2L170-1/2 2L170-3/4 2L200-1 2L300-1 1/2 3D Solidworks 2L170-1/2 2L170-3/4 2L200-1 2L300-1 1/2 2D AutoCAD 2L170-1/2 2L170-3/4 2L200-1 2L300-1 1/2

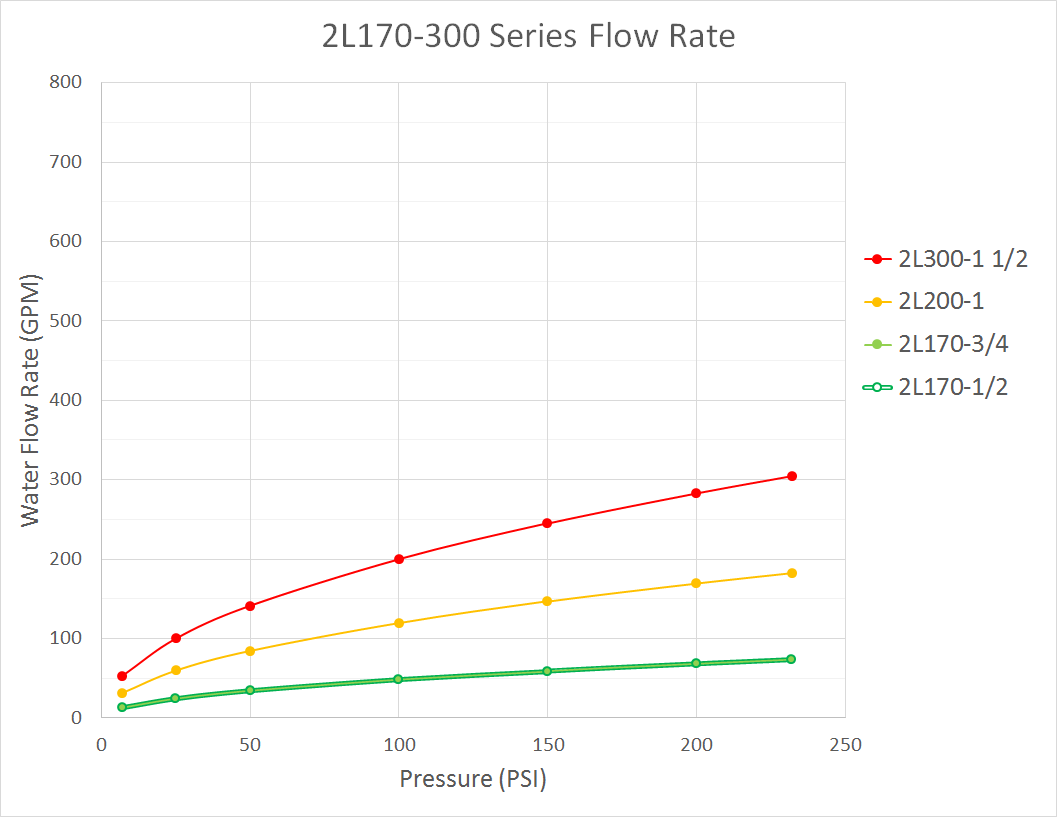

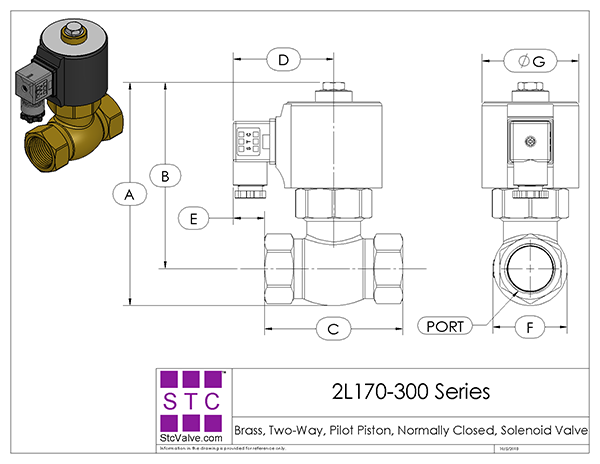

Dimensions 2E100-250 Series Solenoid Valve Dimensions Model Port A B C D E F G 2L170-1/2 1/2" NPT 134.5 115.5 81.3 65.4 24.7 38.3 63.0 2L170-3/4 3/4" NPT 135.5 115.6 82.0 65.4 24.4 40.3 63.0 2L200-1 1" NPT 145.4 121.4 90.0 65.4 20.4 48.5 63.0 2L300-1 1/2 1 1/2" NPT 165.3 131.5 114.4 65.4 9.7 68.0 63.0 Dimensions for Reference Use Only: Units in mm

2L Series 2/2 Direct Lift Piston Normally Closed Solenoid Valve:
This valve is a two-way, normally closed, internal Pilot Piston solenoid valve and requires minimum 7PSI differential operating pressure. As shown in the diagrams below, when the coil is de-energized (left diagram), the pilot plunger and pison sit on their respective orifices. The working medium flows through a tiny "bleed orifice" and pressurizes the cavity above the piston - this system pressure, along with the spring force, seals the valve. When the valve is energized, the pilot plunger allows the working medium to flow through the pilot orifice. This releases the pressure above the diaphragm and causes the incoming pressure to push it off of the main orifice, allowing the working medium to flow fully through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the main orifice remains open. The working medium and flow direction are indicated in purple in the diagrams.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting and unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.


• To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire
