High Pressure Solenoid Valve Specifications and Dimensions: 2E100-250 Series
| Specifications |
| Model |
2E100-3/8 |
2E150-1/2 |
2E200-3/4 |
2E250-1 |
| Port Size |
3/8" NPT |
1/2" NPT |
3/4" NPT |
1" NPT |
| Orifice |
10mm |
15mm |
20mm |
25mm |

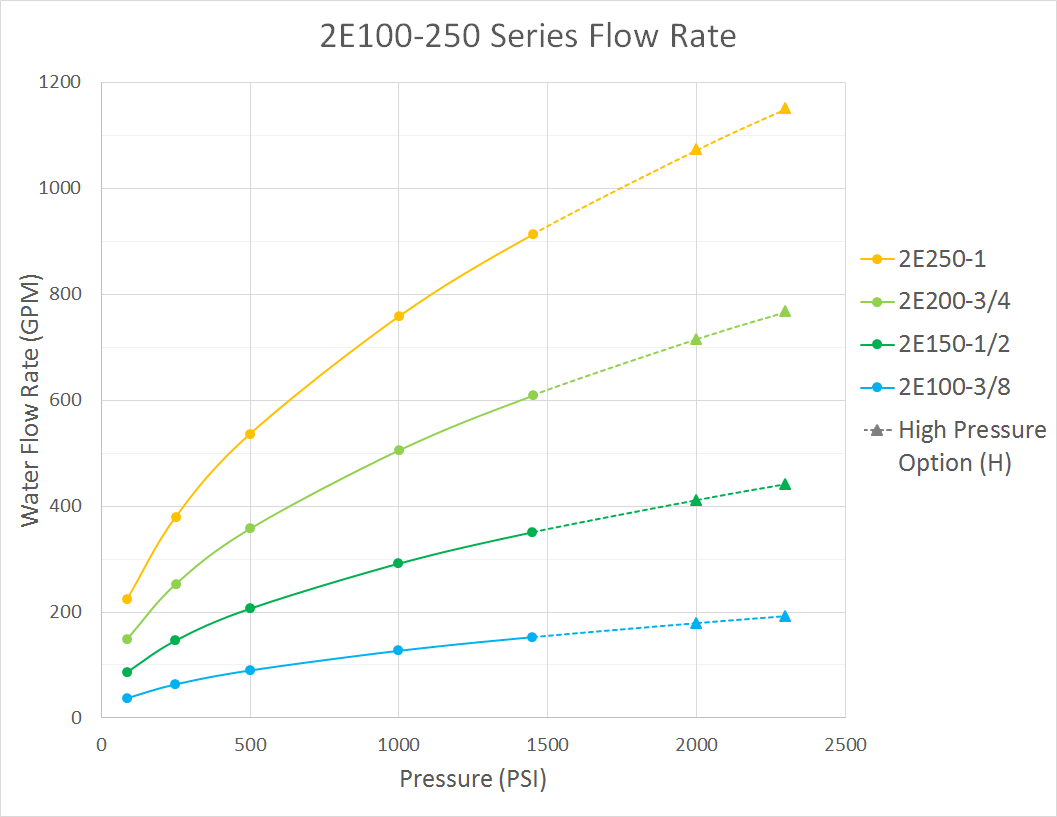

| Cv |
4 |
9.2 |
16 |
24 |
| Valve Type |
2-Way, High Pressure
|
| Action |
Pilot Piston
|
| De-Energized State |
Normally Closed (NC)
|
| Body Material |
Valve Body:
Armature Assembly:
|
304 Stainless Steel
Stainless Steel
|
|
| Seal Material |
PTFE (Teflon) and Viton (FKM)
|
| Operating Temperature |
-40°F to 356°F (-40°C to 180°C)
With non-freezing medium
|
| Operating Pressure |
Standard Option:
High Pressure (H) Option:
|
87PSI to 1450PSI at 77°F
97PSI to 2300PSI
|
|
| Electrical Connection |
Standard Option:
Upgrade Options:
|
DIN 43650A
ATEX Explosion Proof Coil
|
|
| Coil Power |
AC Coil:
DC Coil:
|
33VA
13-40W
|
|
| Voltage Options
|
|
|
12VDC
24VDC
24VAC (50/60Hz)
110/120VAC (50/60Hz)
220/240VAC (50/60Hz)
|
|
| Voltage Tolerance |
±10% of Specified Voltage
|
| Ingress Protection |
IP65
|
| Insulation Class |
H Class
|
| Coil Duty |
100% ED, Continuous Duty
|
| Installation |
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
It is recommended to install a 150 mesh strainer upstream with a porosity ≤ 100µ
|
| Service |
Liquid, Water, Oil, Air
Option: Cryogenic material with all PTFE Seals & Seat
|
| Download Drawings |
| 3D STEP |
2E100-3/8 |
2E150-1/2 |
2E200-3/4 |
2E250-1 |
| 3D PDF |
2E100-3/8 |
2E150-1/2 |
2E200-3/4 |
2E250-1 |
| 3D Solidworks |
2E100-3/8 |
2E150-1/2 |
2E200-3/4 |
2E250-1 |
| 2D AutoCAD |
2E100-3/8 |
2E150-1/2 |
2E200-3/4 |
2E250-1 |
|

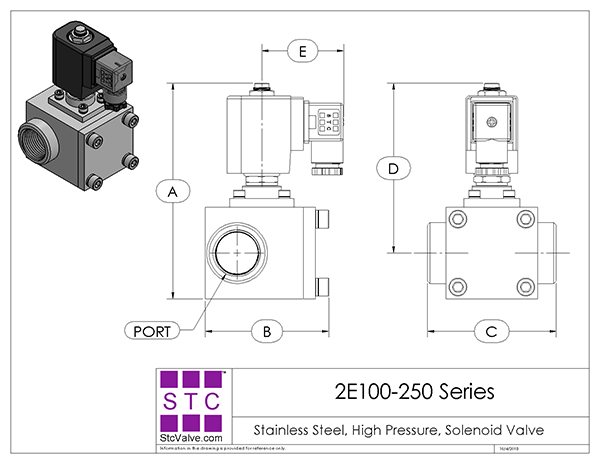

| Dimensions |
|
| 2E100-250 Series Solenoid Valve Dimensions |
| Model |
Port |
A |
B |
C |
D |
E |
| 2E100-3/8 |
3/8" NPT |
124.8 |
55.7 |
60.2 |
105.8 |
57.2 |
| 2E150-1/2 |
1/2" NPT |
136.6 |
65.0 |
70.0 |
111.6 |
57.2 |
| 2E200-3/4 |
3/4" NPT |
140.7 |
74.2 |
80.0 |
113.7 |
57.2 |
| 2E250-1 |
1" NPT |
150.7 |
88.4 |
90.0 |
118.7 |
57.2 |
|
Dimensions for Reference Use Only: Units in mm
|
|
Electrical Coil Connections
-
To Connect a DIN Coil:
-
Remove the Philips screw from the plastic housting and unplug from the DIN coil.
-
Use the removed screw to push the terminal block out of the plastic DIN housing.
-
Note the "1", "2", and ground "⏚" symbols.
-
For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
-
For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
-
To Connect a Grommet Coil:
-
For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
-
For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
-
For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
-
GREEN = Ground Wire
-
BLUE = Positive or HOT Wire
-
BROWN = Negative or Neutral Wire
