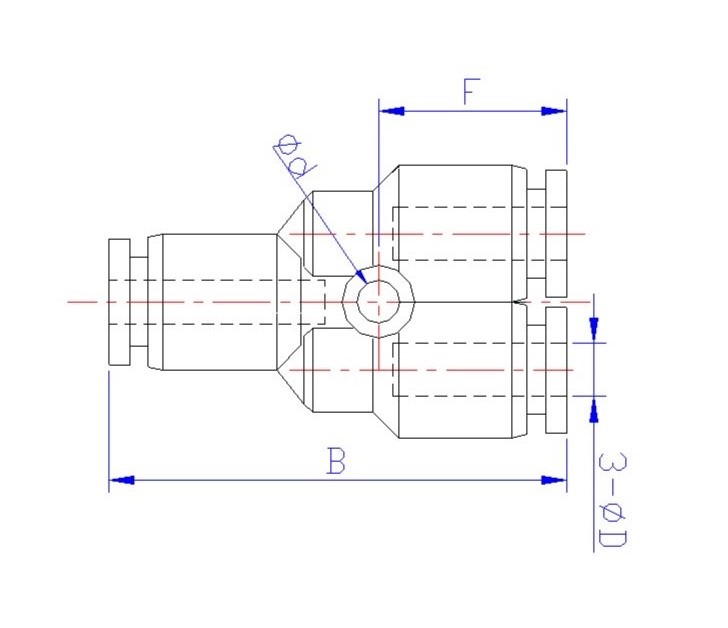

Model YU Dimensions Y Union
Model	ФD	Фd	B	F
YU 5/32	5/32	3.2	35.5	14
YU 3/16	3/16	3.2	36.1	14.3
YU 1/4	1/4	3.2	37.1	14.8
YU 5/16	5/16	3.2	40.4	18.2
YU 3/8	3/8	4.2	47.1	19.5
YU 1/2	1/2	4.2	53.2	21.6
YU 4	4	3.2	35.5	14
YU 6	6	3.2	37.1	14.8
YU 8	8	3.2	40.4	18.2
YU 10	10	4.2	47.1	19.5
YU 12	12	4.2	53.2	21.6
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
