Model UE: Universal Elbow Connector Push In Fittings

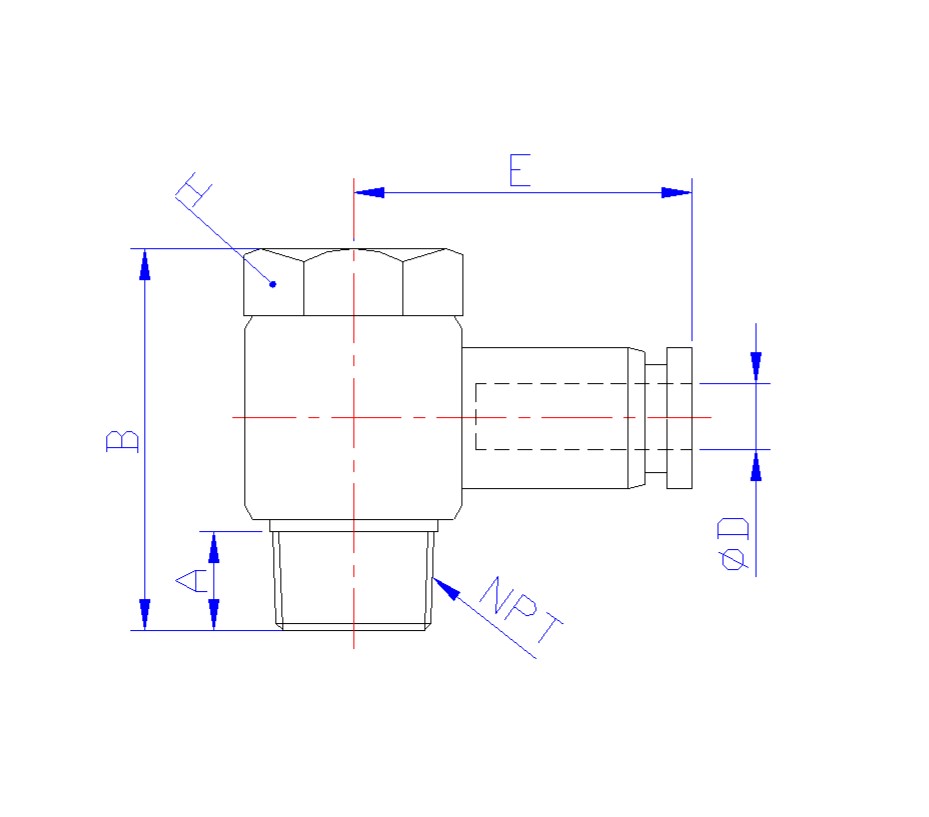

Model UE Dimensions
Universal Elbow Connector

Model ФD Thread Size A B H E
UE 5/32 10-325/3210-32UNF3.817.8820
UE 5/32 N1/85/32NPT1/87.523.511.122.3
UE 3/16 10-323/1610-32UNF3.817.8820.3
UE 3/16 N1/83/16NPT1/87.523.511.122.6
UE 3/16 N1/43/16NPT1/410.527.314.324.3
UE 1/4 N1/81/4NPT1/87.523.511.123.1
UE 1/4 N1/41/4NPT1/410.527.314.325.1
UE 5/16 N1/85/16NPT1/87.523.511.125.6
UE 5/16 N1/45/16NPT1/410.527.314.328.6
UE 5/16 N3/85/16NPT3/81132.41929.6
UE 3/8 N1/43/8NPT1/410.527.314.331
UE 3/8 N3/83/8NPT3/81132.41931.6
UE 1/2 N3/81/2NPT3/81132.41935.6
UE 1/2 N1/21/2NPT1/21439.125.436.6
UE 4 M54M5418820
UE 4 M64M64.518.5
UE 4 R1/84R1/87231022.3
UE 4 R1/44R1/49.526.31424.05
UE 6 M56M5418821.9
UE 6 M66M64.518.5
UE 6 R1/86R1/87231023.1
UE 6 R1/46R1/49.526.31425.1
UE 6 R3/86R3/810.531.91926.8
UE 8 R1/88R1/87231025.6
UE 8 R1/48R1/49.526.31428.6
UE 8 R3/88R3/810.531.91929.6
UE 8 R1/28R1/213.538.62432.6
UE 10 R1/410R1/49.526.31431
UE 10 R3/810R3/810.531.91931.6
UE 10 R1/210R1/213.538.62434.6
UE 12 R1/412R1/49.526.31433.5
UE 12 R3/812R3/810.531.91935.6
UE 12 R1/212R1/213.538.62436.6
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
