Model SU: Straight Union Push In Fitting

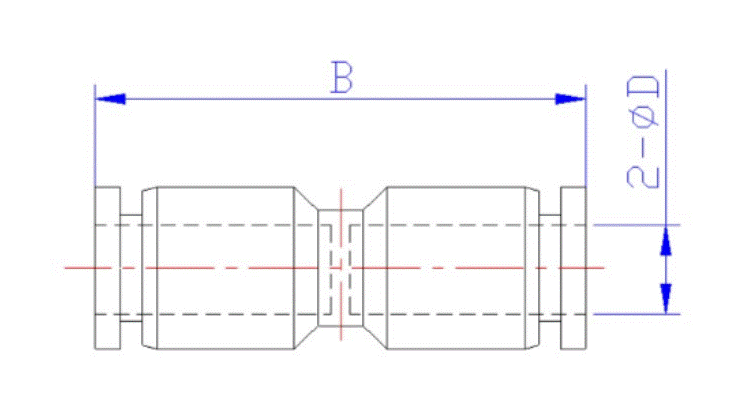

Model SU Dimensions
Straight Union
Model ФD B
SU 5/325/3233
SU 3/163/1633.6
SU 1/41/435.2
SU 5/165/1639.1
SU 3/83/845.2
SU 1/21/249.2
SU 4433
SU 6635.2
SU 8839.1
SU 101045.2
SU 121249.2
SU 141448.4
SU 161651
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
