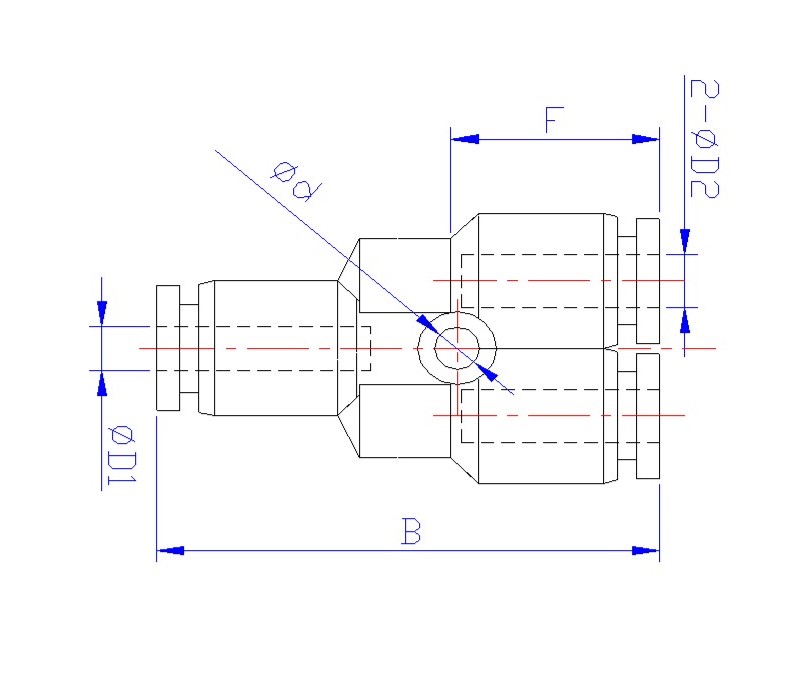

Model RB Dimensions Reduced Branch
Model	ФD1	ФD2	Фd	B	F
RB 3/16-5/32	3/16	5/32	3.2	35.8	14
RB 1/4-5/32	1/4	5/32	3.2	36.8	14.5
RB 1/4-3/16	1/4	3/16	3.2	37.1	14.8
RB 5/16-1/4	5/16	1/4	3.2	39.9	17.7
RB 3/8-5/16	3/8	5/16	4.2	47.9	20.3
RB 1/2-3/8	1/2	3/8	4.2	51.6	20
RB 6-4	6	4	3.2	36.8	14.5
RB 8-6	8	6	3.2	39.9	17.7
RB 10-8	10	8	4.2	47.9	20.3
RB 12-10	12	10	4.2	51.6	20
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
