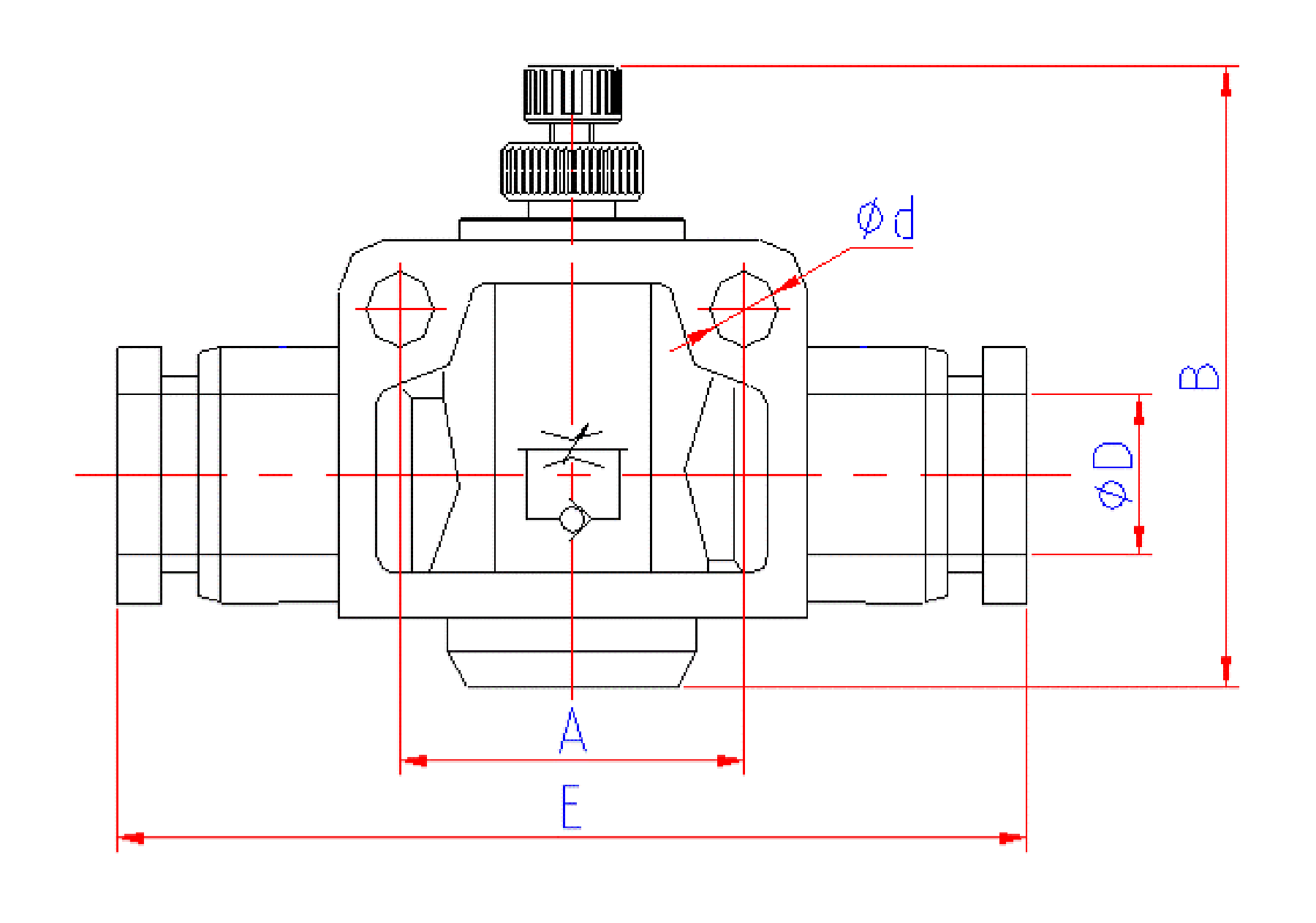

Model FV Dimensions
|
|||||
Model | ФD | Фd | A | B | E |
FV 5/32 | 5/32 | 3.2 | 14 | 28.8 | 39.5 |
FV 3/16 | 3/16 | 3.2 | 14 | 28.8 | 40.1 |
FV 1/4 | 1/4 | 4.3 | 20 | 42.6 | 47.6 |
FV 5/16 | 5/16 | 4.3 | 22 | 44.3 | 52.6 |
FV 3/8 | 3/8 | 4.3 | 26 | 53.4 | 60.5 |
FV 1/2 | 1/2 | 4.3 | 32 | 55.6 | 74.2 |
FV 04 | 4 | 3.2 | 14 | 28.8 | 39.5 |
FV 06 | 6 | 4.3 | 20 | 42.6 | 47.6 |
FV 08 | 8 | 4.3 | 22 | 44.3 | 52.6 |
FV 10 | 10 | 4.3 | 26 | 53.4 | 60.5 |
FV 12 | 12 | 4.3 | 32 | 55.6 | 74.2 |
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O. |
