Model FC: Female Connector Push In Fittings

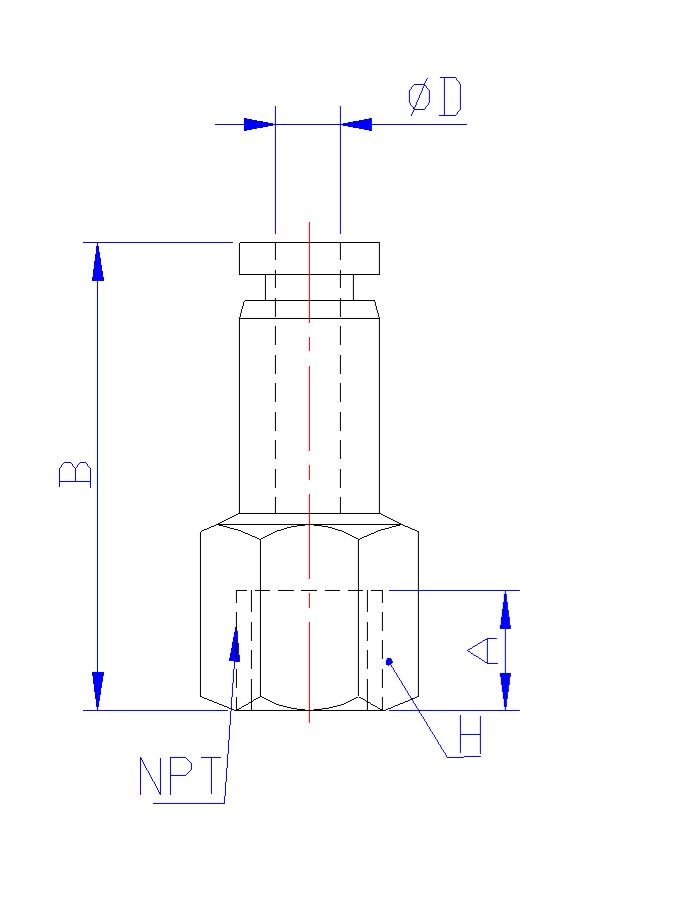

Model FC Dimensions
Female Connector
Model ФD Thread Size A B H
FC 5/32 N1/85/32NPT1/87.523.814.3
FC 5/32 N1/45/32NPT1/410.526.817.4
FC 3/16 N1/83/16NPT1/87.524.414.3
FC 3/16 N1/43/16NPT1/410.527.417.4
FC 1/4 N1/81/4NPT1/87.524.914.3
FC 1/4 N1/41/4NPT1/410.527.917.4
FC 5/16 N1/85/16NPT1/87.526.414.3
FC 5/16 N1/45/16NPT1/410.529.417.4
FC 5/16 N3/85/16NPT3/81129.922.2
FC 3/8 N1/43/8NPT1/410.531.217.4
FC 3/8 N3/83/8NPT3/81131.722.2
FC 1/2 N1/41/2NPT1/410.534.422.2
FC 1/2 N3/81/2NPT3/81134.922.2
FC 4 G1/84G1/8722.314
FC 4 G1/44G1/4925.317
FC 6 G1/86G1/8724.414
FC 6 G1/46G1/4926.417
FC 6 G3/86G3/81027.419
FC 8 G1/88G1/8725.914
FC 8 G1/48G1/4927.917
FC 8 G3/88G3/81028.919
FC 8 G1/28G1/21230.924
FC 10 G1/810G1/8727.717
FC 10 G1/410G1/4929.717
FC 10 G3/810G3/81030.719
FC 10 G1/210G1/21232.724
FC 12 G1/412G1/4932.920
FC 12 G3/812G3/81033.920
FC 12 G1/212G1/21235.924
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
