Model BC: Bulkhead Connector Push In Fittings

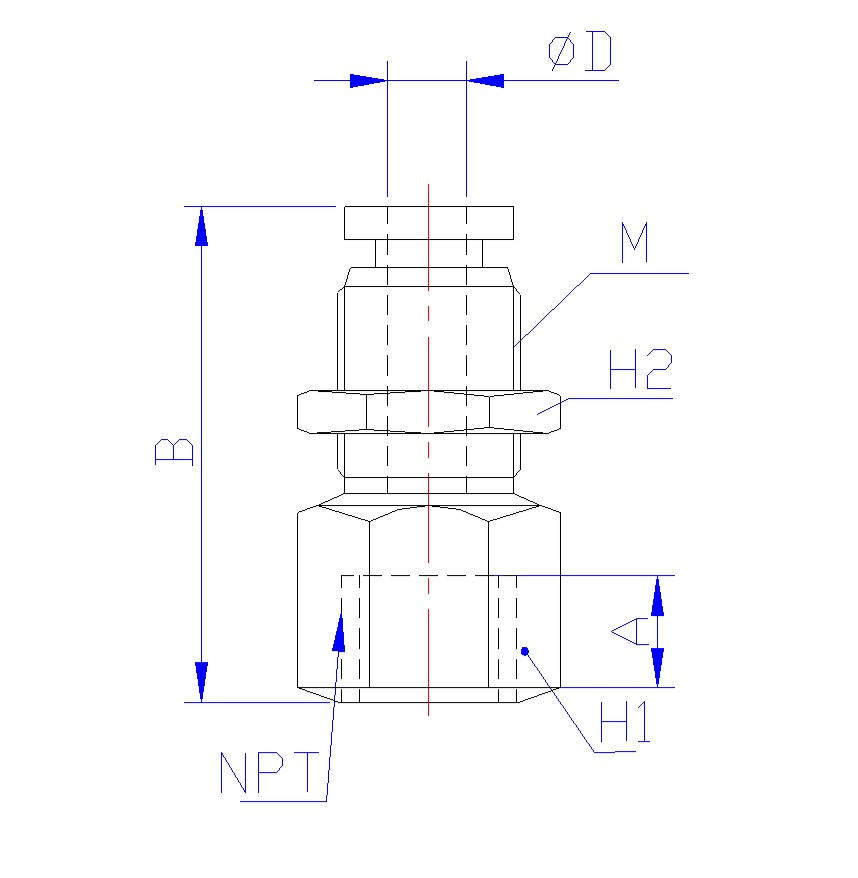

Model BC Dimensions Bulkhead Connector
Model	ФD	Thread Size	M	A	H1	H2	B
BC 1/8 N1/8	1/8	NPT1/8	M12	7.5	14.3	14.3	23.8
BC 5/32 N1/8	5/32	NPT1/8	M12	7.5	14.3	14.3	23.8
BC 3/16 N1/8	3/16	NPT1/8	M14	7.5	14.3	17.4	24.7
BC 3/16 N1/4	3/16	NPT1/4	M14	10.5	14.3	17.4	30.4
BC 1/4 N1/8	1/4	NPT1/8	M14	7.5	17.4	17.4	24.7
BC 1/4 N1/4	1/4	NPT1/4	M14	10.5	17.4	17.4	30.4
BC 5/16 N1/8	5/16	NPT1/8	M16	7.5	17.4	19	27.9
BC 5/16 N1/4	5/16	NPT1/4	M16	10.5	19	19	35.9
BC 5/16 N3/8	5/16	NPT3/8	M16	11	19	19	35.4
BC 3/8 N1/4	3/8	NPT1/4	M20	10.5	22.2	22.2	31.9
BC 3/8 N3/8	3/8	NPT3/8	M20	11	22.2	22.2	34.7
BC 1/2 N3/8	1/2	NPT3/8	M22	11	25.4	25.4	35.4
BC 1/2 N1/2	1/2	NPT1/2	M22	14	25.4	25.4	41.4

BC 4 R1/8	4	R1/8	M12	7	14	14	23.3
BC 4 R1/4	4	R1/4	M12	9	17	14	25.4
BC 6 R1/8	6	R1/8	M14	7	17	17	24.2
BC 6 R1/4	6	R1/4	M14	9	17	17	29.2
BC 6 R3/8	6	R3/8	M14	10	19	17	30.2
BC 8 R1/8	8	R1/8	M16	7	19	19	27.4
BC 8 R1/4	8	R1/4	M16	9	19	19	34.4
BC 8 R3/8	8	R3/8	M16	10	19	19	34.4
BC 8 R1/2	8	R1/2	M16	12	24	19	36.4
BC 10 R1/8	10	R1/8	M20	7	21	24	28.4
BC 10 R1/4	10	R1/4	M20	9	21	24	30.4
BC 10 R3/8	10	R3/8	M20	10	21	24	33.7
BC 10 R1/2	10	R1/2	M20	12	24	24	35.7
BC 12 R1/4	12	R1/4	M22	9	24	27	33.5
BC 12 R3/8	12	R3/8	M22	10	24	27	34.4
BC 12 R1/2	12	R1/2	M22	12	24	27	39.4
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.
