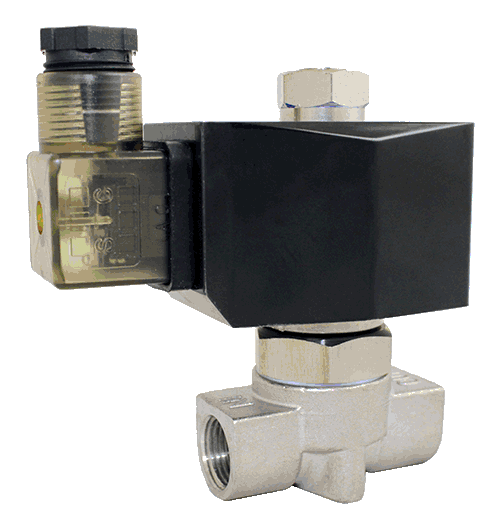

Normally Open Solenoid Valve Specifications & Dimensions: 2SO030-040 Series
Specifications |
|
Valve Model |
2SO030-1/4 |
2SO040-3/8 |
Valve Type |
2 Way Normally Open (NO) |
Action |
Direct Acting |
Cv (Orifice) |
0.3(3mm) |
0.6 (4mm) |
Operating Pressure |
Vacuum to 60PSI (Option: Vacuum to 100PSI) |
Port Size (NPT) |
1/4" |
3/8" |
Body Material |
Stainless Steel |
Seal Material |
NBR (Option: Viton) |
Coil Protection Insulation Class |
H Class IP65 |
Coil Duty |
100% ED |
Coil Power |
28W |
Electrical Connection |
DIN |
Voltage / Tolerances |
12VDC, 24VDC, 24VAC, 110VAC, 220-230VAC (50-60Hz)
Tolerances: +10%-5% for DC, +10%-15% for AC |
Service |
Air, Liquid, Oil, Water, Vacuum |
2SO030-040 Series: 2/2 Direct Acting Normally Open Valve
The 2SO030-040 series normally open solenoid valve is direct acting, it

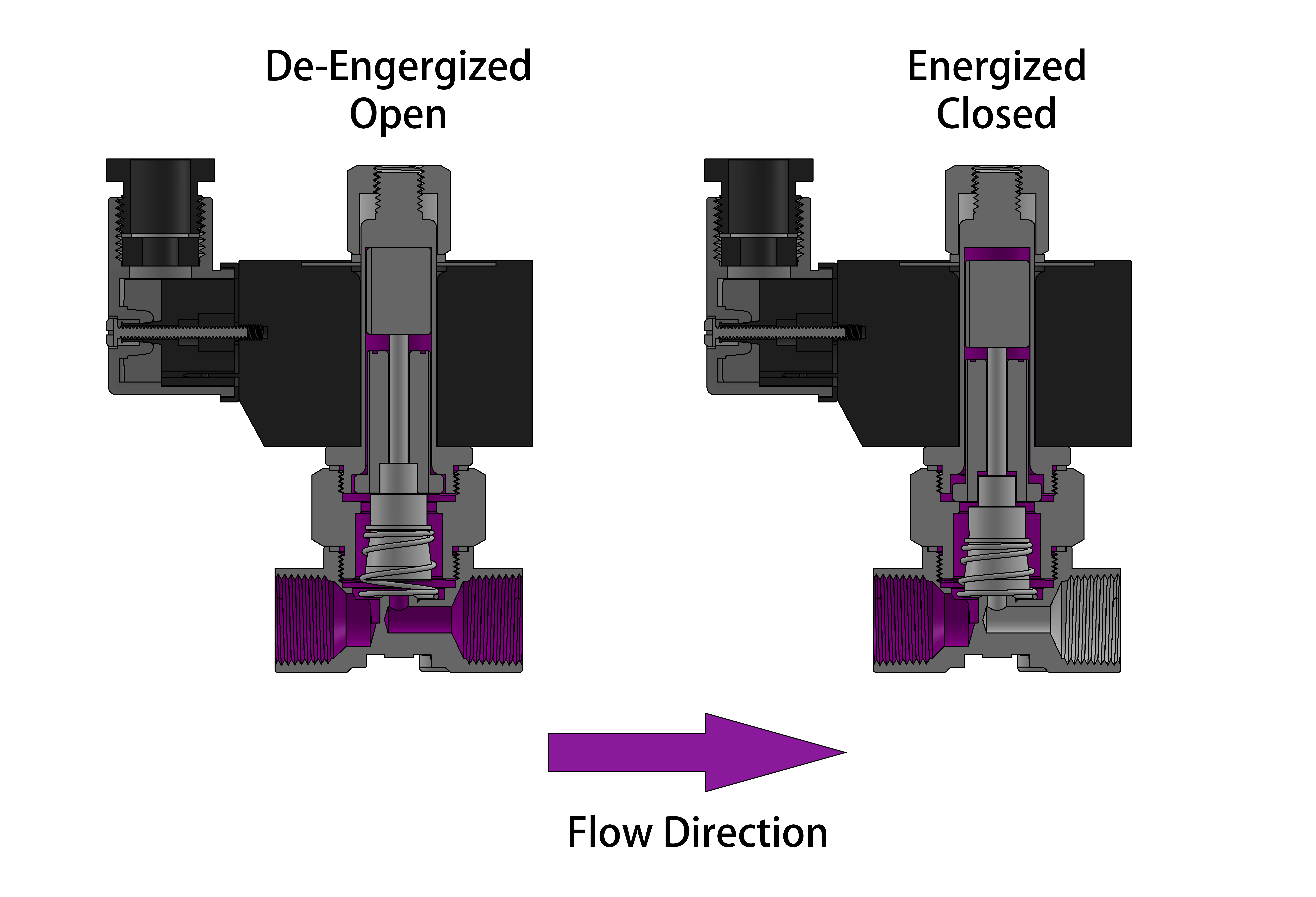

does not require a minimum operating differential pressure. As shown
in the diagram below, when the coil is energized, it pushes the solenoid
plunger downward to close the main valve orifice and closes the valve.
When the coil is de-energized, the spring forces the plunger upward to
open the valve main orifice and opens the valve.
ALL standard valves are supplied with Continuous Duty Coils of the
proper class of insulation for the service indicated on the valve.
It is normal for the coil temperature may become hot after being
energized for extended periods. Smoke or burning odor indicates
excessive coil temperature and the power should be disconnected to
the coil immediately.
SERVICE LIFE: The service life of the solenoid valve depends
on the operating conditions such as pressure, temperature, type of
medium, and the voltage. Normally the STC solenoid valves are reliable
for more than 5 million cycles.
Dimensions |
|

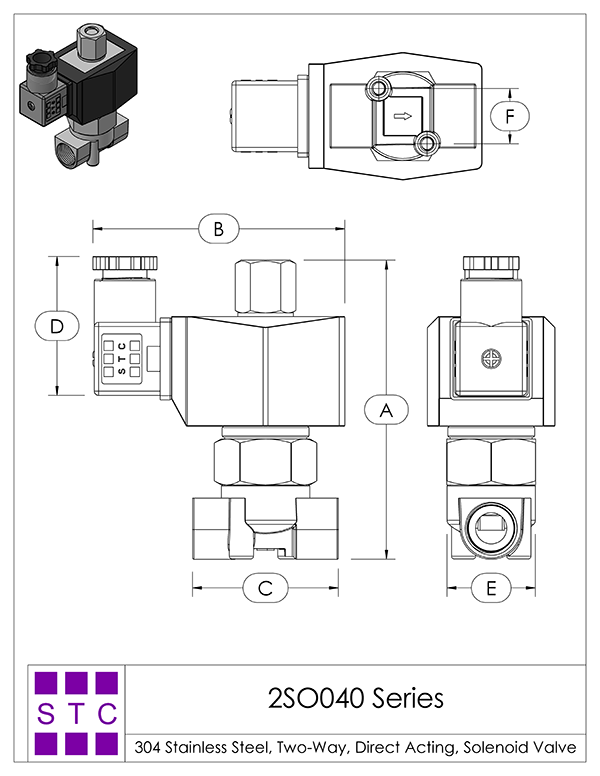

Dimensions for Reference Use Only: Units in mm
|
Electrical Coil Connections
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
