STC Stainless Steel, High Pressure Needle Valves

VNO1 Valve Specifications Needle Valve
End Connections: NPT Threaded, ASME B1.20.1
DIN 2999 & BS21; ISO 228/1 & ISO 7/1

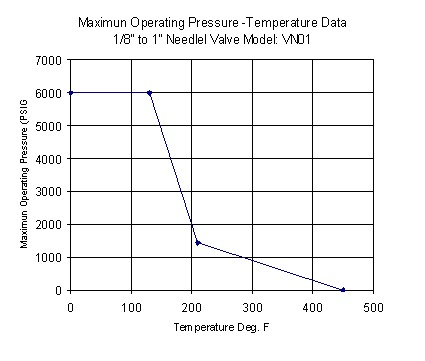

Maximum Operating Pressure: 6000PSIG (413bar) @ 100°F
Operating Temperature Range: -60 to 450°F
Mount: No Panel Mount. (Option: Panel Mount)
Fire Safe Design
Non-rotating, hardened needle design for leak-tight shutoff and long service life

Needle Valve Needle Valve
Valve Dimensions

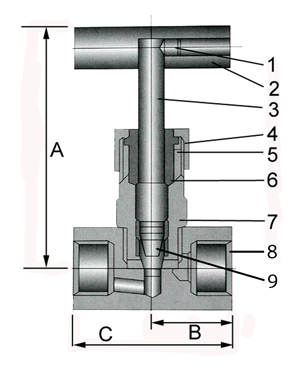

Panel Mounted SS Ball Valve Dimensions No Panel Mount SS Ball Valve Dimensions
Size A (mm) B (mm) C (mm) Cv Orifice (mm) Size L (mm) a (mm) b (mm) H (mm)
1/8"7525500.435
1/4"7525500.4351/4"57282876
3/8"7525500.7463/8"57282876
1/2"8730601.3661/2"62333376
3/4"9032.5652.6473/4"70404084
1" 10340803.681"804545100
Parts & Materials

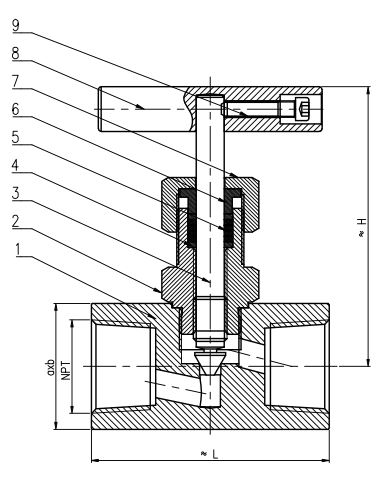

Panel Mount Needle Valve No Panel Mount Needle Valve
No. Part Name Material No. Part Name Material
1 Set Screw 304SS 1 Valve Body SS316
2 Handle 304SS 2 Valve Cover 316SS
3 Stem 316SS 3 Stem 316
4 Gland Nut 304SS 4 Steel Mat 316SS
5 Gland 304SS 5 Filter PTFE
6 Packing Teflon 6 Capping 316SS
7 Bonnet 316SS 7 Nut 316SS
8 Body 316SS 8 Handle 304SS
9 Needle SS316 (Hardened, Non-rotating) 9 Screw Plug 304SS
