Stainless Steel Compression Fittings - Elbow & Tee Compression Fitting Specifications

Specifications		Pressure
Operating Temperature	-425 to 600°F	Tube (OD)		Maximum Pressure (PSI @ 72°F)*
Operating Temperature	-425 to 600°F	1/16"		10,000
Material of Construction	316 Stainless Steel	1/8"	2mm	8,800
Material of Construction	316 Stainless Steel	3/16"	4mm	5,500
Compatible with	Swagelok®, Parker A-Lok, Let-Lock, Yor-Lock	1/4"	6mm	4,200
Service	Air, Water, Steam, Oil, Gasoline, Natural Gas, most solvents and acids that are compatible with 316SS	5/16"	8mm	3,300
Service		3/8"	10mm	2,800
		1/2"	12mm	2,500
		5/8"	16mm	2,300
		3/4"	18mm	2,100
		1"	20mm	1,900
		*Maximum pressures are based on Type 304 and 316 annealed stainless steel welded tubing made to ASTM A213, A249, or A269 standards.

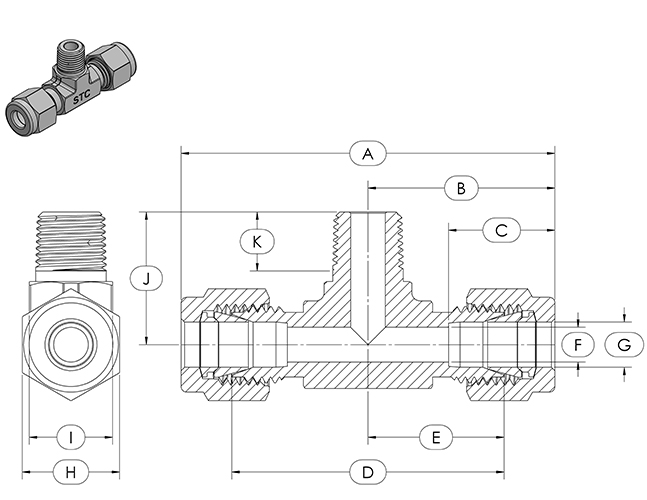

Male Branch Tee - BTC

Tube Size, ФD	Thread Size	Part No.	A	B	C	D	E	F	G	H	I	J	K
1/8"	N1/8	BTC 1/8 N1/8	47.2	23.6	12.7	31.0	17.0	3	3.18	12	12	18.1	10
1/8"	N1/4	BTC 1/8 N1/4	49.2	24.6	12.7	36.0	18.0	3	3.18	12	14	22.2	13
1/4"	N1/8	BTC 1/4 N1/8	54.0	27.0	15.2	39.2	19.6	5	6.35	14	12	19.1	10
1/4"	N1/4	BTC 1/4 N1/4	54.0	27.0	15.2	39.2	19.6	5	6.35	14	14	22.2	13
1/4"	N3/8	BTC 1/4 N3/8	59.6	29.8	15.2	44.8	22.4	5	6.35	14	17	26.0	14
1/4"	N1/2	BTC 1/4 N1/2	63.6	31.8	15.2	48.8	24.4	5	6.35	14	22	31.0	17
3/8"	N1/8	BTC 3/8 N1/8	61.0	30.5	16.8	42.6	21.3	8	9.53	17	17	21.1	10
3/8"	N1/4	BTC 3/8 N1/4	61.0	30.5	16.8	42.6	21.3	8	9.53	17	17	24.2	13
3/8"	N3/8	BTC 3/8 N1/2	62.4	31.2	16.8	46.2	23.1	8	9.53	17	17	26.0	14
3/8"	N1/2	BTC 3/8 N1/2	66.6	33.3	16.8	52.0	26.0	8	9.53	17	22	31.0	17
1/2"	N1/8	BTC 1/2 N1/8	72.0	36.0	22.8	51.8	25.9	10	12.7	22	22	25.7	10
1/2"	N1/4	BTC 1/2 N1/4	72.0	36.0	22.8	51.8	25.9	10	12.7	22	22	27.0	13
1/2"	N3/8	BTC 1/2 N3/8	72.0	36.0	22.8	51.8	25.9	10	12.7	22	22	28.0	14
1/2"	N1/2	BTC 1/2 N1/2	72.0	36.0	22.8	51.8	25.9	10	12.7	22	22	31.0	17
1/2"	N3/4	BTC 1/2 N3/4	79.6	39.8	22.8	59.2	29.7	10	12.7	22	27	36.8	19
1/2"	N1	BTC 1/2 N1	90.6	45.3	22.8	70.4	35.2	10	12.7	22	35	45.2	22
5/8"	N3/8	BTC 5/8 N3/8	76.2	38.1	24.4	55.8	27.9	12	15.9	27	24	30.0	14
5/8"	N1/2	BTC 5/8 N1/2	76.2	38.1	24.4	55.8	27.9	12	15.9	27	24	33.1	17
5/8"	N3/4	BTC 5/8 N3/4	80.0	40.0	24.4	59.4	29.7	12	15.9	27	27	36.8	19
3/4"	N3/4	BTC 3/4 N3/4	81.0	40.5	24.4	59.4	29.7	15	19.1	30	27	36.8	19
1"	N3/4	BTC 1 N3/4	98.0	49.0	31.3	73.6	36.8	21	25.4	38	35	41.7	19
1"	N1	BTC 1 N1	98.0	49.0	31.3	73.6	36.8	21	25.4	38	35	44.5	22

4mm	R1/8	BTC 4 R1/8	50.8	25.4	13.7	37.6	18.8	3	4	12	12	19.1	10
4mm	R1/4	BTC 4 R1/4	50.8	25.4	13.7	37.6	18.8	3	4	12	14	22.2	13
6mm	R1/8	BTC 6 R1/8	54.0	27.0	15.3	39.2	19.6	5	6	14	12	19.1	10
6mm	R1/4	BTC 6 R1/4	54.0	27.0	15.3	39.2	19.6	5	6	14	14	22.2	13
6mm	R3/8	BTC 6 R3/8	59.6	29.8	15.3	44.8	22.4	5	6	14	17	26.0	14
6mm	R1/2	BTC 6 R1/2	63.6	31.8	15.3	48.8	24.4	5	6	14	22	31.0	17
8mm	R1/8	BTC 8 R1/8	57.6	28.8	16.2	42.6	21.3	6	8	17	14	20.1	10
8mm	R1/4	BTC 8 R1/4	57.6	28.8	16.2	42.6	21.3	6	8	17	14	23.2	13
8mm	R3/8	BTC 8 R3/8	61.2	30.6	16.2	46.2	21.3	6	8	17	17	26.0	14
8mm	R1/2	BTC 8 R1/2	65.2	32.6	16.2	50.2	23.1	6	8	17	22	31.0	17
10mm	R1/8	BTC 10 R1/8	63.0	31.5	17.2	47.8	25.1	8	10	19	17	21.9	10
10mm	R1/4	BTC 10 R1/4	63.0	31.5	17.2	47.8	23.9	8	10	19	17	25.0	13
10mm	R3/8	BTC 10 R3/8	63.0	31.5	17.2	47.8	23.9	8	10	19	17	26.0	14
10mm	R1/2	BTC 10 R1/2	67.0	33.5	17.2	51.8	25.9	8	10	19	22	31.0	17
12mm	R1/8	BTC 12 R1/8	72.0	36.0	22.8	51.8	25.9	10	12	22	22	25.7	10
12mm	R1/4	BTC 12 R1/4	72.0	36.0	22.8	51.8	25.9	10	12	22	22	27.0	13
12mm	R3/8	BTC 12 R3/8	72.0	36.0	22.8	51.8	25.9	10	12	22	22	26.0	14
12mm	R1/2	BTC 12 R1/2	72.0	36.0	22.8	51.8	25.9	10	12	22	22	31.0	17
12mm	R3/4	BTC 12 R3/4	79.6	39.8	22.8	59.4	29.7	10	12	22	27	36.8	19
12mm	R1	BTC 12 R1	90.6	45.3	22.8	70.0	35.2	10	12	22	35	45.2	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Male Elbow - MEC

Tube Size, ФD	Thread Size	Part No.	A	B	C	D	E	F	G	H	I
1/16"	N1/8	MEC 1/16 N1/8	19.1	15.2	8.6	1	1.59	10	10	18.1	10
1/16"	N1/4	MEC 1/16 N1/4	21.8	18.0	8.6	1	1.59	10	14	21.6	13
1/8"	N1/8	MEC 1/8 N1/8	23.6	17.0	12.7	3	3.18	10	12	18.1	10
1/8"	N1/4	MEC 1/8 N1/4	24.6	18.0	12.7	3	3.18	10	14	22.2	13
1/8"	N3/8	MEC 1/8 N3/8	28.4	21.8	12.7	3	3.18	10	17	26.8	14
1/8"	N1/2	MEC 1/8 N1/2	31.3	24.7	12.7	3	3.18	10	22	32.7	17
3/16"	N1/8	MEC 3/16 N1/8	25.4	18.8	13.7	3	4.76	12	12	19.1	10
3/16"	N1/4	MEC 3/16 N1/4	25.4	18.6	13.7	3	4.76	12	14	22.2	13
1/4"	N1/8	MEC 1/4 N1/8	27.0	19.6	15.3	5	6.35	14	12	19.1	10
1/4"	N1/4	MEC 1/4 N1/4	27.0	19.6	15.3	5	6.35	14	14	22.2	13
1/4"	N3/8	MEC 1/4 N3/8	29.7	22.4	15.3	5	6.35	14	17	26.0	14
1/4"	N1/2	MEC 1/4 N1/2	31.8	24.4	15.3	5	6.35	14	22	31.0	17
3/8"	N1/8	MEC 3/8 N1/8	30.5	21.3	16.8	6	9.53	17	17	21.1	10
3/8"	N1/4	MEC 3/8 N1/4	30.5	21.3	16.8	8	9.53	17	17	24.2	13
3/8"	N3/8	MEC 3/8 N3/8	31.5	23.1	16.8	8	9.53	17	17	26.0	14
3/8"	N1/2	MEC 3/8 N1/2	33.3	26.0	16.8	8	9.53	17	22	31.0	17
1/2"	N1/8	MEC 1/2 N1/8	36.1	26.0	22.8	10	12.7	22	22	25.7	10
1/2"	N1/4	MEC 1/2 N1/4	36.1	26.0	22.8	10	12.7	22	22	27.0	13
1/2"	N3/8	MEC 1/2 N3/8	36.1	26.0	22.8	10	12.7	22	22	29.0	14
1/2"	N1/2	MEC 1/2 N1/2	36.1	26.0	22.8	10	12.7	22	22	31.0	17
1/2"	N3/4	MEC 1/2 N3/4	40.0	29.7	22.8	10	12.7	22	22	36.8	19
1/2"	N1	MEC 1/2 N1	45.3	35.2	22.8	10	12.7	22	22	45.2	22
5/8"	N3/8	MEC 5/8 N3/8	38.1	27.9	24.4	12	15.9	27	24	30.0	14
5/8"	N1/2	MEC 5/8 N1/2	38.1	27.9	24.4	12	15.9	27	24	33.1	17
5/8"	N3/4	MEC 5/8 N3/4	40.0	29.7	24.4	12	15.9	27	27	36.8	19
3/4"	N1/2	MEC 3/4 N1/2	40.0	29.7	24.4	15	19.1	30	27	34.8	17
3/4"	N3/4	MEC 3/4 N3/4	40.5	29.7	24.4	15	19.1	30	27	36.8	19
1"	N3/4	MEC 1 N3/4	49.0	36.8	31.3	21	25.4	38	34	41.7	19
1"	N1	MEC 1 N1	49.0	36.8	31.3	21	25.4	38	34	44.5	22

4mm	R1/8	MEC 4 R1/8	25.4	18.8	13.7	3	4	12	12	19.1	10
4mm	R1/4	MEC 4 R1/4	26.6	20.0	13.7	3	4	12	14	22.2	13
4mm	R3/8	MEC 4 R3/8	28.4	21.8	13.7	3	4	12	17	26.0	14
4mm	R1/2	MEC 4 R1/2	31.3	24.7	13.7	3	4	12	22	31.0	17
6mm	R1/8	MEC 6 R1/8	27.0	19.6	15.3	5	6	14	12	19.1	10
6mm	R1/4	MEC 6 R1/4	27.0	19.6	15.3	5	6	14	14	22.2	13
6mm	R3/8	MEC 6 R3/8	29.8	22.4	15.3	5	6	14	17	26.0	14
6mm	R1/2	MEC 6 R1/2	31.8	24.4	15.3	5	6	14	22	31.0	17
8mm	R1/8	MEC 8 R1/8	28.8	21.3	16.2	6	8	17	14	20.1	10
8mm	R1/4	MEC 8 R1/4	28.8	21.3	16.2	6	8	17	14	23.2	13
8mm	R3/8	MEC 8 R3/8	30.6	23.1	16.2	6	8	17	17	26.0	14
8mm	R1/2	MEC 8 R1/2	32.6	25.1	16.2	6	8	17	22	31.0	17
10mm	R1/8	MEC 10 R1/8	31.5	23.9	17.2	6	10	19	17	21.9	10
10mm	R1/4	MEC 10 R1/4	31.5	23.9	17.2	8	10	19	17	25.0	13
10mm	R3/8	MEC 10 R3/8	31.5	23.9	17.2	8	10	19	17	26.0	14
10mm	R1/2	MEC 10 R1/2	33.5	25.9	17.2	8	10	19	22	31.0	17
12mm	R1/8	MEC 12 R1/8	36.0	25.9	22.8	10	12	22	22	25.7	10
12mm	R1/4	MEC 12 R1/4	36.0	25.9	22.8	10	12	22	22	27.0	13
12mm	R3/8	MEC 12 R3/8	36.0	25.9	22.8	10	12	22	22	28.0	14
12mm	R1/2	MEC 12 R1/2	36.0	25.9	22.8	10	12	22	22	31.0	17
12mm	R3/4	MEC 12 R3/4	39.8	29.7	22.8	10	12	22	27	36.8	19
12mm	R1	MEC 12 R1	45.3	35.2	22.8	10	12	22	34	45.2	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Female Elbow - FEC

Tube Size, ФD	Thread Size	Part No.	A	C	D	E	F	G	H
1/4"	N1/8	FEC 1/4 N1/8	27.0	19.1	15.3	5	14	14	19.6
1/4"	N1/4	FEC 1/4 N1/4	29.7	22.4	15.3	5	17	14	22.4
1/4"	N3/8	FEC 1/4 N3/8	34.6	22.4	15.3	5	22	14	27.2
1/4"	N1/2	FEC 1/4 N1/2	37.7	28.4	15.3	5	27	14	30.3
3/8"	N1/8	FEC 3/8 N1/8	30.5	19.8	16.8	7	17	17	23.1
3/8"	N1/4	FEC 3/8 N1/4	31.2	22.4	16.8	7	17	17	24
3/8"	N3/8	FEC 3/8 N3/8	33.3	22.4	16.8	7	22	17	26
3/8"	N1/2	FEC 3/8 N1/2	36.1	28.4	16.8	7	27	17	28.7
1/2"	N1/8	FEC 1/2 N1/8	36	22.4	22.8	10	22	22	25.9
1/2"	N1/4	FEC 1/2 N1/4	36.1	22.4	22.8	10	22	22	26.0
1/2"	N3/8	FEC 1/2 N3/8	36.1	22.4	22.8	10	22	22	26.0
1/2"	N1/2	FEC 1/2 N1/2	39.0	28.4	22.8	10	27	22	28.7
1/2"	N3/4	FEC 1/2 N3/4	41.8	32.4	22.8	10	32	32	31.7
5/8"	N3/4	FEC 5/8 N3/4	42.8	32.4	24.4	12	32	27	32.7
3/4"	N1/2	FEC 3/4 N1/2	39.9	28.4	24.4	15	27	30	29.7
3/4"	N3/4	FEC 3/4 N3/4	44.7	32.4	24.4	15	32	30	34.5
1"	N3/4	FEC 1 N3/4	49.0	32.4	31.3	21	34	38	36.8

6mm	R1/8	FEC 6 R1/8	27.0	19.1	15.3	5	14	14	19.6
6mm	R1/4	FEC 6 R1/4	29.8	22.4	15.3	5	17	14	22.4
6mm	R3/8	FEC 6 R3/8	34.6	22.4	15.3	5	22	14	27.2
6mm	R1/2	FEC 6 R1/2	37.7	26.4	15.3	5	27	14	30.3
8mm	R1/8	FEC 8 R1/8	29.3	20.0	16.2	6	14	17	21.8
8mm	R1/4	FEC 8 R1/4	30.6	22.4	16.2	6	17	17	23.1
8mm	R3/8	FEC 8 R3/8	34	27.7	16.2	6	22	17	26.5
8mm	R1/2	FEC 8 R1/2	36.8	31.7	16.2	6	27	17	29.3
10mm	R1/8	FEC 10 R1/8	31.5	19.0	17.2	8	17	19	23.9
10mm	R1/4	FEC 10 R1/4	33.5	22.4	17.2	8	17	19	25.9
10mm	R3/8	FEC 10 R3/8	37.5	27.7	17.2	8	17	19	29.9
10mm	R1/2	FEC 10 R1/2	40.3	31.7	17.2	8	22	19	32.7
12mm	R1/8	FEC 12 R1/8	36.0	22.4	22.8	10	22	22	25.9
12mm	R1/4	FEC 12 R1/4	36.0	22.4	22.8	10	22	22	25.9
12mm	R3/8	FEC 12 R3/8	36.0	22.4	22.8	10	22	22	29.9
12mm	R1/2	FEC 12 R1/2	38.8	28.4	22.8	10	27	22	28.7
12mm	R3/4	FEC 12 R3/4	41.8	32.4	22.8	10	32	22	31.7
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Male Run Tee - RTC

Tube Size, ФD	Thread Size	Part No.	A	B	C	D	E	F	G	H	I	J
1/8"	N1/8	RTC 1/8 N1/8	41.7	23.6	12.7	35.1	17.0	3	3.18	12	12	10
1/8"	N1/4	RTC 1/8 N1/4	47.6	24.6	12.7	40.2	18.0	3	3.18	14	12	13
1/4"	N1/8	RTC 1/4 N1/8	46.1	27.0	15.2	38.7	19.6	5	6.35	12	14	10
1/4"	N1/4	RTC 1/4 N1/4	49.2	27.0	15.2	41.8	19.6	5	6.35	14	14	13
1/4"	N3/8	RTC 1/4 N3/8	55.8	29.8	15.2	48.4	22.4	5	6.35	17	14	14
1/4"	N1/2	RTC 1/4 N1/2	62.8	31.8	15.2	55.4	24.4	5	6.35	22	14	17
3/8"	N1/8	RTC 3/8 N1/8	48.9	30.5	16.8	42.4	21.3	8	9.53	17	17	11
3/8"	N1/4	RTC 3/8 N1/4	52.0	30.5	16.8	45.5	21.3	8	9.53	17	17	13
3/8"	N3/8	RTC 3/8 N3/8	54.8	31.2	16.8	49.1	23.1	8	9.53	17	17	14
3/8"	N1/2	RTC 3/8 N1/2	64.3	33.3	16.8	57.0	26.0	8	9.53	22	17	17
1/2"	N1/8	RTC 1/2 N1/8	61.7	36.0	22.8	51.6	25.9	10	12.7	22	22	11
1/2"	N1/4	RTC 1/2 N1/4	63.0	36.0	22.8	52.9	25.9	10	12.7	22	22	13
1/2"	N3/8	RTC 1/2 N3/8	64.0	36.0	22.8	53.9	25.9	10	12.7	22	22	14
1/2"	N1/2	RTC 1/2 N1/2	67.0	36.0	22.8	56.9	25.9	10	12.7	22	22	17
1/2"	N3/4	RTC 1/2 N3/4	76.6	39.8	22.8	66.5	29.7	10	12.7	17	22	19
1/2"	N1	RTC 1/2 N1	90.5	45.3	22.8	80.4	35.2	10	12.7	34	22	22
5/8"	N3/8	RTC 5/8 N3/8	68.1	38.1	24.4	57.9	27.9	12	15.9	24	27	14
5/8"	N1/2	RTC 5/8 N1/2	71.2	38.1	24.4	61.0	27.9	12	15.9	24	27	17
5/8"	N3/4	RTC 5/8 N3/4	76.8	40.0	24.4	66.5	29.7	12	15.9	27	27	19
3/4"	N1/2	RTC 3/4 N1/2	76.8	40.0	24.4	66.5	29.7	15	19.1	27	30	17
3/4"	N3/4	RTC 3/4 N3/4	76.8	40.0	24.4	66.5	29.7	15	19.1	34	30	19
1"	N3/4	RTC 1 N3/4	90.8	49.1	31.3	78.5	36.8	21	25.4	34	38	19
1"	N1	RTC 1 N1	90.8	49.1	31.3	81.3	36.8	21	25.4	34	38	22

4mm	R1/8	RTC 4 R1/8	44.5	25.4	15.3	37.9	18.8	3	4	12	12	10
4mm	R1/4	RTC 4 R1/4	47.6	25.4	15.3	41.0	18.8	3	4	14	12	13
6mm	R1/8	RTC 6 R1/8	46.1	27.0	15.3	38.7	19.6	5	6	12	14	10
6mm	R1/4	RTC 6 R1/4	49.2	27.0	15.3	41.8	19.6	5	6	14	14	13
6mm	R3/8	RTC 6 R3/8	55.8	29.8	15.3	48.4	22.4	5	6	17	14	14
6mm	R1/2	RTC 6 R1/2	62.8	31.8	15.3	55.4	24.4	5	6	22	14	17
8mm	R1/8	RTC 8 R1/8	48.9	28.8	16.2	41.4	21.3	6	8	14	17	10
8mm	R1/4	RTC 8 R1/4	52.0	28.8	16.2	46.3	21.3	6	8	14	17	13
8mm	R3/8	RTC 8 R3/8	54.8	28.8	16.2	49.1	23.1	6	8	17	17	14
8mm	R1/2	RTC 8 R1/2	61.6	30.6	16.2	56.1	25.1	6	8	22	17	17
10mm	R1/8	RTC 10 R1/8	53.4	31.5	17.2	45.8	23.9	8	10	17	19	10
10mm	R1/4	RTC 10 R1/4	56.5	31.5	17.2	48.9	23.9	8	10	17	19	13
10mm	R3/8	RTC 10 R3/8	57.5	31.5	17.2	49.9	23.9	8	10	17	19	14
10mm	R1/2	RTC 10 R1/2	64.5	33.5	17.2	56.9	25.9	8	10	22	19	17
12mm	R1/8	RTC 12 R1/8	61.7	36.0	22.8	51.6	25.9	10	12	22	22	10
12mm	R1/4	RTC 12 R1/4	63.0	36.0	22.8	52.9	25.9	10	12	22	22	13
12mm	R3/8	RTC 12 R3/8	64.0	36.0	22.8	53.9	25.9	10	12	22	22	14
12mm	R1/2	RTC 12 R1/2	67.0	36.0	22.8	56.9	25.9	10	12	22	22	17
12mm	R3/4	RTC 12 R3/4	76.6	39.8	22.8	66.5	29.7	10	12	27	22	19
12mm	R1	RTC 12 R1	90.5	45.3	22.8	80.4	35.2	10	12	34	22	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Female Run Tee - FRC

Tube Size, ФD	Thread Size	Part No.	A	D	E	F	G	H	J	K
1/4"	N1/8	FRC 1/4 N1/8	27.0	15.2	5	14	14	19.6	38.6	46.0
1/4"	N1/4	FRC 1/4 N1/4	29.8	15.2	5	17	14	22.4	44.7	52.1
1/4"	N3/8	FRC 1/4 N3/8	34.6	15.2	5	22	14	27.2	49.6	57.0
1/4"	N1/2	FRC 1/4 N1/2	37.7	15.2	5	27	14	30.2	58.7	66.1
3/8"	N1/8	FRC 3/8 N1/8	30.5	16.8	7	17	17	23.1	42.9	50.3
3/8"	N1/4	FRC 3/8 N1/4	31.2	16.8	7	17	17	24.0	46.4	53.6
3/8"	N3/8	FRC 3/8 N3/8	33.3	16.8	7	22	17	26.0	48.4	55.7
3/8"	N1/2	FRC 3/8 N1/2	36.1	16.8	7	27	17	28.7	57.1	64.2
1/2"	N1/8	FRC 1/2 N1/8	36.0	22.8	10	22	22	25.9	48.3	58.4
1/2"	N1/4	FRC 1/2 N1/4	36.0	22.8	10	22	22	25.9	48.3	58.4
1/2"	N3/8	FRC 1/2 N3/8	36.0	22.8	10	22	22	26.0	48.3	58.4
1/2"	N1/2	FRC 1/2 N1/2	38.8	22.8	10	22	22	28.7	57.1	67.2
1/2"	N3/4	FRC 1/2 N3/4	41.8	22.8	10	22	22	31.7	64.1	74.2
3/4"	N1	FRC 3/4 N1/2	39.9	24.4	15	27	30	29.7	51.8	68.3
3/4"	N3/4	FRC 3/4 N3/4	44.7	24.4	15	32	30	34.5	66.2	76.4
1"	N3/4	FRC 1 N3/4	50.5	31.3	21	34	38	38.2	75.6	87.9

6mm	R1/8	FRC 6 R1/8	27.0	15.3	5	14	14	19.6	38.6	46.0
6mm	R1/4	FRC 6 R1/4	29.8	15.3	5	17	14	22.4	44.7	52.1
6mm	R3/8	FRC 6 R3/8	34.6	15.3	5	22	14	27.2	58.7	57.0
6mm	R1/2	FRC 6 R1/2	37.7	15.3	5	27	14	30.2	41.4	66.1
8mm	R1/8	FRC 8 R1/8	29.9	16.2	6	14	17	22.4	41.4	48.9
8mm	R1/4	FRC 8 R1/4	30.6	16.2	6	17	17	23.1	45.5	53.0
8mm	R3/8	FRC 8 R3/8	34.0	16.2	6	22	17	26.5	54.2	61.7
8mm	R1/2	FRC 8 R1/2	36.8	16.2	6	27	17	29.3	61.0	68.5
10mm	R1/8	FRC 10 R1/8	31.5	17.2	8	17	19	23.9	42.9	50.5
10mm	R1/4	FRC 10 R1/4	33.5	17.2	8	17	19	25.9	48.3	55.9
10mm	R3/8	FRC 10 R3/8	37.5	17.2	8	17	19	29.9	57.6	65.2
10mm	R1/2	FRC 10 R1/2	40.3	17.2	8	17	19	32.7	64.4	72.0
12mm	R1/8	FRC 12 R1/8	36.0	22.8	10	22	22	25.9	48.3	58.4
12mm	R1/4	FRC 12 R1/4	36.0	22.8	10	22	22	25.9	48.3	58.4
12mm	R3/8	FRC 12 R3/8	36.0	22.8	10	22	22	25.9	48.3	58.4
12mm	R1/2	FRC 12 R1/2	38.8	22.8	10	27	22	28.7	57.1	67.2
12mm	R3/4	FRC 12 R3/4	41.8	22.8	10	32	22	31.7	64.1	74.2
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Elbow Union - EUC

Tube Size, ФD	Part No.	A	B	C	D	E	F	G
1/16"	EUC 1/16	17.8	14.0	8.6	1	1.59	10	10
1/8"	EUC 1/8	22.4	15.8	12.7	3	3.18	12	12
3/16"	EUC 3/16	25.4	18.8	13.7	3	4.76	12	12
1/4"	EUC 1/4	27.0	19.6	15.2	5	6.35	14	12
3/8"	EUC 3/8	30.5	21.3	16.8	8	9.53	17	17
1/2"	EUC 1/2	36.0	23.1	22.8	10	12.7	22	22
5/8"	EUC 5/8	38.1	26.0	24.4	12	15.9	27	24
3/4"	EUC 3/4	40.0	29.7	24.4	15	19.1	30	27
1"	EUC 1	49.0	36.8	26.0	21	25.4	38	34

4mm	EUC 4	25.4	18.8	13.7	3	4	12	12
6mm	EUC 6	27.0	19.6	15.3	5	6	14	12
8mm	EUC 8	28.8	21.3	16.2	6	8	17	14
10mm	EUC 10	31.5	23.9	17.2	8	10	19	17
12mm	EUC 12	36.0	25.9	22.8	10	12	22	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Tee Union - TUC

Tube Size, ФD	Part No.	A	B	C	D	E	F	G	H	I
1/16"	TUC 1/16	35.6	17.8	8.6	28.0	14.0	1	1.59	10	12
1/8"	TUC 1/8	44.8	22.4	12.7	31.4	15.8	2	3.18	10	12
3/16"	TUC 3/16	50.8	25.4	13.7	39.1	19.6	3	4.76	12	12
1/4"	TUC 1/4	54.0	27.0	15.2	44.8	22.4	5	6.35	14	12
3/8"	TUC 3/8	61.0	30.5	16.8	46.2	23.1	8	9.53	19	17
1/2"	TUC 1/2	72.0	36.0	22.8	52.0	26.0	10	12.7	22	22
5/8"	TUC 5/8	77.8	38.9	24.4	57.4	28.7	12	15.9	27	24
3/4"	TUC 3/4	80.0	40.0	26.0	59.4	29.7	15	19.1	30	27
1"	TUC 1	98.0	49.0	31.2	73.6	36.8	21	25.4	38	35

4mm	TUC 4	50.8	25.4	13.7	37.6	18.8	3	4	12	12
6mm	TUC 6	53.9	27.0	15.3	39.1	19.6	5	6	14	12
8mm	TUC 8	59.7	29.9	16.2	44.7	22.4	6	8	17	14
10mm	TUC 10	63.0	31.5	17.2	47.8	23.9	8	10	19	17
12mm	TUC 12	72.0	36.0	22.8	51.8	25.9	10	12	22	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Cross Union - CUC

Tube Size, ФD	Part No.	A	B	C	D	E	F	G	H	I
1/8"	CUC 1/8	51.0	25.5	14.0	37	18.5	2	3.18	10	12
1/4"	CUC 1/4	60.4	30.2	15.2	46	23.0	5	6.35	14	14
3/8"	CUC 3/8	63.0	31.5	18.8	48	24.0	8	9.53	19	17
1/2"	CUC 1/2	74.0	37.0	23.6	52	26.0	10	12.7	22	22

6mm	CUC 6	60.4	30.2	15.2	46	14.0	5	6	14	14
8mm	CUC 8	61.0	30.5	16.5	46	17.0	6	8	17	14
10mm	CUC 10	63.0	31.5	19.5	48	19.0	8	10	19	17
12mm	CUC 12	74.0	37.0	23.6	52	22.0	10	12	22	20
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Home	Terms of Use	Terms of Sale	Career	Contact Us	Click Here to Order
Sizto Tech Corporation © 2001-. All rights reserved. Sizto Tech Corporation © 2001-2016. All rights reserved. Last modified: January 28, 2019. Information contained herein may be changed without prior notification.
