STC Solenoid Valve Specifications & Dimensions: 3A Series

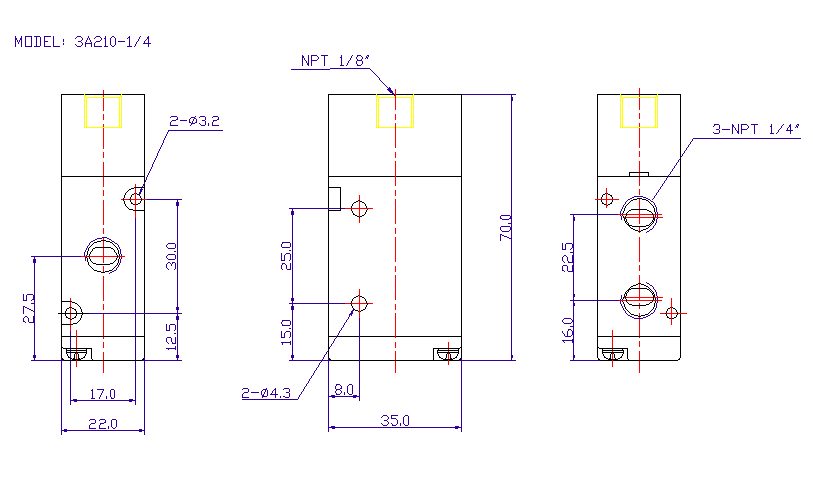

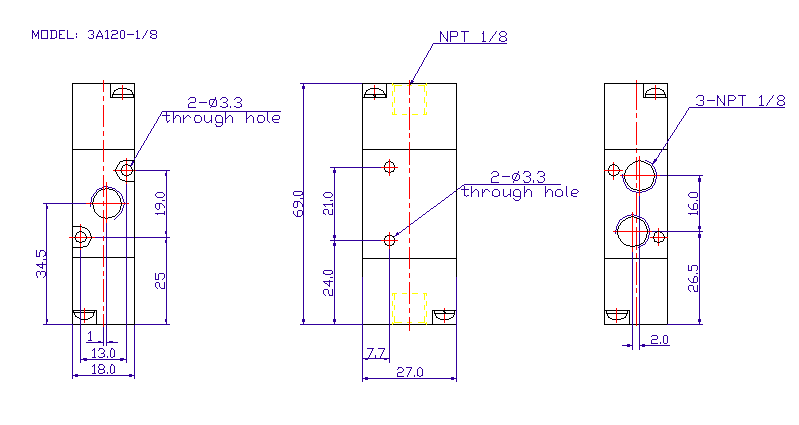

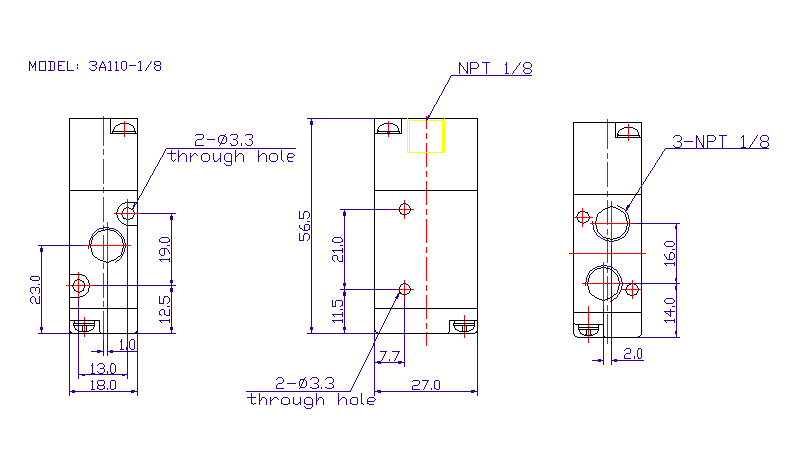

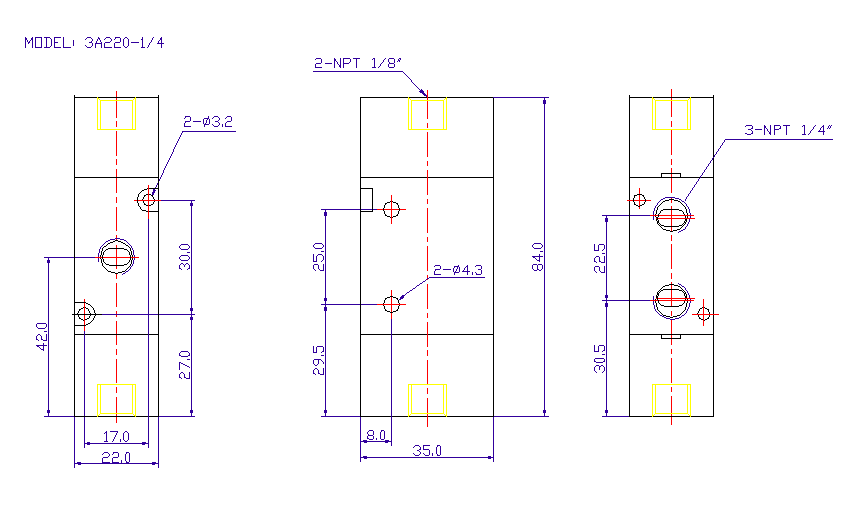

Download CAD Drawings:   3A110-1/8   3A120-1/8   3A210-1/4   3A220-1/4

Specifications
Port & Mounting Body Ported, Stackable (Stacking Hardware Included)
Action & Motion Air Piloted, Two Position, 3 Way
Operating Pressure 28" Hg to 115PSI
Working Medium 40 micron filtered air, inert gas
Maximum Pressure 150PSI
Operating Temperature -5 to 80°C with non-freezing medium
Pilot Pressure -40 to 115PSI
Body Material Anodized Aluminum
Seal Material NBR (Buna N)
Lubrication Not Required
