Hand-Operated Pneumatic Valve with Two Position Handle: TSV86522-M/S

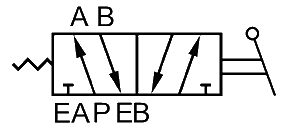

The TSV86522 is a manual pneumatic directional valve with a four-way operation & five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, two-position valves are generally used to fully extend and retract a double acting cylinder, or in applications with similar operation.

TSV86522-M/S
Operation	4-Way, 5-Port, 2-Position Handle / Lever M = Detented S = Non-Detented (Spring Return)	M =
Type	Hand Operated Directional Air Valve	S =

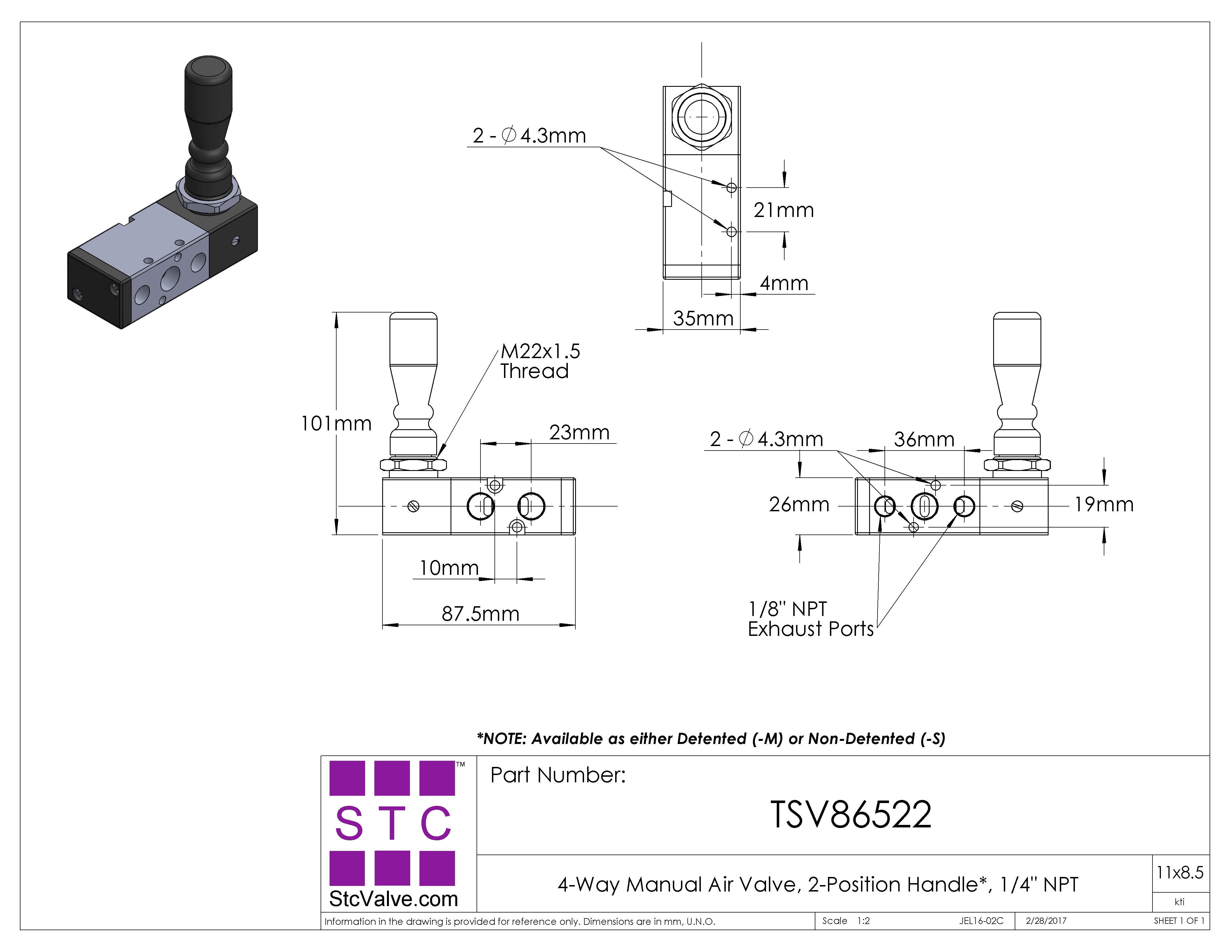

Port Size	1/4" NPT (1/8" NPT Exhaust Ports)		Downloads 3D Drawings 3-D Solidworks 3-D STEP 2D Drawings 2-D DWG 2-D PDF
Operating Pressure	0 to 116 PSI
Operating Temperature	14 to 140°F (-10 to 60°C)
Action	Direct Acting
Flow Coefficient (Cv)	1.0
Working Medium	40 Micron Filtered Air or Inert Gas
Body Material	Anodized Aluminum
Seal Material	NBR (Buna N)
Lubrication	Not Required
