Solenoid Valve Specifications and Dimensions: 2L170-500 Series
||2 Way Normally Closed (NC)
||7 to 232PSI
||23 to 356°F (-5 to 180°C) with PTFE Seal
|Coil Protection Insulation Class
||H Class IP65
||30 to 40W
|Voltages / Tolerances
||12VDC, 24VDC, 24VAC, 110VAC, 220-230VAC (50-60Hz).
Voltage Tolerances: +10%-5% for DC, +10%-15% for AC.
||Air, Gas, Liquid, Vacuum, Steam
2L Series 2/2 Direct Lift Piston Normally Closed Solenoid Valve:
This valve is a two-way, normally closed, internal Pilot Piston
solenoid valve and requires minimum 7PSI differential operating pressure.

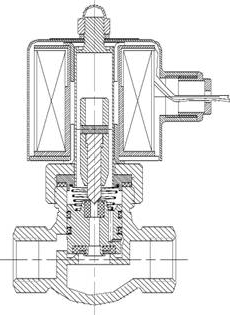

As shown in the diagrams below, when the coil is de-energized (left diagram),
the pilot plunger and pison sit on their respective orifices. The
working medium flows through a tiny "bleed orifice" and pressurizes
the cavity above the piston - this system pressure, along with the spring
force, seals the valve. When the valve is energized, the pilot plunger
allows the working medium to flow through the pilot orifice. This releases
the pressure above the diaphragm and causes the incoming pressure to push
it off of the main orifice, allowing the working medium to flow fully through
the valve. Since the bleed orifice is dimensionally smaller than the main
orifice, the system pressure cannot rebuild on the top of the diaphragm
as long as the main orifice remains open. The working medium and flow
direction are indicated in purple in the diagrams.
ALL standard valves are supplied with Continuous Duty Coils of the
proper class of insulation for the service indicated on the valve.
It is normal for the coil temperature may become hot after being
energized for extended periods. Smoke or burning odor indicates
excessive coil temperature and the power should be disconnected to
the coil immediately.
SERVICE LIFE: The service life of the solenoid valve depends
on the operating conditions such as pressure, temperature, type of
medium, and the voltage.
Electrical Coil Connections
|Model: 2L Series
||Port Center Line
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
