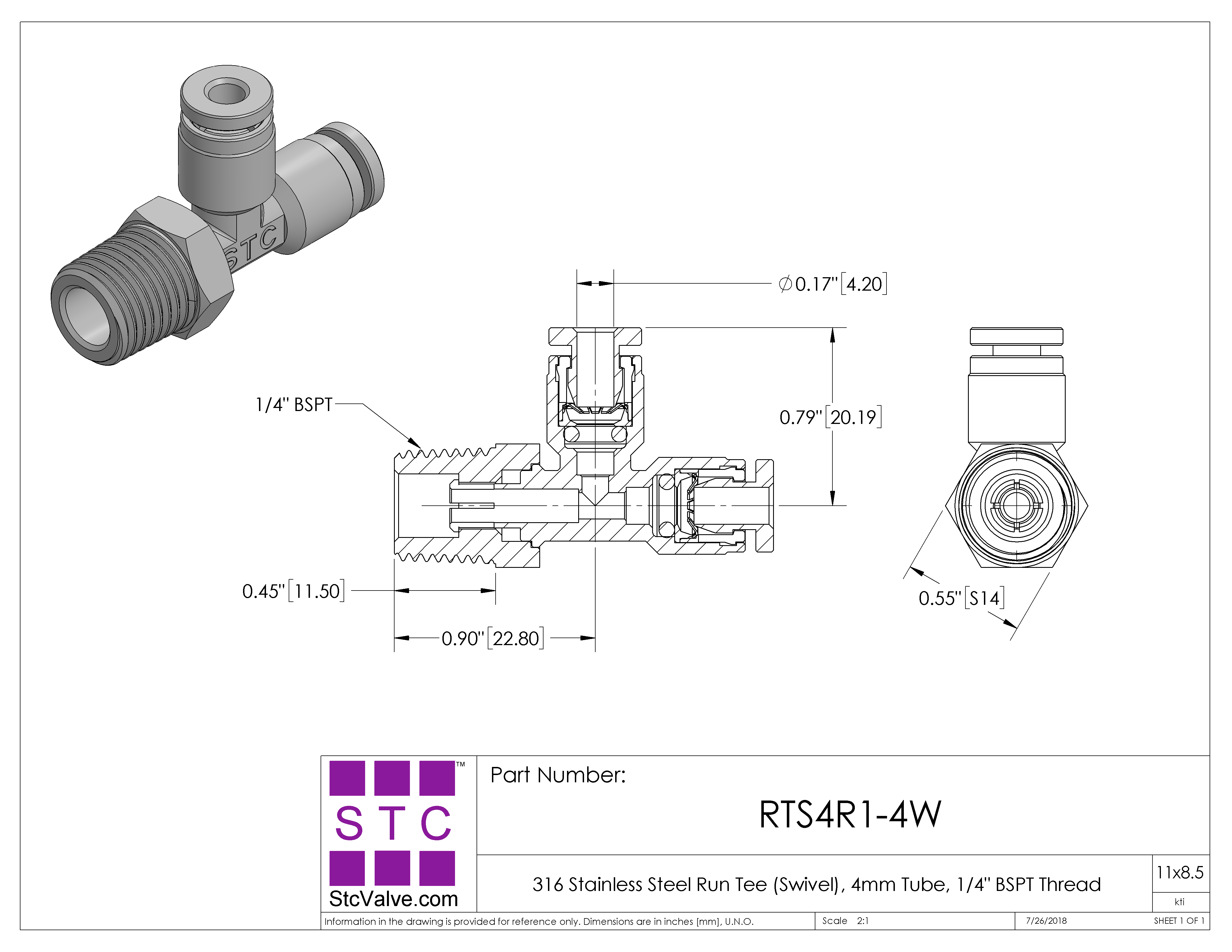

Run Tee (Swivel) Stainless Steel Fitting: RTS 4 R1/4 W

RTS 4 R1/4 W

Shape Run Tee (Swivel)
Body Material T316 Stainless Steel
Release Button Material 300 Series Stainless Steel
Grip Ring or Collet Material 300 Series Stainless Steel
O-Ring Material FKM
For Tube OD 4mm
Pipe Size, Type 1/4" BSPT
Operating Pressure Range 0 - 250PSI (0 - 1650kPa)
Vacuum 0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature 5 - 230°F (-15 to 110°C)
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)
Service Air, Liquid
Sterilization Temperature Up to 280°F (138°C)
RoHS Compliant
