Solenoid Valve Specifications and Dimensions: 2MS120-500 Series
|
Dimensions |
|
|
2MS120-500 & 2MSO120-500 Series Solenoid Valve Dimensions |
Model |
Port |
A |
B |
C |
D |
E |
2MS120-3/8 |
3/8" NPT |
137.8 |
124.3 |
70.0 |
62.9 |
54.3 |
2MS150-1/2 |
1/2" NPT |
137.8 |
124.3 |
70.0 |
62.9 |
54.3 |
2MS200-3/4 |
3/4" NPT |
149.1 |
132.4 |
73.8 |
62.9 |
58.4 |
2MS250-1 |
1" NPT |
158.6 |
138.6 |
92.3 |
62.9 |
69.6 |
2MS320-1 1/4 |
1 1/4" NPT |
177.9 |
150.9 |
116.1 |
62.9 |
84.7 |
2MS400-1 1/2 |
1 1/2" NPT |
182.4 |
153.4 |
122.0 |
62.9 |
90.5 |
2MS500-2 |
2" NPT |
198.9 |
163.9 |
167.9 |
62.9 |
117.6 |
Dimensions for Reference Use Only: Units in mm
|
|

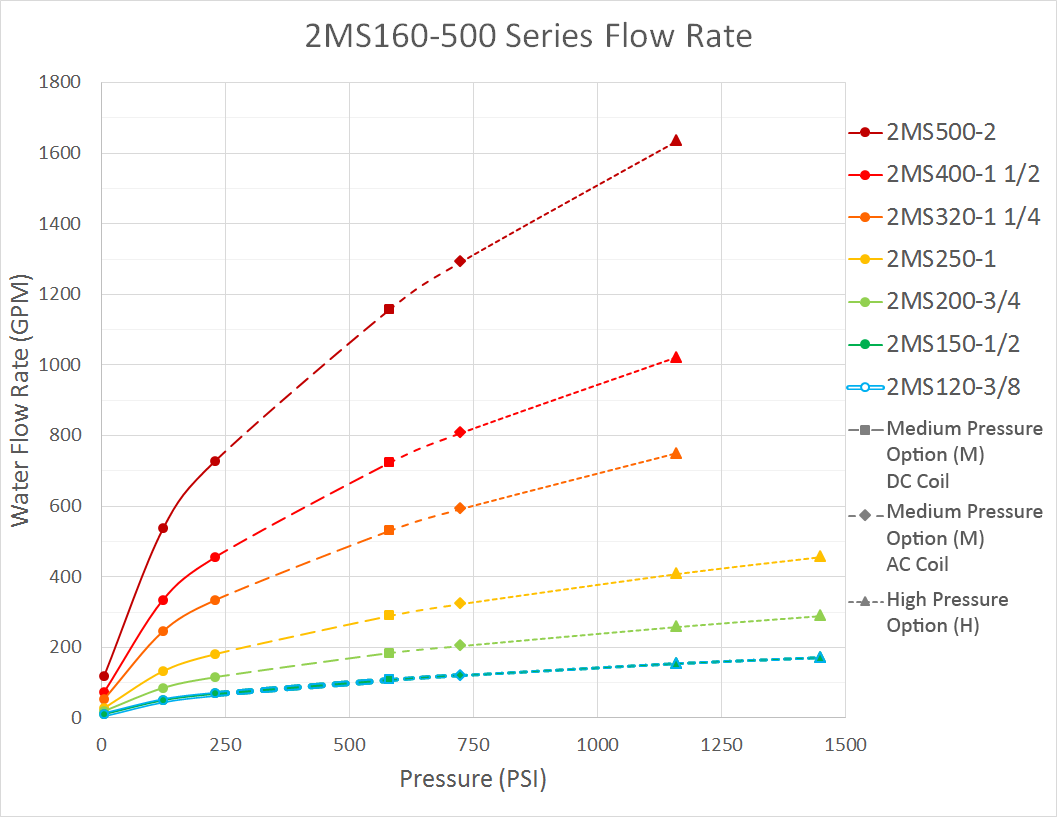

2MS Series: 2/2 Pilot Piston Normally Closed Solenoid Valve
The 2MS Series valves are 2 way, normally closed, internal pilot piston
solenoid valves. When the coil is energized, it lifts the pilot valve
off the top of the piston ring and pressure under the piston ring forces
the piston up to open the main valve orifice. When the coil is de-energized,
the pilot valve returns to close the pilot orifice and pressure across the
piston ring is equalized through a timing orifice in the side of the piston
or in the valve body. The piston spring returns the piston to close the
main valve orifice.
ALL standard valves are supplied with Continuous Duty Coils of the
proper class of insulation for the service indicated on the valve.
It is normal for the coil temperature may become hot after being
energized for extended periods. Smoke or burning odor indicates
excessive coil temperature and the power should be disconnected to
the coil immediately.
SERVICE LIFE: The service life of the solenoid valve depends
on the operating conditions such as pressure, temperature, type of
medium, and the voltage.
Electrical Coil Connections
-
To Connect a DIN Coil:
-
Remove the Philips screw from the plastic housting & unplug from the DIN coil.
-
Use the removed screw to push the terminal block out of the plastic DIN housing.
-
Note the "1", "2", and ground "⏚" symbols.
-
For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
-
For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
-
To Connect a Grommet Coil:
-
For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
-
For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
-
For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
-
GREEN = Ground Wire
-
BLUE = Positive or HOT Wire
-
BROWN = Negative or Neutral Wire
