Model TU: Tee Union Push In Fitting



Model TU Dimensions
Tee Union

Model ФD Фd E
TU 5/325/323.218.5
TU 3/163/163.218.8
TU 1/41/43.219.3
TU 5/165/163.222.75
TU 3/83/84.227
TU 1/21/24.329.6
TU 443.218.5
TU 663.219.3
TU 883.222.75
TU 10104.227
TU 12124.329.6

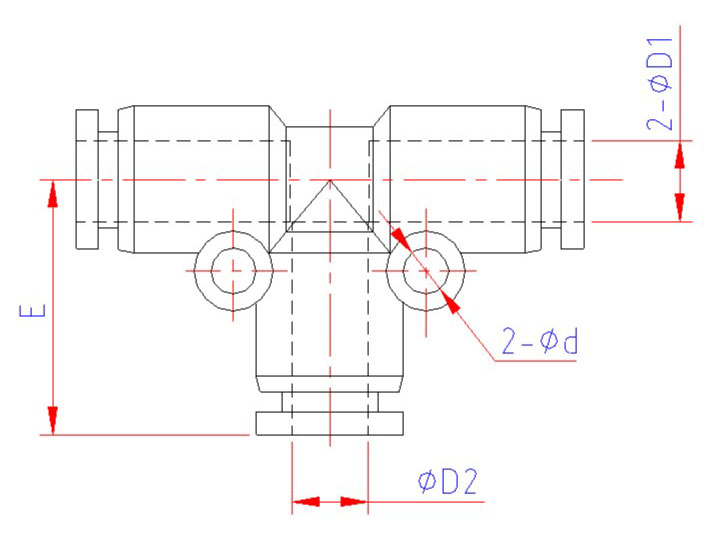

Model ФD1 ФD2 Фd E
TU 1/4-5/32 1/45/32 3.219.0
TU 5/16-1/4 5/161/4 3.222.3
TU 3/8-5/16 3/85/16 3.227.8
TU 1/2-3/8 1/23/8 4.229.3
TU 6-4 64 3.219.5
TU 8-6 86 3.220.3
TU 10-8 108 4.224.8
TU 12-10 1210 4.228.5
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
