Model MM Male Manifold and MU Manifold Union Push In Fittings

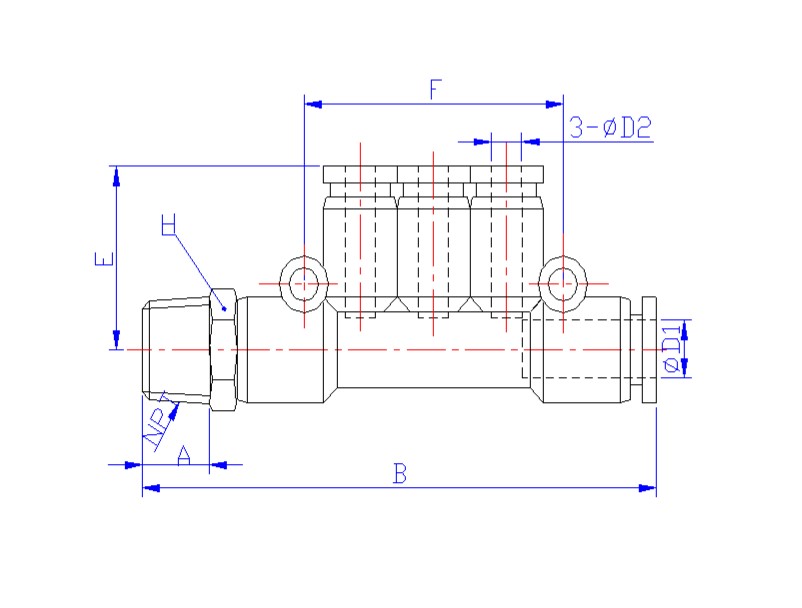

Model MM Dimensions
Male Manifold

Model ФD1 ФD2 Thread Size H E F B A
MM 3/16-5/32-N1/83/165/32NPT1/811.1193664.37.5
MM 1/4-5/32-N1/81/45/32NPT1/812.7193664.37.5
MM 5/16-5/32-N1/45/165/32NPT1/414.3204272.310.5
MM 5/16-3/16-N1/45/163/16NPT1/414.320.34272.310.5
MM 5/16-1/4-N1/45/161/4NPT1/414.320.34272.310.5
MM 3/8-5/16-N3/83/85/16NPT3/817.424.34891.511
MM 6-4-R1/864R1/812193663.87
MM 8-4-R1/484R1/414204271.39.5
MM 8-6-R1/486R1/41420.34271.39.5
MM 10-8-R3/8108R3/81724.3489110.5
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

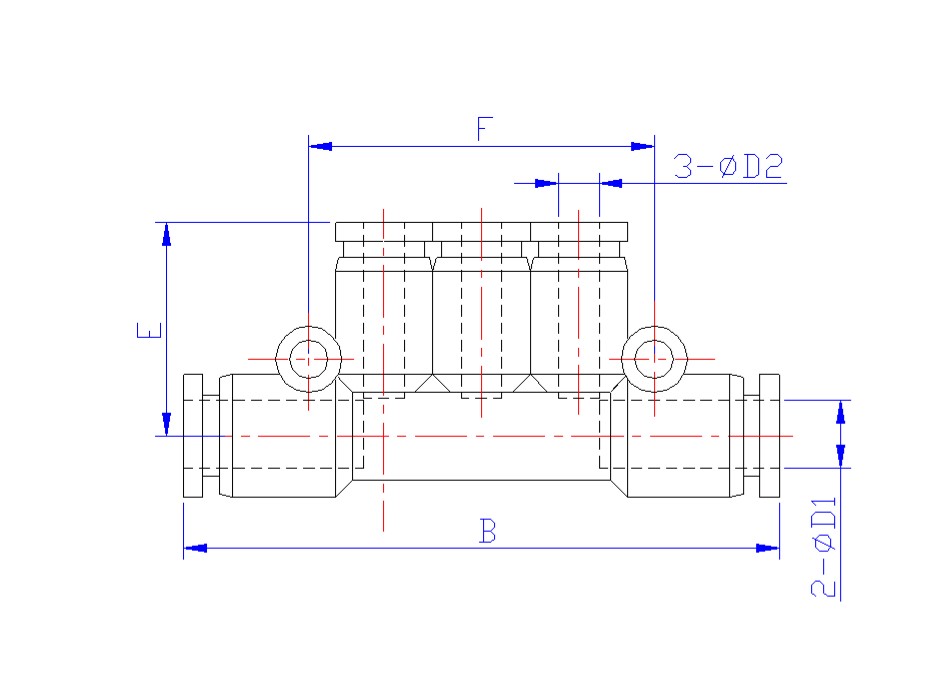

Model MU Dimensions
Manifold Union

Model ФD F E B
MU 5/325/32361957
MU 3/163/163619.357.6
MU 1/41/44220.361.6
MU 5/165/164824.381.6
MU 44361957
MU 664220.361.6
MU 884824.381.6
Model ФD1 ФD2 F E B
MU 3/16-5/32 3/165/32 36.019.057.6
MU 1/4-5/32 1/45/32 36.019.057.6
MU 5/16-5/32 5/165/32 42.020.062.6
MU 5/16-3/16 5/163/16 42.020.362.6
MU 5/16-1/4 5/161/4 42.020.362.6
MU 3/8-1/4 3/81/4 48.023.880.0
MU 3/8-5/16 3/85/16 48.024.380.0
MU 6-4 64 36.019.057.6
MU 8-4 84 42.020.062.6
MU 8-6 86 42.020.362.6
MU 10-6 106 48.023.880.0
MU 10-8 108 48.024.380.0
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
