Model MA: Male Angle Push In Fittings

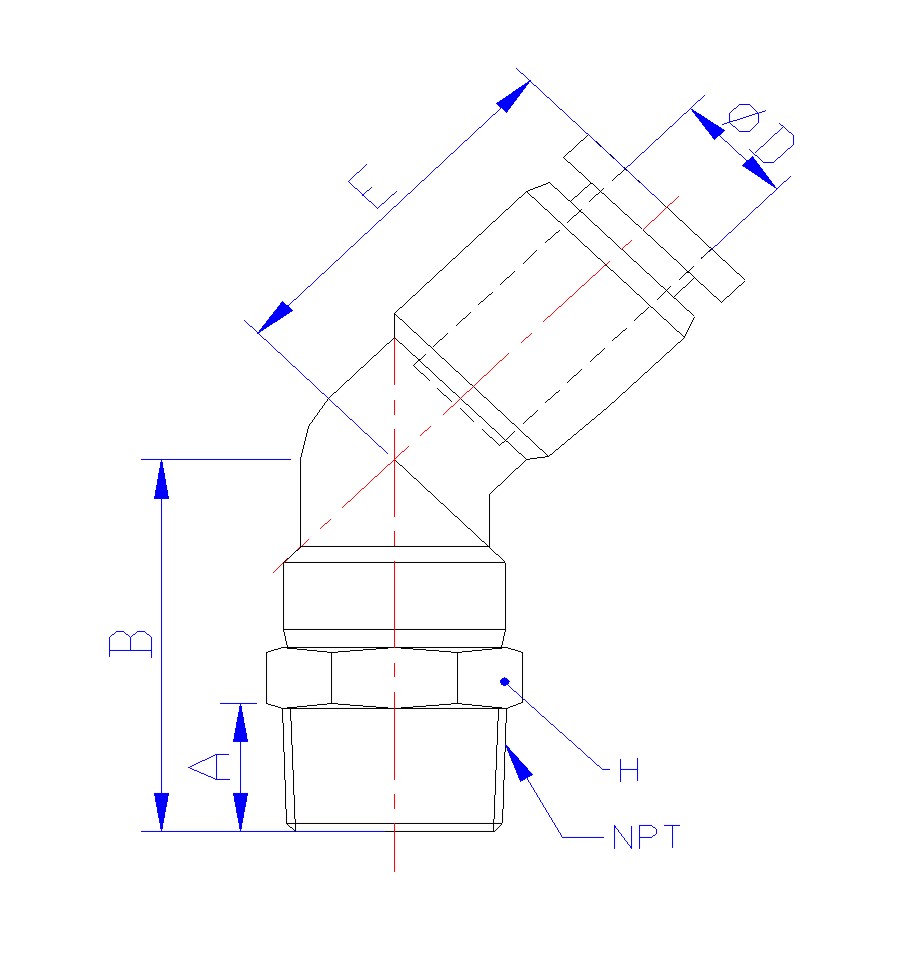

Model MA Dimensions
Male Angle

Model ФD Thread Size A B E H
MA 5/32 10-325/3210-32UNF3.820.716.211.1
MA 5/32 N1/85/32NPT1/87.522.716.211.1
MA 5/32 N1/45/32NPT1/410.526.716.214.3
MA 3/16 10-323/1610-32UNF3.820.716.511.1
MA 3/16 N1/83/16NPT1/87.523.216.511.1
MA 3/16 N1/43/16NPT1/410.526.716.514.3
MA 3/16 N3/83/16NPT3/81127.716.517.4
MA 1/4 10-321/410-32UNF3.823.117.712.7
MA 1/4 N1/81/4NPT1/87.524.417.712.7
MA 1/4 N1/41/4NPT1/410.527.917.714.3
MA 1/4 N3/81/4NPT3/81128.917.717.4
MA 5/16 N1/85/16NPT1/87.527.620.914.3
MA 5/16 N1/45/16NPT1/410.530.620.914.3
MA 5/16 N3/85/16NPT3/81131.620.917.4
MA 3/8 N1/83/8NPT1/87.530.222.217.4
MA 3/8 N1/43/8NPT1/410.533.222.217.4
MA 3/8 N3/83/8NPT3/81133.722.217.4
MA 3/8 N1/23/8NPT1/21437.222.222.2
MA 1/2 N1/41/2NPT1/410.536.226.322.2
MA 1/2 N3/81/2NPT3/81136.726.322.2
MA 1/2 N1/21/2NPT1/21439.726.322.2
MA 4 M54M53.82016.210
MA 4 M64M64.520.716.210
MA 4 R1/84R1/8722.216.210
MA 4 R1/44R1/49.525.716.214
MA 6 M56M53.821.717.712
MA 6 M66M64.522.417.712
MA 6 R1/86R1/8723.917.712
MA 6 R1/46R1/49.526.917.714
MA 6 R3/86R3/810.528.417.717
MA 6 R1/26R1/213.531.917.721
MA 8 R1/88R1/8727.120.914
MA 8 R1/48R1/49.529.620.914
MA 8 R3/88R3/810.531.120.917
MA 8 R1/28R1/213.534.620.921
MA 10 R1/810R1/8729.722.217
MA 10 R1/410R1/49.532.222.217
MA 10 R3/810R3/810.533.222.217
MA 10 R1/210R1/213.536.722.221
MA 12 R1/412R1/49.535.226.321
MA 12 R3/812R3/810.536.226.321
MA 12 R1/212R1/213.539.226.321
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
